Parking Assist Control Module: Locations

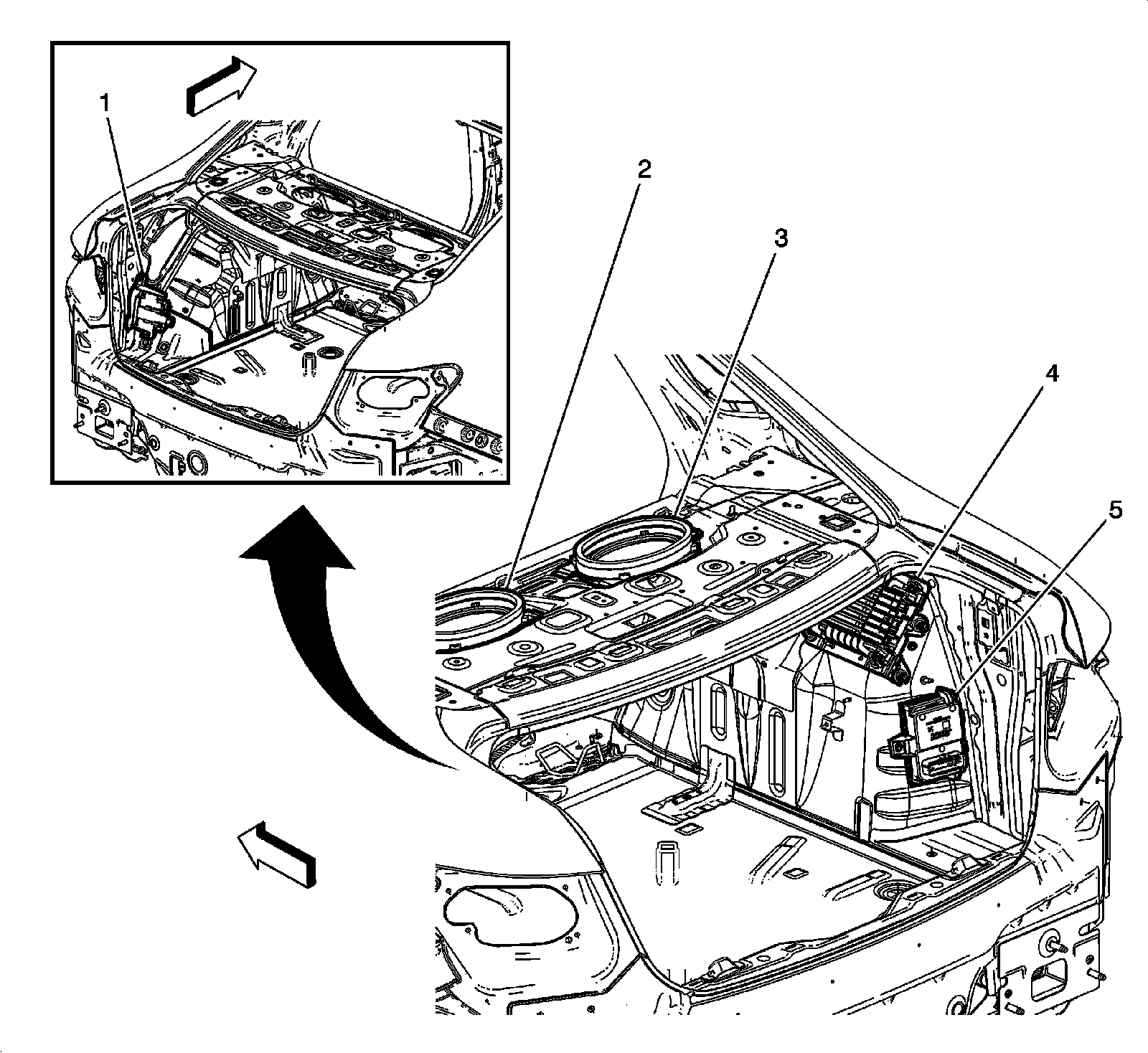

Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment Components





1 - K41R Rear Parking Assist Control Module

2 - P19AJ Speaker - Left Rear Window Shelf

3 - P19AK Speaker - Right Rear Window Shelf

4 - T3 Audio Amplifier

5 - K27 Fuel Pump Control Module
