Data Communications System Wiring Schematics
>>
High Speed Bus 1
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
High Speed Bus 1

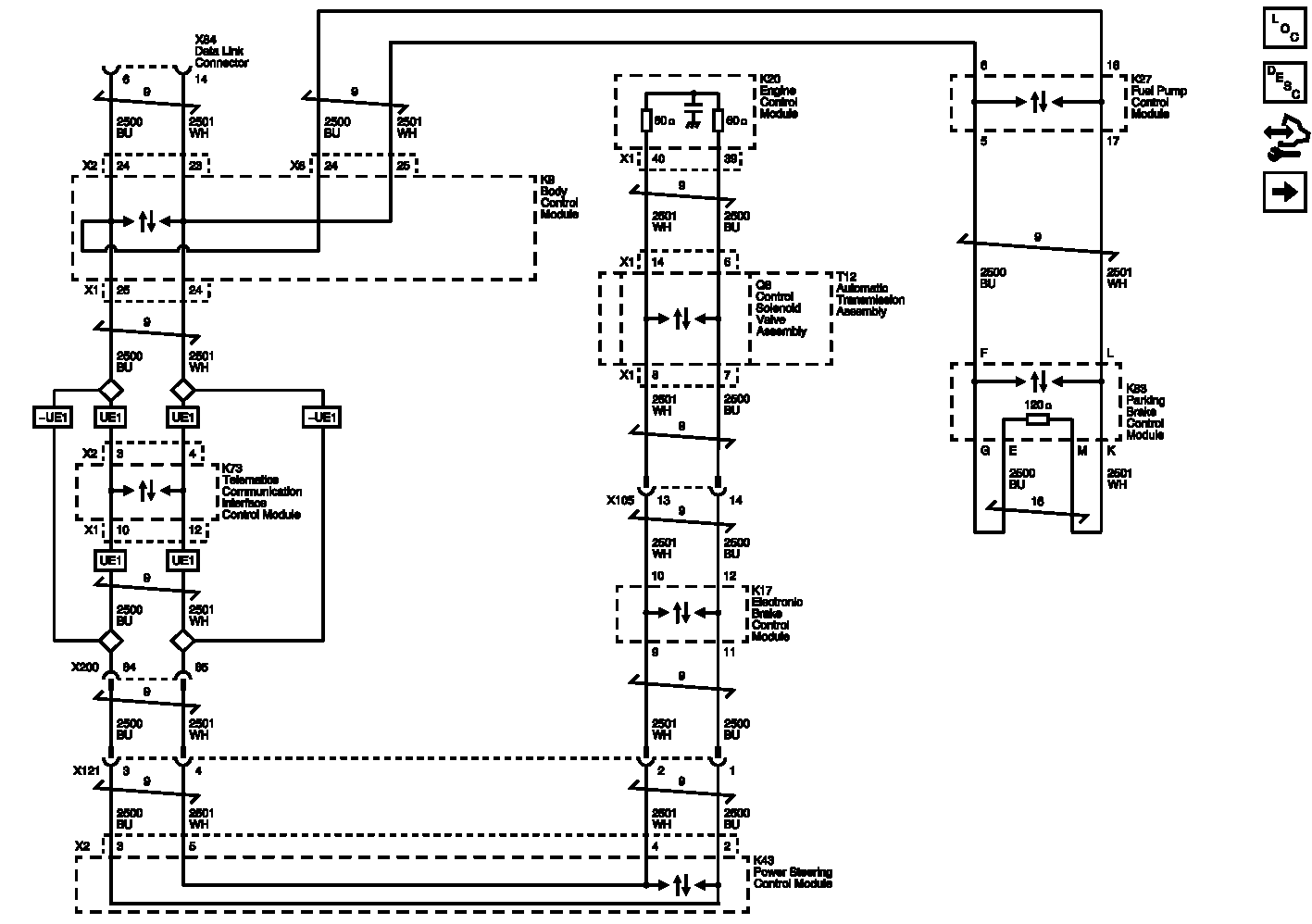

Fig 1: High Speed Bus 1 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
