Front Doors (A55)

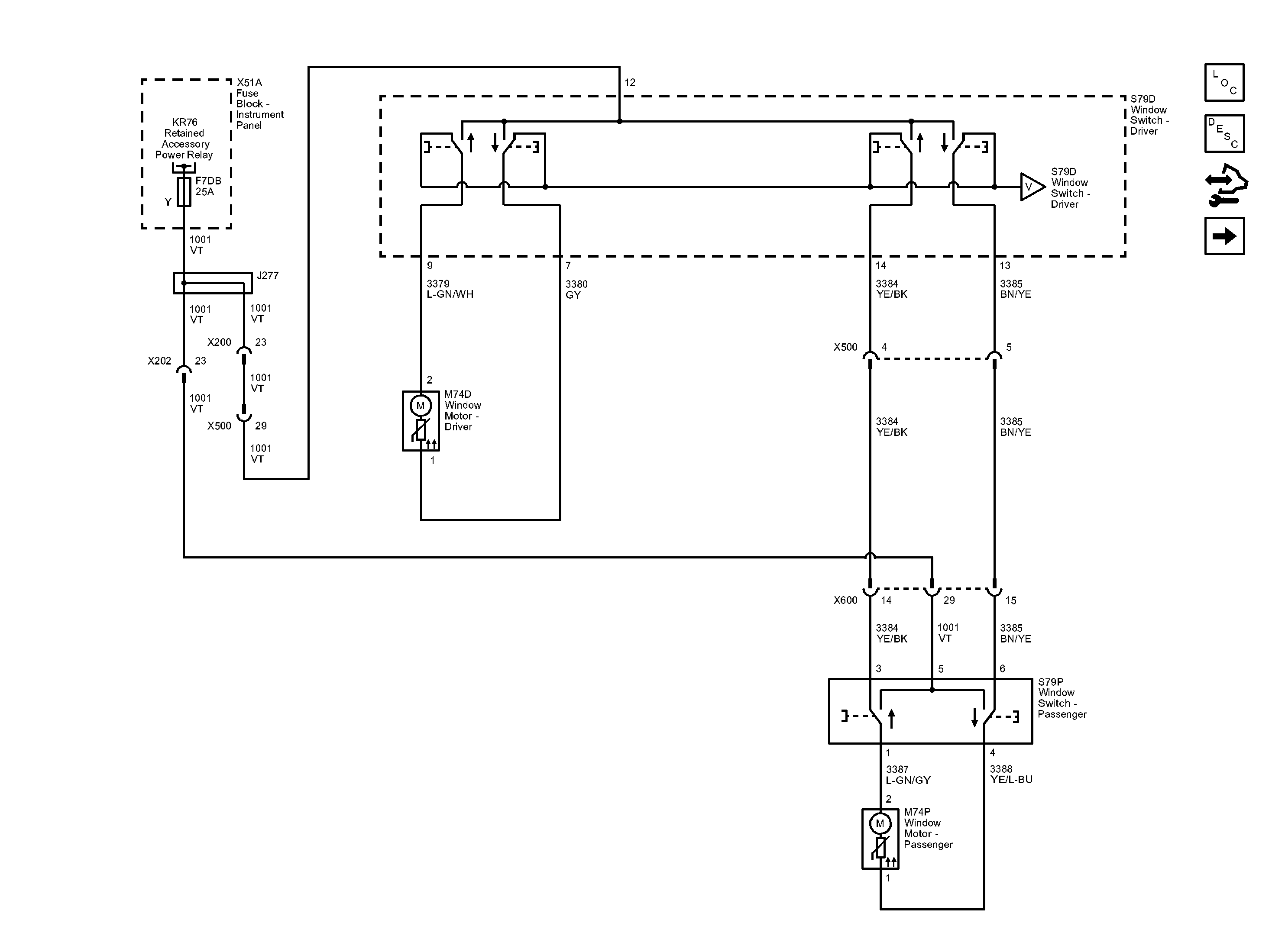

Fig 1: Front Doors (A55) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
