Module Power, Ground, Serial Data And MIL

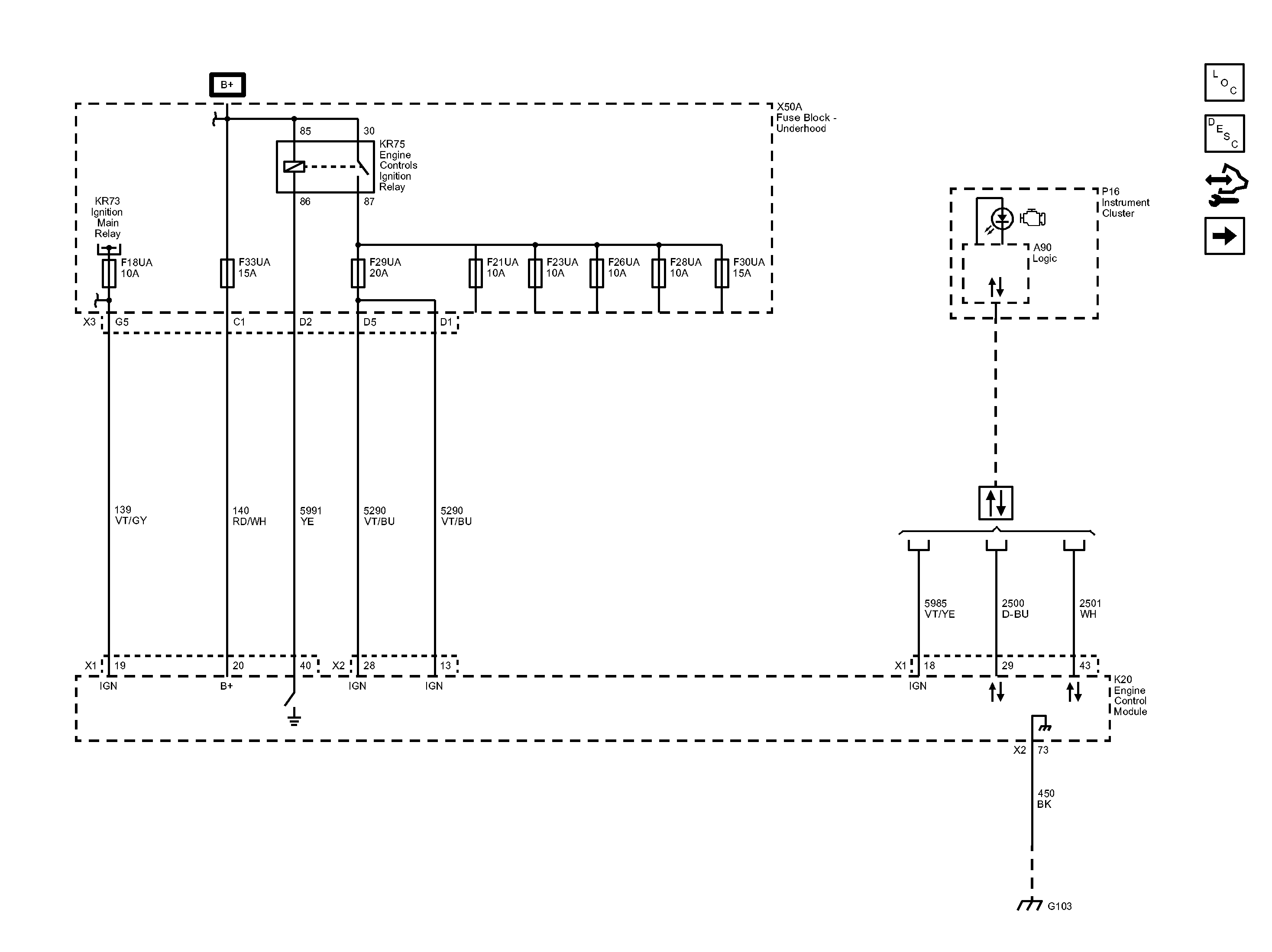

Fig 1: Module Power, Ground, Serial Data And MIL Wiring Schematic
GM2884778Courtesy of GENERAL MOTORS COMPANY
