Front Windows (AXG With AEQ)

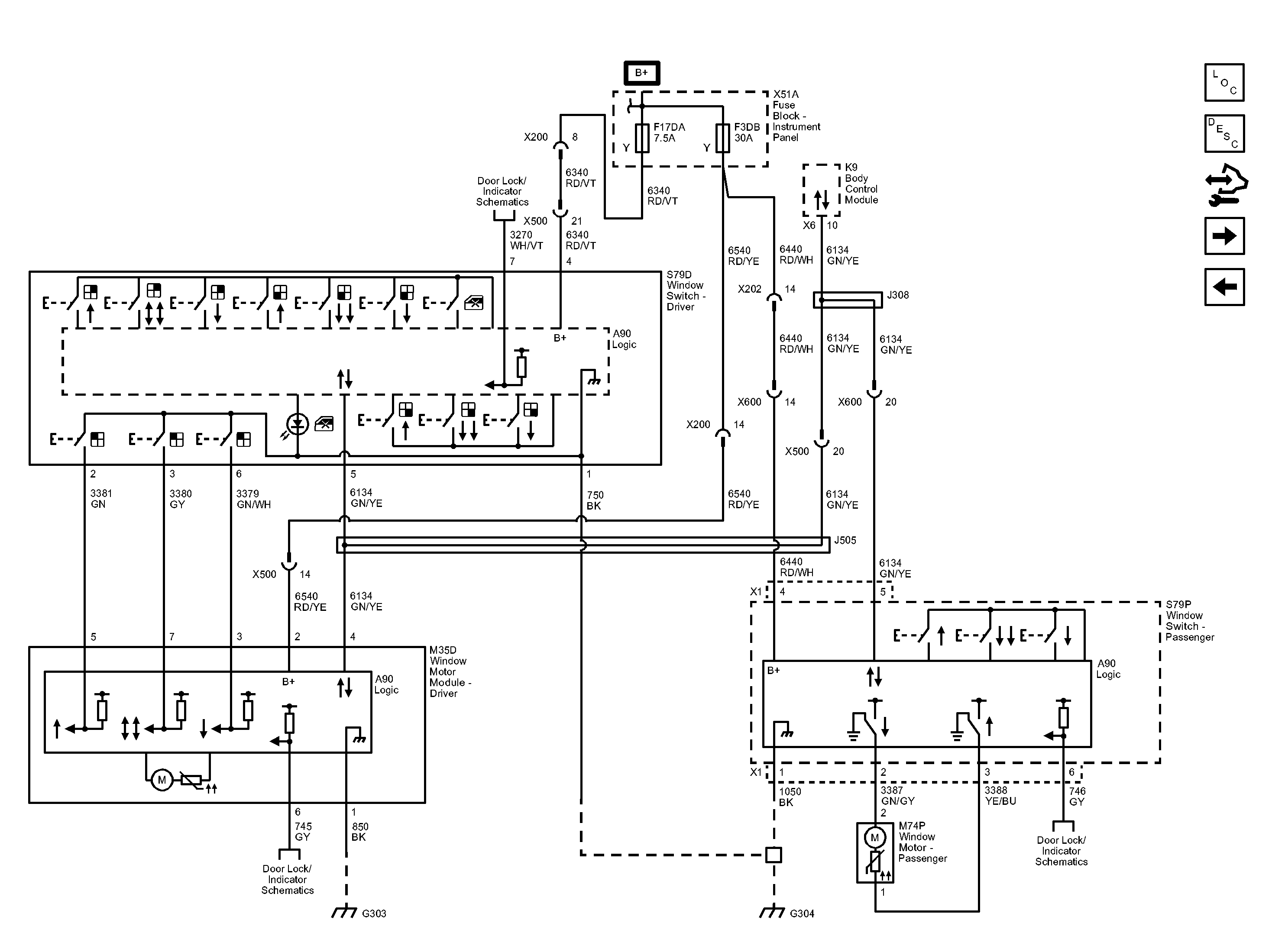

Fig 1: Front Windows (AXG With AEQ) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
