Windshield Washer Solvent Container Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

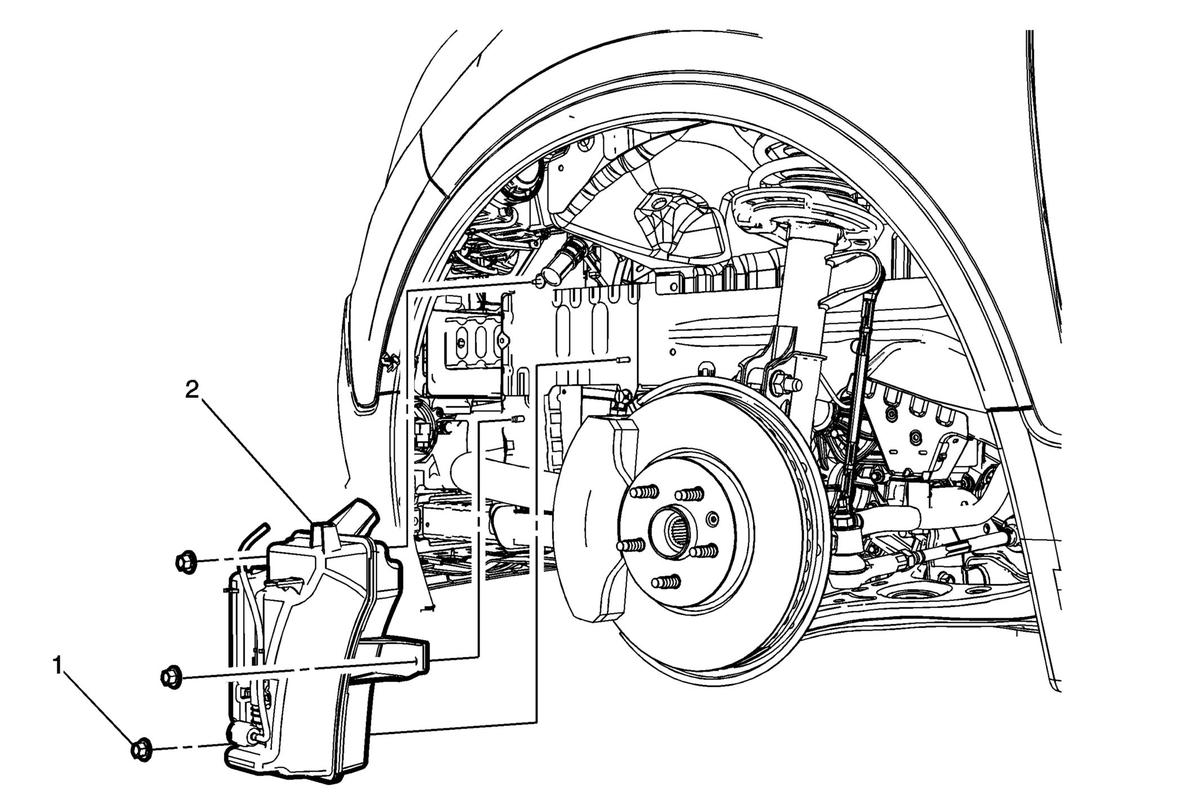

| Callout |
Component Name |
|
Preliminary Procedure
- Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
- Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Trax)Front Wheelhouse Liner Replacement (Encore)
.
- Disconnect the windshield washer pump hose.
|
| 1 |
Windshield Washer Solvent Container Nut (Qty: 3)
Tighten
5 N.m (44 lb in) |
| 2 |
Windshield Washer Solvent Container Procedure
- Remove washer solvent container from the front compartment panel assembly and lower the washer container from the wheelhouse compartment.
- Drain the windshield washer solvent into a suitable clean container.
- Transfer the component parts as needed.
- Install a new grommet prior to installing the windshield washer pump into the washer solvent container.
- Fill the windshield washer solvent container after installation.
|
