Backup Lamp Bulb Replacement (Encore)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

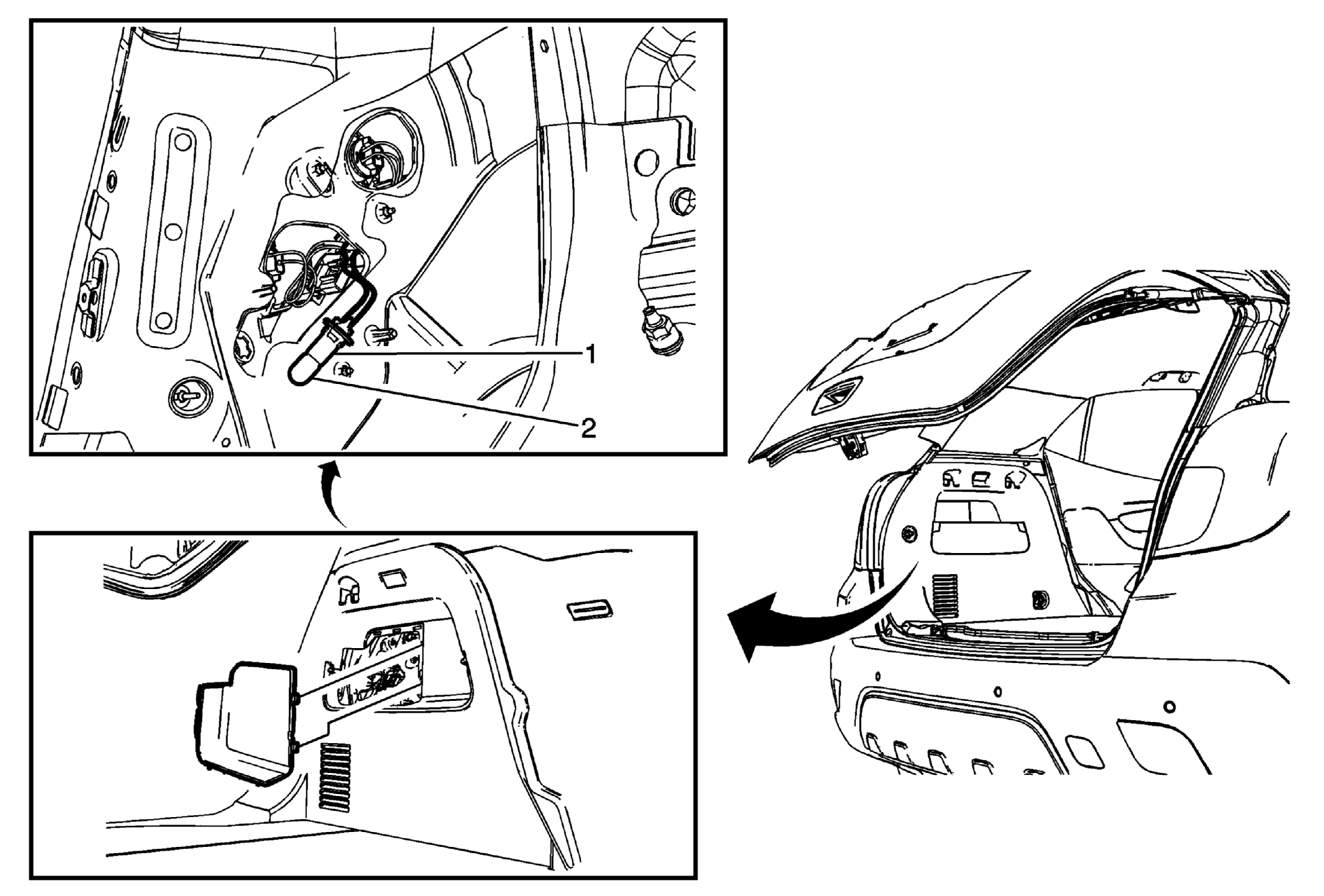

Fig 1: Backup Lamp Bulb (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter stowage pocket door. Refer to, Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) . Open the tail light access cover.
1	Backup Lamp Socket Procedure Rotate the backup lamp socket counter-clockwise and remove the backup lamp socket from the tail lamp housing.
2	Backup Lamp Bulb Procedure Hold the backup lamp socket, pull the backup lamp bulb straight from the backup lamp socket.

Callout

Component Name

Preliminary Procedure

Remove the quarter stowage pocket door. Refer to, Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) .
Open the tail light access cover.

Backup Lamp Socket
Procedure
Rotate the backup lamp socket counter-clockwise and remove the backup lamp socket from the tail lamp housing.

Backup Lamp Bulb
Procedure
Hold the backup lamp socket, pull the backup lamp bulb straight from the backup lamp socket.
