Rear Seat Belt Buckle Replacement

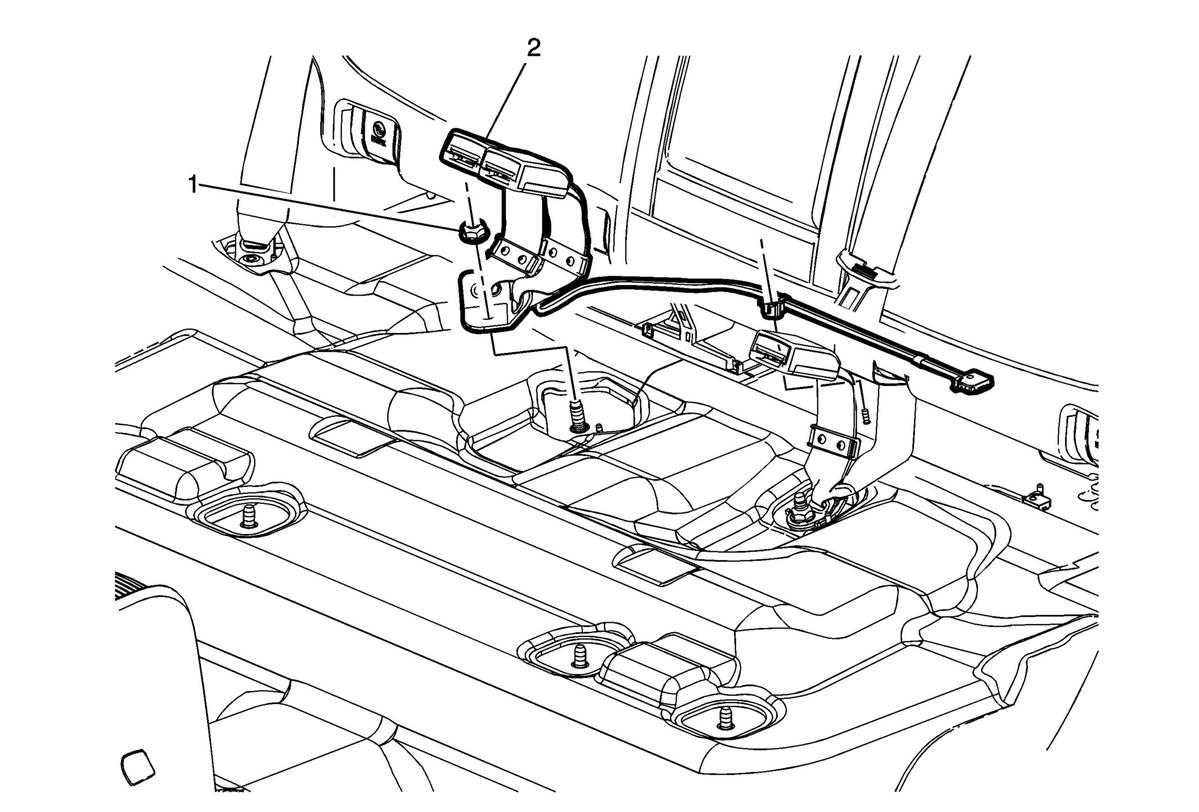

Fig 1: Rear Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Rear Seat Belt Buckle Nut CAUTION: Refer to Fastener Caution . Procedure Pull on the lower release straps to disengage the seat cushion so it can be folded into the up position to gain access to the nut. Tighten 45 (33 lb ft)
2	Rear Seat Belt Buckle Assembly Procedure Disconnect the electrical.
