Driver Switch And Indicator

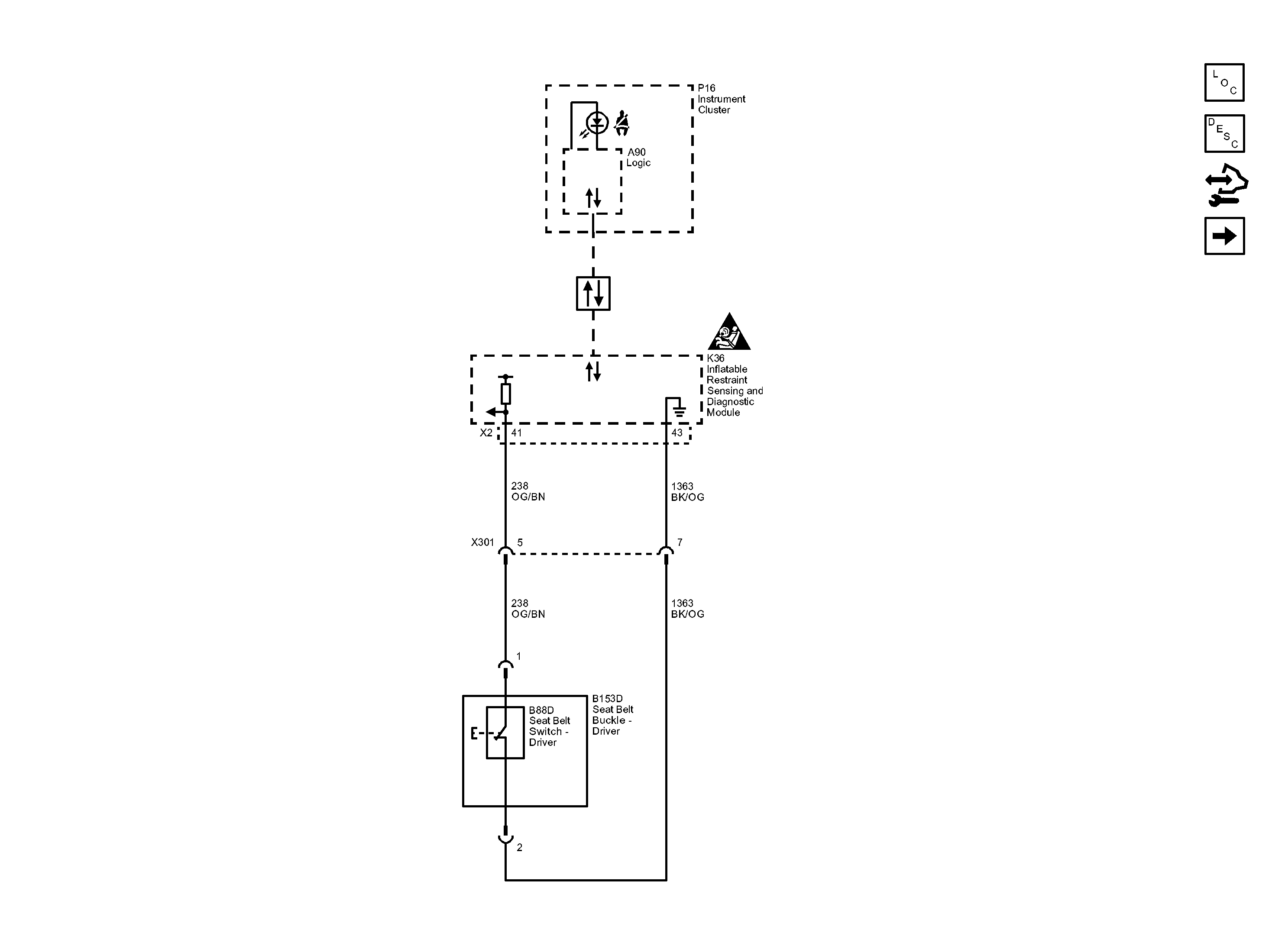

Fig 1: Driver Switch And Indicator Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
