Left Rear of Vehicle Components

Luggage Compartment/Rear of Vehicle Component Views

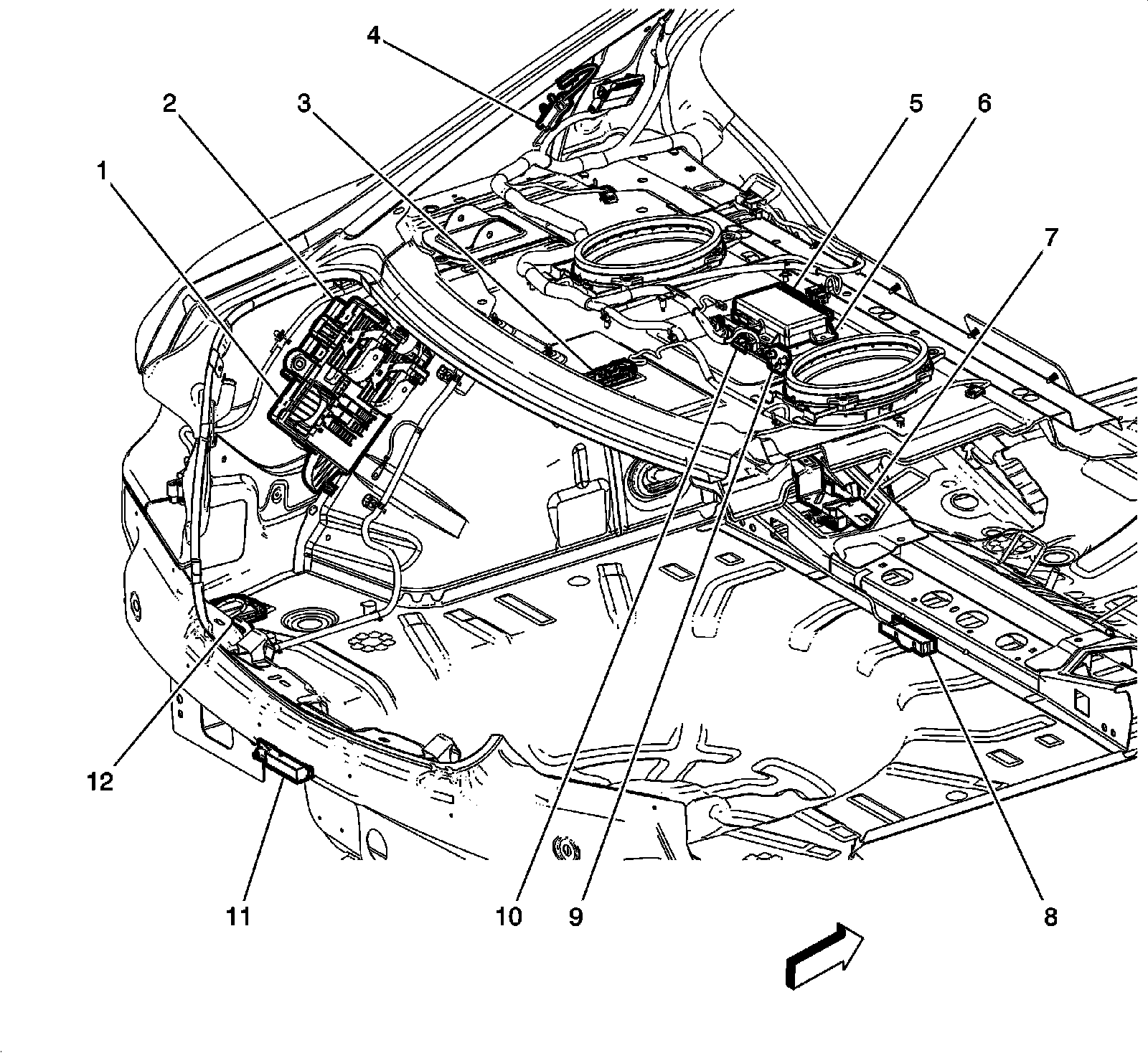

Left Rear of Vehicle Components





1 - X53A Fuse Block - Rear Body

2 - K19 Suspension Control Module (F45)

3 - E8S Rear Compartment Courtesy Lamp

4 - R14L Rear Window Defogger Noise Filter - Left

5 - T15 Navigation Antenna Signal Splitter (UYS)

6 - C3 Telematics Communication Interface Control Module Battery (UE1)

7 - B162R Vertical Body Acceleration Sensor - Rear (F45)

8 - T10E Keyless Entry Antenna - Rear Compartment (BTM)

9 - T4S Wireless Communication Antenna - Bluetooth (UE1)

10 - K73 Telematics Communication Interface Control Module (UE1)

11 - T10G Keyless Entry Antenna - Rear Fascia (ATH)

12 - K41R Rear Parking Assist Control Module (UD7)
