Refrigerant Pressure Sensor / Switch: Locations

Front of Vehicle/Engine Compartment Component Views

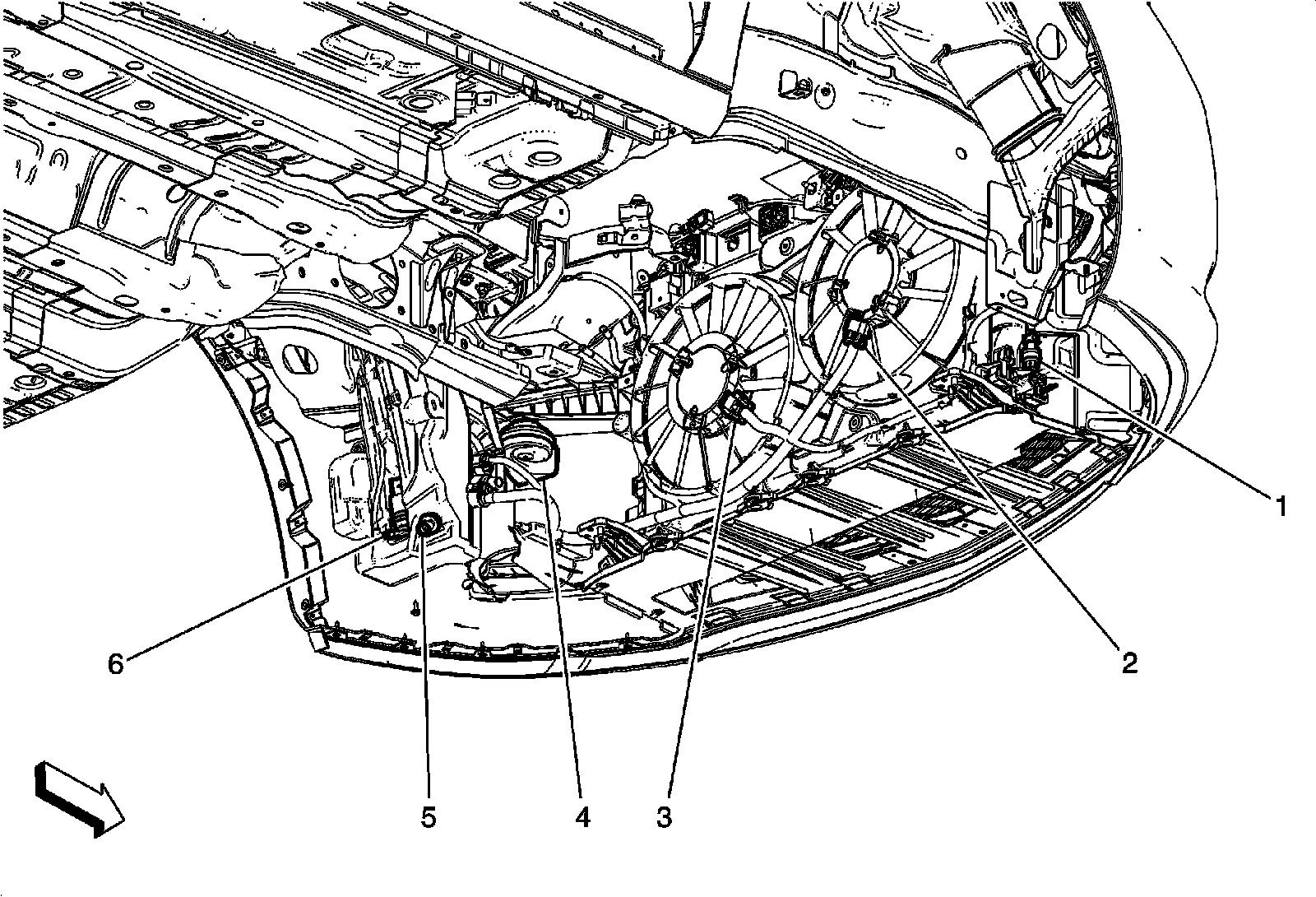

Engine Compartment Components - Rear of Radiator





1 - B1 A/C Refrigerant Pressure Sensor

2 - G10R Cooling Fan Motor - Right

3 - G10L Cooling Fan Motor - Left

4 - P13 Horn Assembly

5 - B118B Windshield Washer Fluid Level Switch

6 - G24 Windshield Washer Pump
