Window Switch - Left Rear




Door Component Views

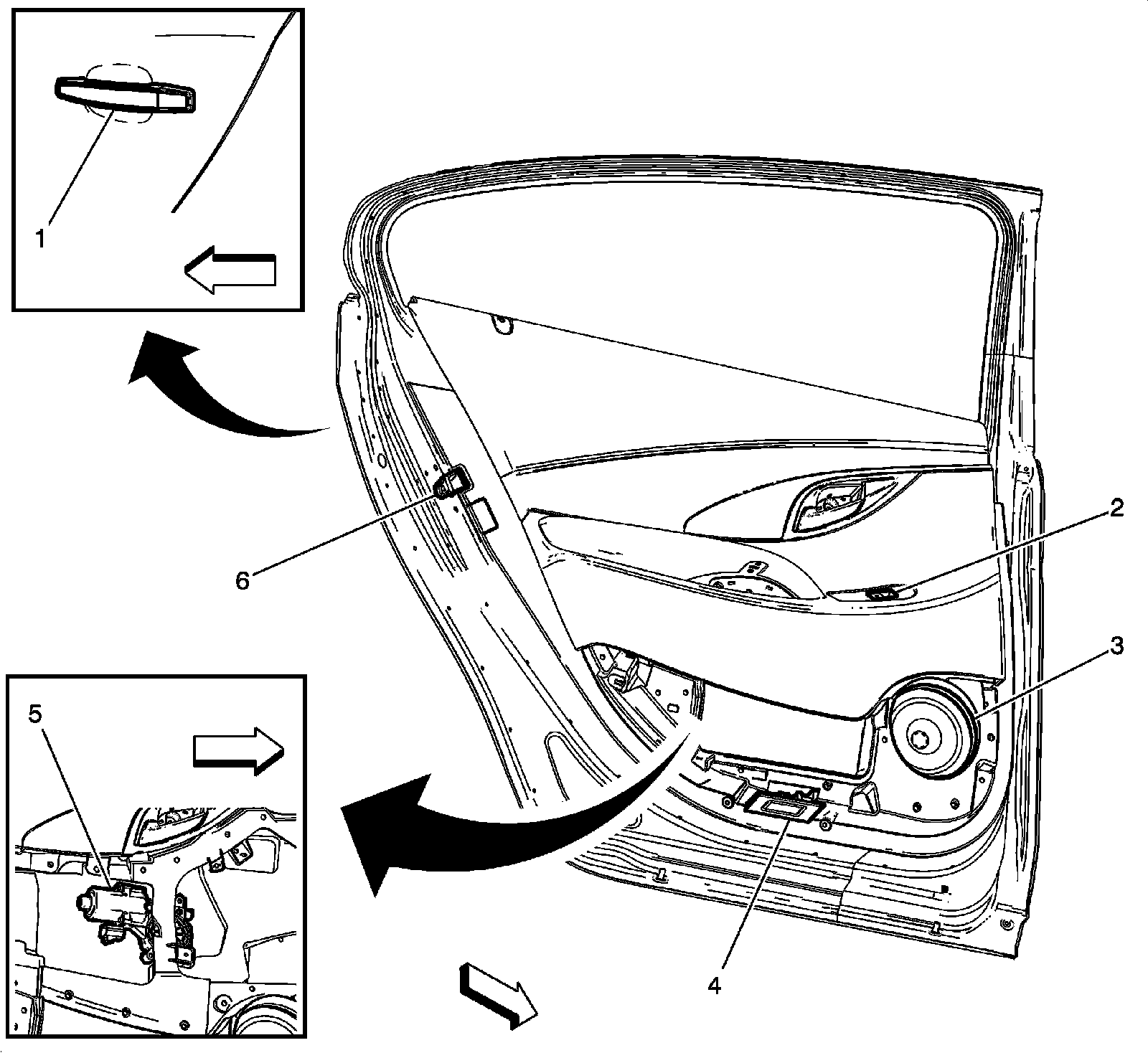

Left Rear Door Components





1 - B27LR Door Handle Switch - Left Rear Exterior (ATH)

2 - S79LR Window Switch - Left Rear

3 - P19AL Speaker - Left Rear Door

4 - E8LR Door Courtesy Lamp - Left Rear

5 - M74LR Window Motor - Left Rear

6 - A23LR Door Latch Assembly - Left Rear
