Defogger Schematics: Defogger

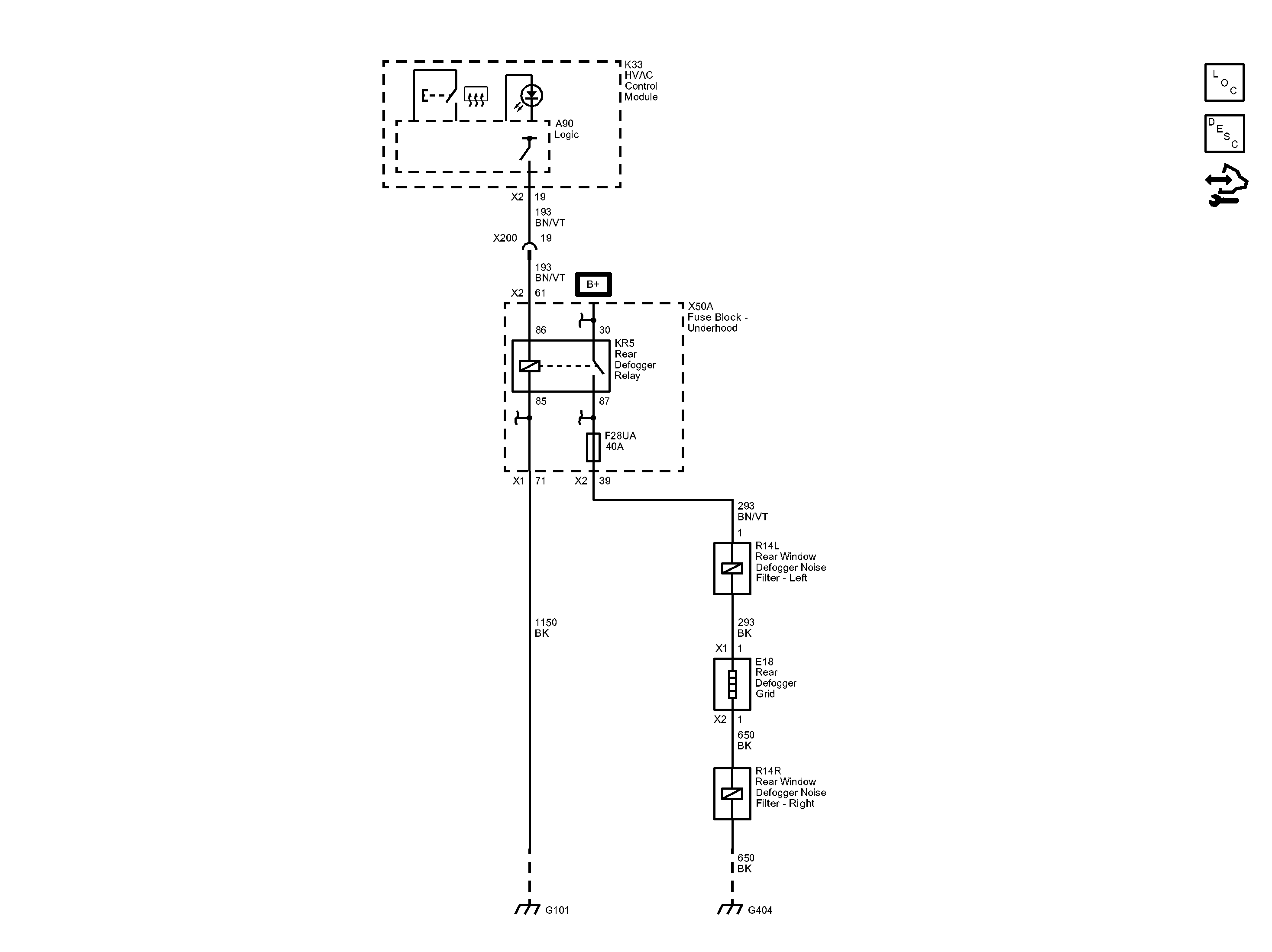

Fig 1: Defogger Wiring Schematic

GM2809374

Courtesy of GENERAL MOTORS COMPANY
