Low Speed GMLAN (except CZ2)

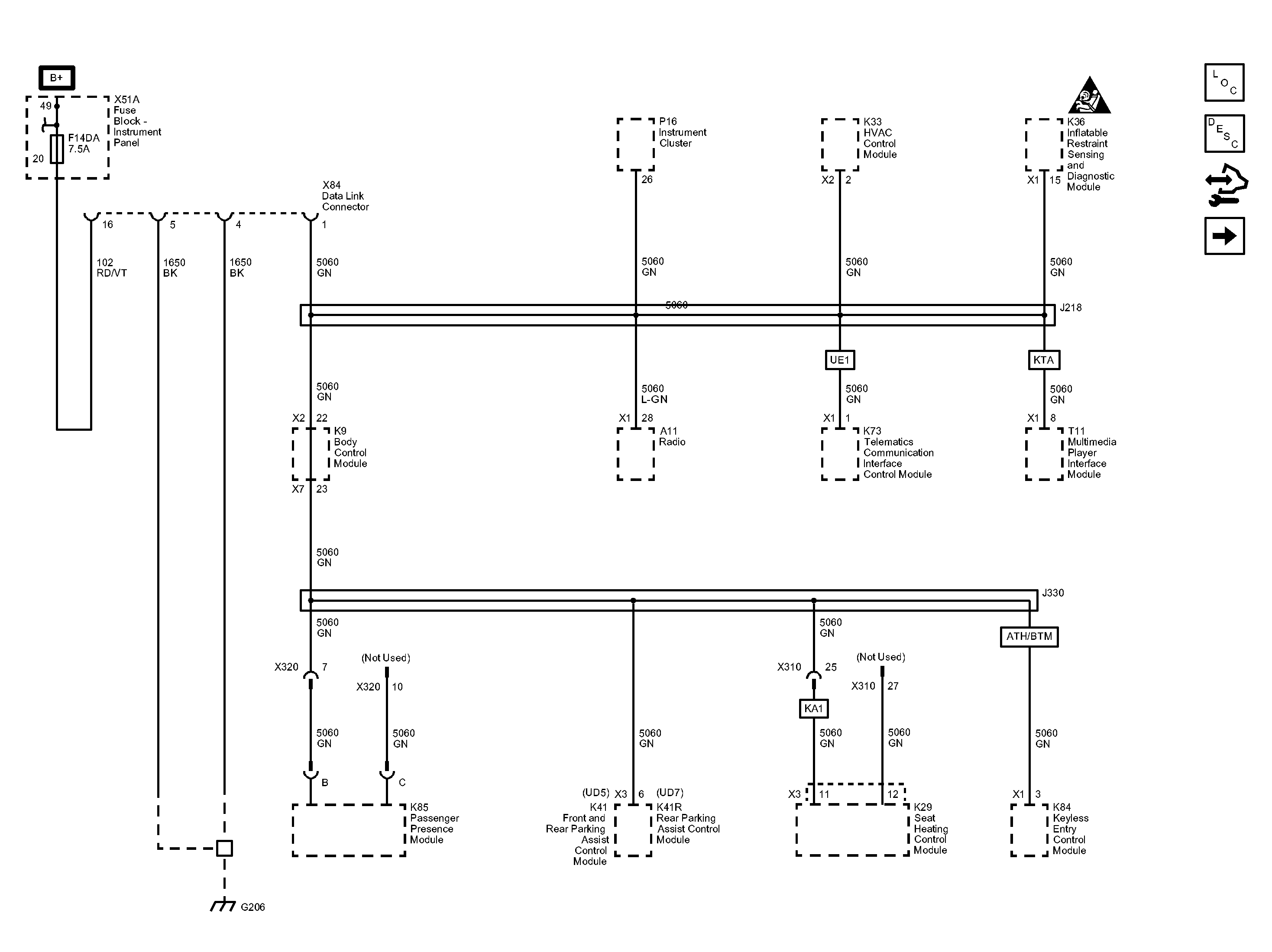

Fig 1: Low Speed GMLAN Wiring Schematic (except CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
