Power Steering Pump Replacement

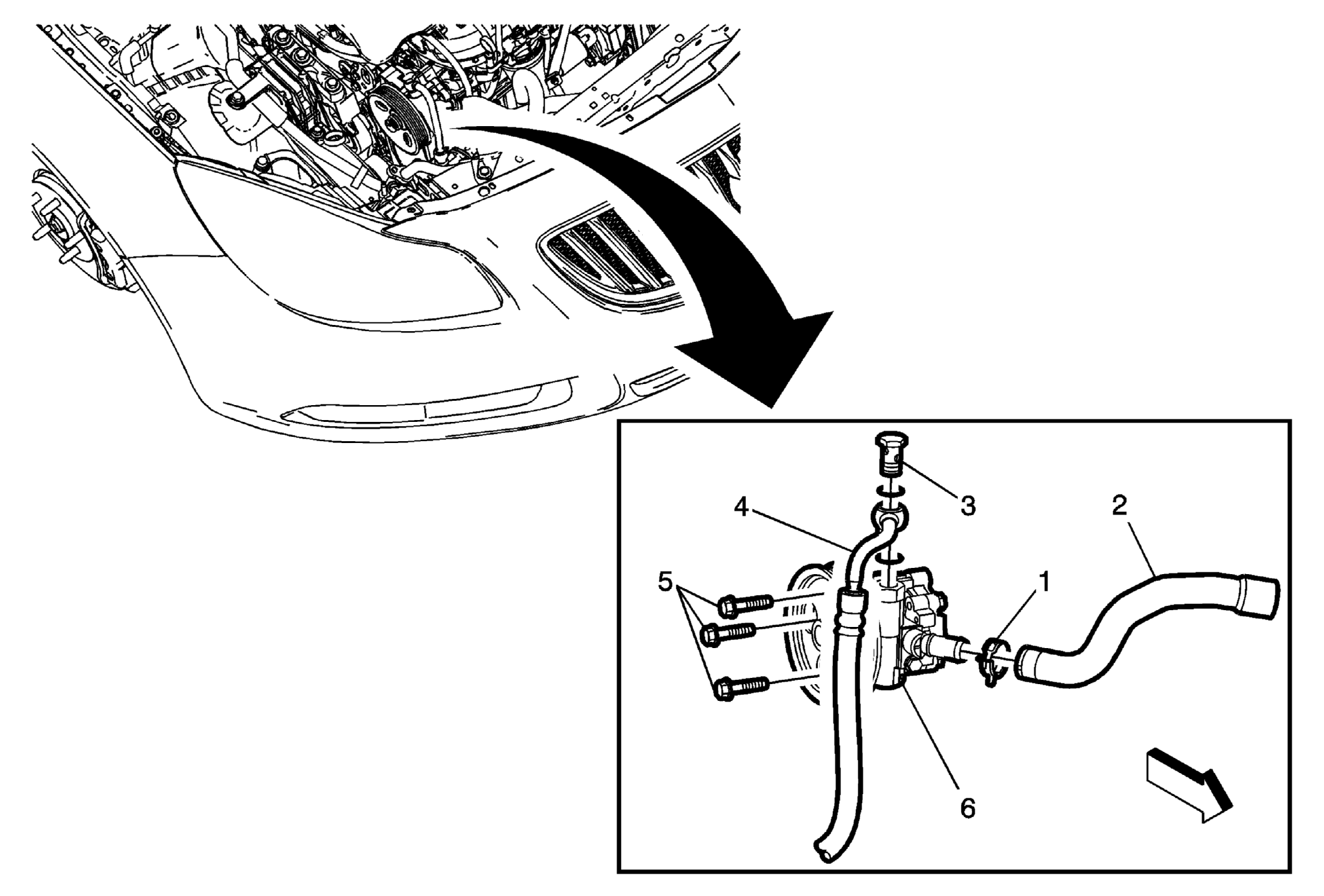

Courtesy of GENERAL MOTORS COMPANY Power Steering Pump Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Cover the generator in order to prevent power steering fluid from dripping on the generator.
- Place drain pans under the vehicle.
- Remove as much power steering fluid from the power steering fluid reservoir as possible.
- Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement
.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the right front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement
.
- Disconnect the drive belt from the power steering pump pulley only. Refer to Drive Belt Replacement
.
|
| 1 |
Power Steering Fluid Reservoir Outlet Hose Clamp |
| 2 |
Power Steering Fluid Reservoir Outlet Hose
Procedure
Disconnect the power steering fluid reservoir outlet hose from the power steering pump. |
| 3 |
Power Steering Gear Inlet Hose Fitting Bolt
Procedure
Install 2 NEW power steering gear inlet hose fitting seals.
Tighten
50 N.m (37 lb ft) |
| 4 |
Power Steering Gear Inlet Hose
Procedure
Disconnect the power steering gear inlet hose from the power steering pump. |
| 5 |
Power Steering Pump Bolt (Qty: 3)
Tighten
22 N.m (16 lb ft) |
| 6 |
Power Steering Pump Procedure
- Transfer the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement .
- Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
- Clean any excess power steering fluid from the vehicle.
- Remove the drain pans.
- Remove the cover from the generator.
|
