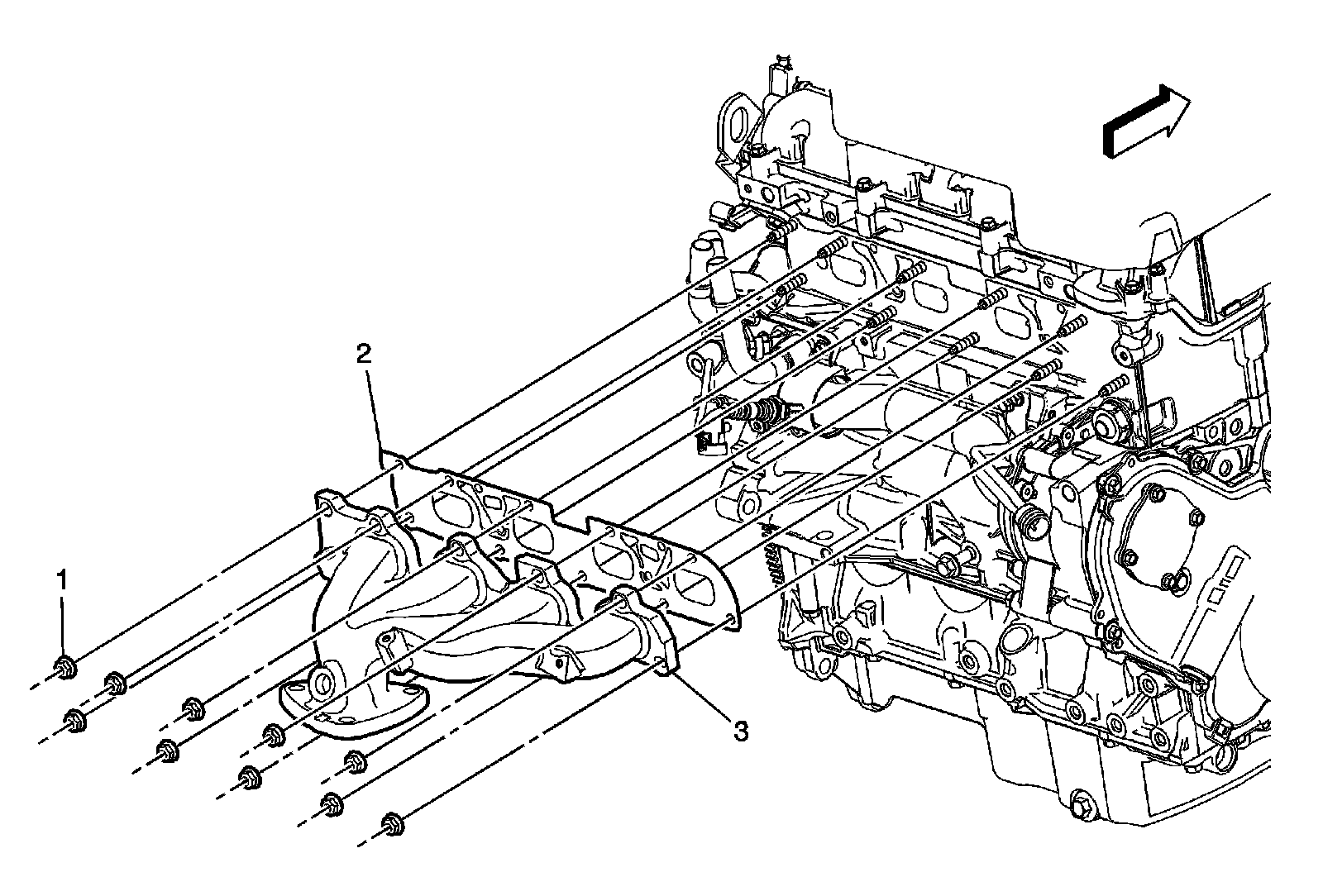

Exhaust Manifold
Exhaust Manifold
Heat Shield
Bolt
9Nm 80 lb in
Exhaust Manifold
to Cylinder Head Nut 2 passes
14 Nm 124 lb in
Exhaust Manifold
to Cylinder Head Stud
15 Nm 11 lb ft
