Front Compartment Insulator Replacement

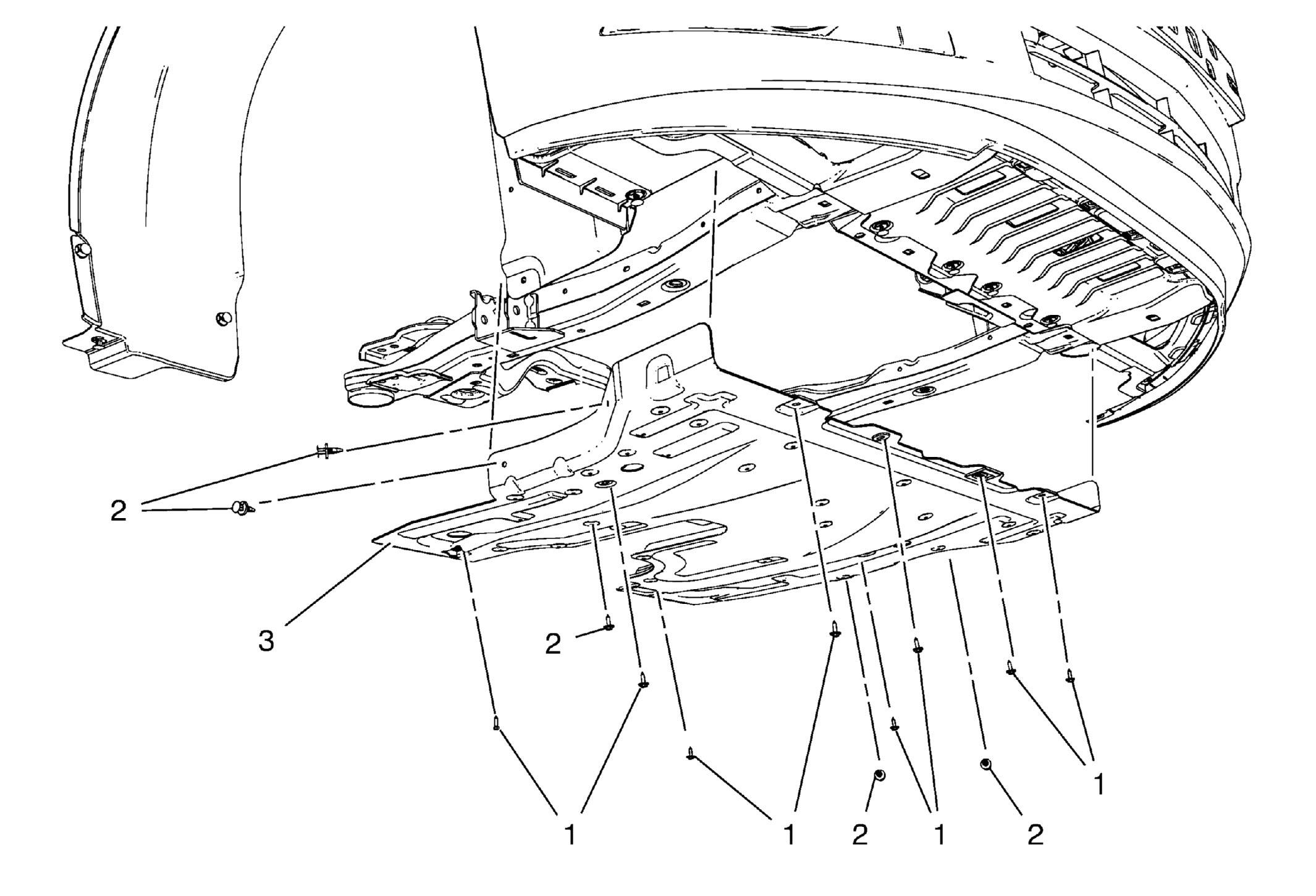

Fig 1: Identifying Front Compartment Insulator, Screws And Plastic Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Compartment Insulator Screw (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 3 (27 lb in)
2	Front Compartment Insulator Plastic Retainer (Qty: 6)
3	Front Compartment Insulator
