Front Compartment Splash Shield Replacement

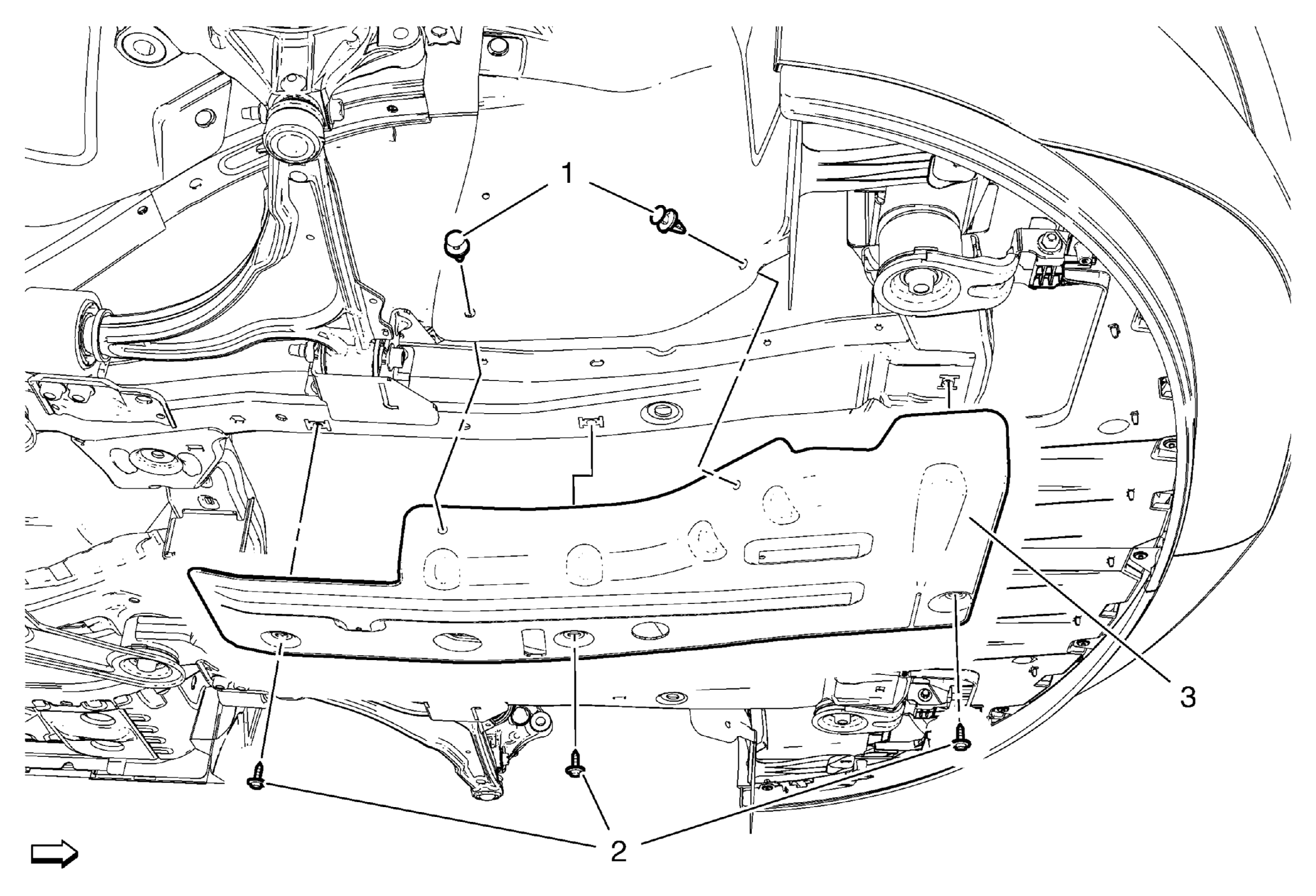

Fig 1: Front Compartment Splash Shield & Fasteners
GM2192209Courtesy of GENERAL MOTORS COMPANY
Front Compartment Splash Shield Replacement

Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Front Compartment Splash Shield Retainer (Qty: 2)
2 Front Compartment Splash Shield Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .
3 Front Compartment Splash Shield
