Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Brake system does not use a brake switch, stoplight switch or brakelight switch. System uses a Brake Pedal Position Sensor to control these functions.

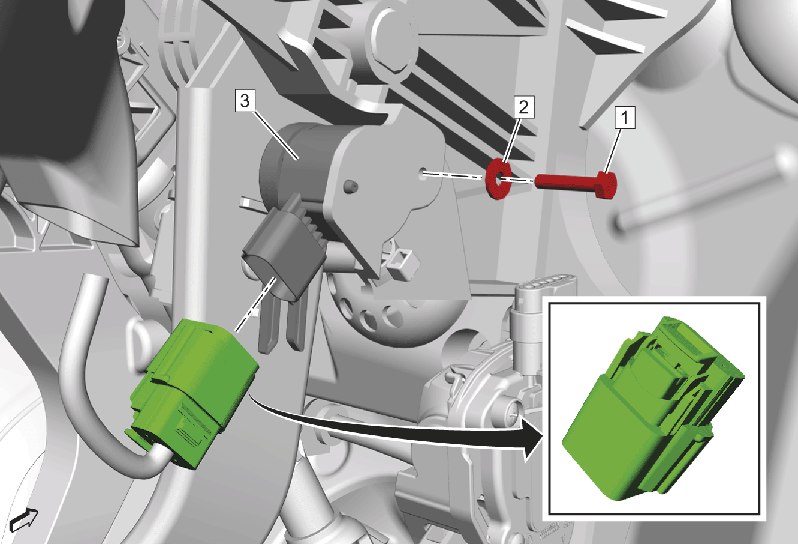

Fig 1: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Position Sensor Replacement

Callout	Component Name
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution .
2	Brake Pedal Position Sensor Washer
3	Brake Pedal Position Sensor Procedure Disconnect electrical connector. After the installation is complete, learn the brake position sensor sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Brake Pedal Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Brake Pedal Position Sensor Washer

Brake Pedal Position Sensor

Procedure

Disconnect electrical connector.
After the installation is complete, learn the brake position sensor sensor. Refer to Brake Pedal Position Sensor Calibration .
