Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

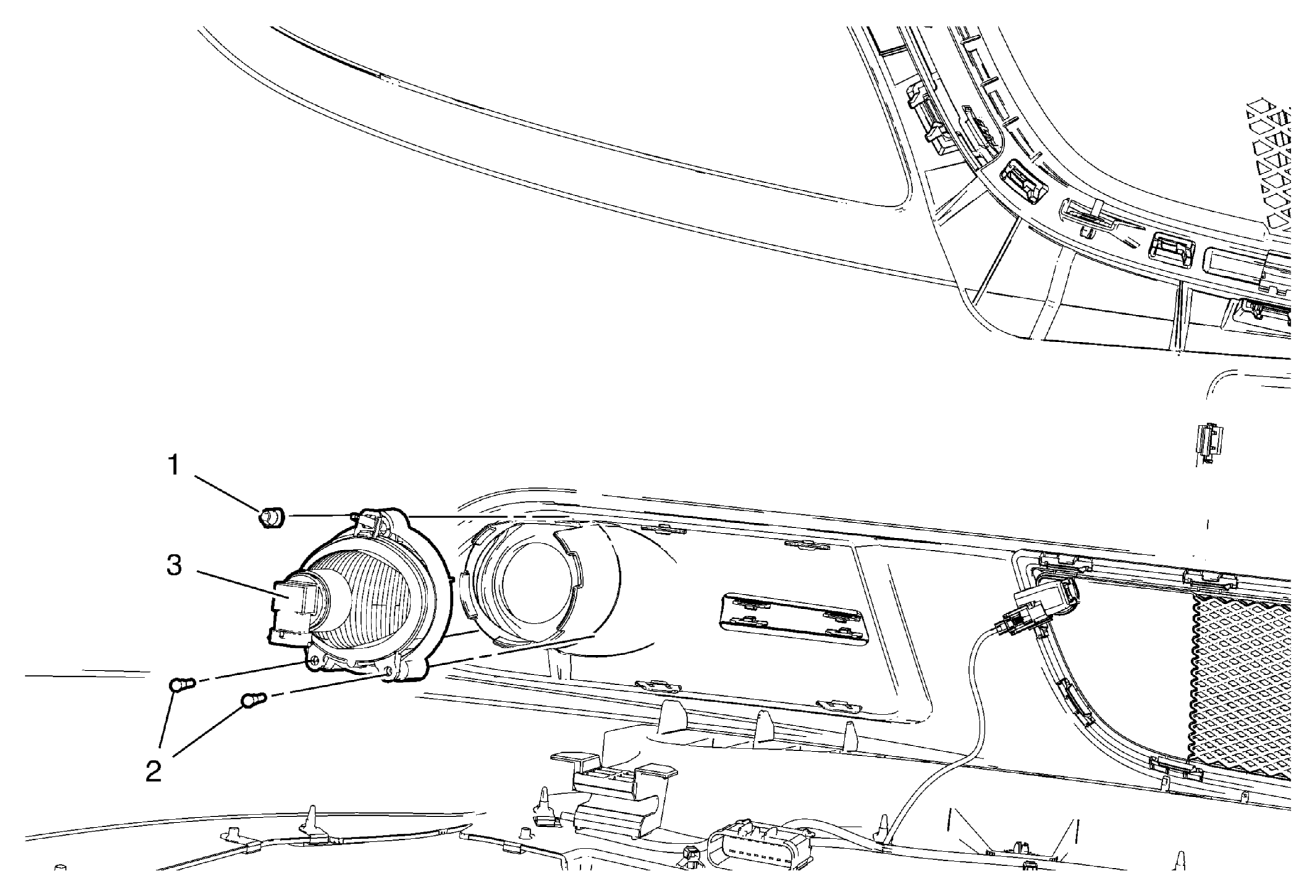

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Fog Lamp Nut CAUTION: Refer to Fastener Caution .
2	Front Fog Lamp Bolt (Qty: 2)
3	Front Fog Lamp Procedure Disconnect electrical connector. Replace the bulb as needed.
