M75 Windshield Wiper Motor

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

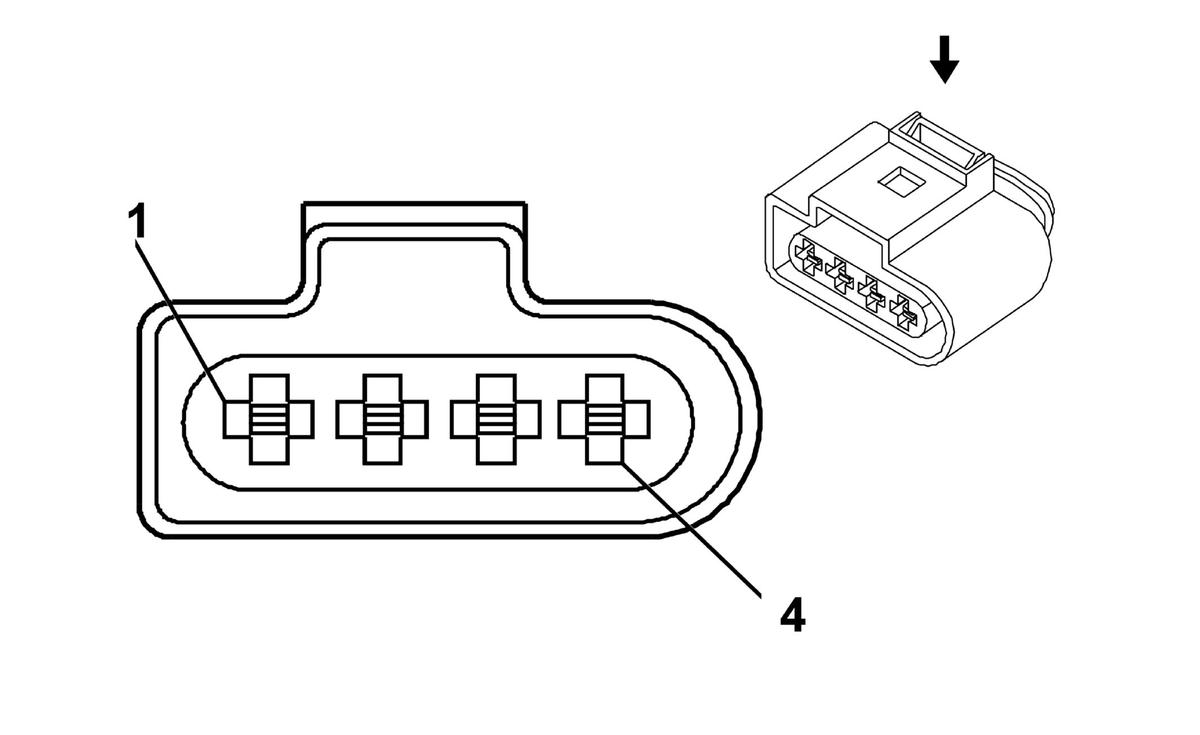

GM2039628
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 42122100
  • Service Connector: Pending
  • Description: 4-Way F 2. 8 Junior Power Timer Series, Sealed (BK)
 Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-36
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: Pins 3, 4 - 4-964286-1/16
  • Terminal/Tray: Pins 1, 2 - 4-964273-1/15
  • Core/Insulation Crimp: Pins 1, 2 - C/5
  • Core/Insulation Crimp: Pins 3, 4 - E/1
M75 Windshield Wiper Motor

Pin Size Color Circuit Function Option
1 2.5 RD/YE 3740 Battery Positive Voltage -
2 2.5 BK 1150 Ground -
3 0.5 GY 91 Windshield Wiper Motor Relay Coil Supply Voltage -
4 0.5 GN/BN 6132 Linear Interconnect Network Bus 1 -
