A24D Door Handle Assembly - Driver Exterior (ATH)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

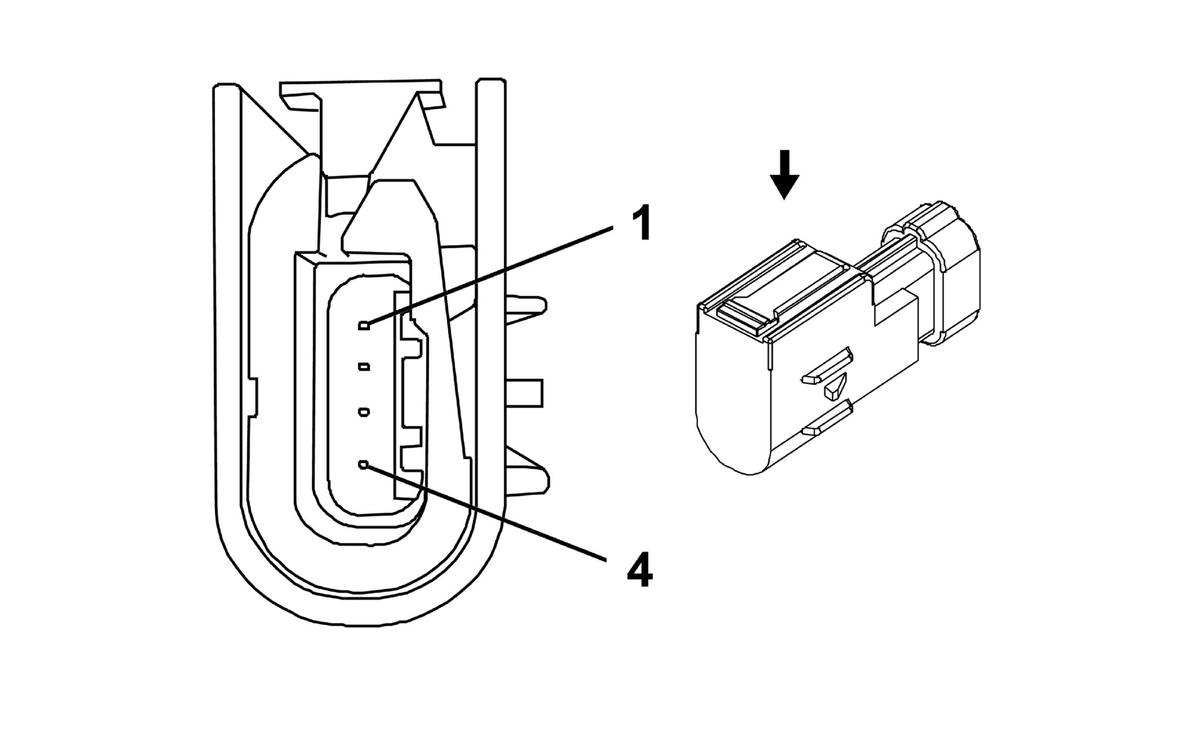

GM2179794
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: SACWSB-04-K
  • Service Connector: 13578576
  • Description: 4-Way M 0.64 Series, Sealed (BK)
 Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13578576
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-65B (L-BU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
A24D Door Handle Assembly - Driver Exterior (ATH)

Pin Size Color Circuit Function Option
1 0.5 VT 3560 Passive Entry Driver Door Antenna Signal Hi -
2 0.5 VT/GY 3561 Passive Entry Driver Door Antenna Signal Lo -
3 0.5 GN/WH 6655 Driver Door Unlatch Switch Signal -
4 0.5 BK 1550 Ground -
