Front Bulkhead Lower Cover Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the clips and screws, then remove the front bulkhead lower cover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

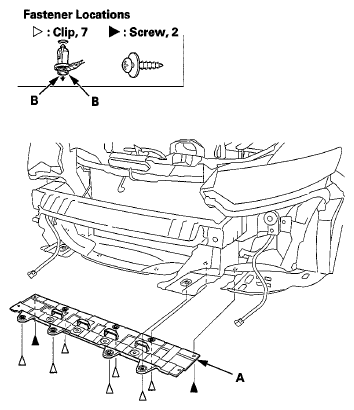

Fig 1: Identifying Front Bulkhead Lower Cover And Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front bulkhead lower cover in the reverse order of removal, and note these items.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
