Front Bumper Air Guide Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the bolt and clips, then remove the front bumper air guide (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

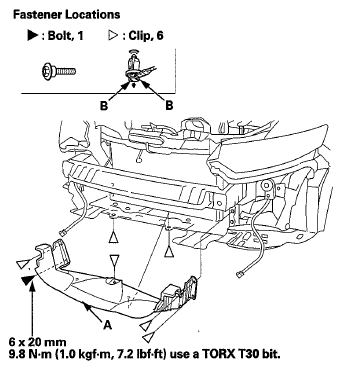

Fig 1: Front Bumper Air Guide With Torque Specifications And Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front bumper air guide in the reverse order of removal, and note these items.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
