Steering Wheel Replacement

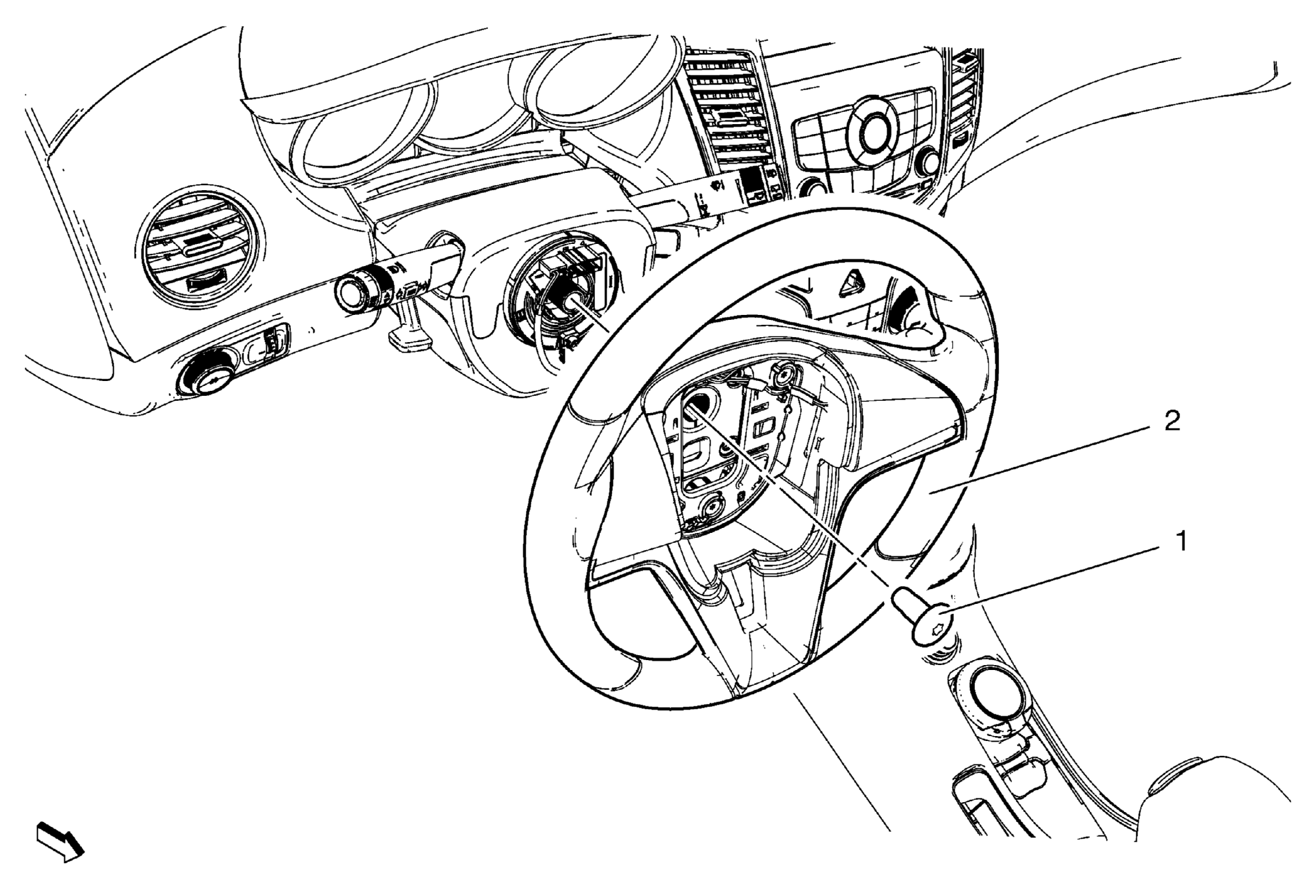

Fig 1: View Of Steering Wheel And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Prelimary Procedure Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Procedure Clean thread of the bolt. Apply locking compound to the thread. Refer to Adhesives, Fluids, Lubricants, and Sealers Tighten 30 N.m (23 lb ft)
2	Steering Wheel Procedure Disconnect electrical connectors as needed. Remove the steering wheel carefully.

Callout

Component Name

Prelimary Procedure
Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Bolt

CAUTION:

Procedure

Clean thread of the bolt.
Apply locking compound to the thread. Refer to Adhesives, Fluids, Lubricants, and Sealers

Tighten
30 N.m (23 lb ft)

Steering Wheel

Procedure
