Radiator Outlet Pipe Replacement

Radiator Outlet Pipe Replacement (2.4L LEA)

Removal Procedure

1. Remove the engine coolant thermostat housing. Refer to Engine Coolant Thermostat Housing Replacement (2.4L LEA) Service and RepairEngine Coolant Thermostat Housing Replacement (2.0L LHU) Service and Repair.

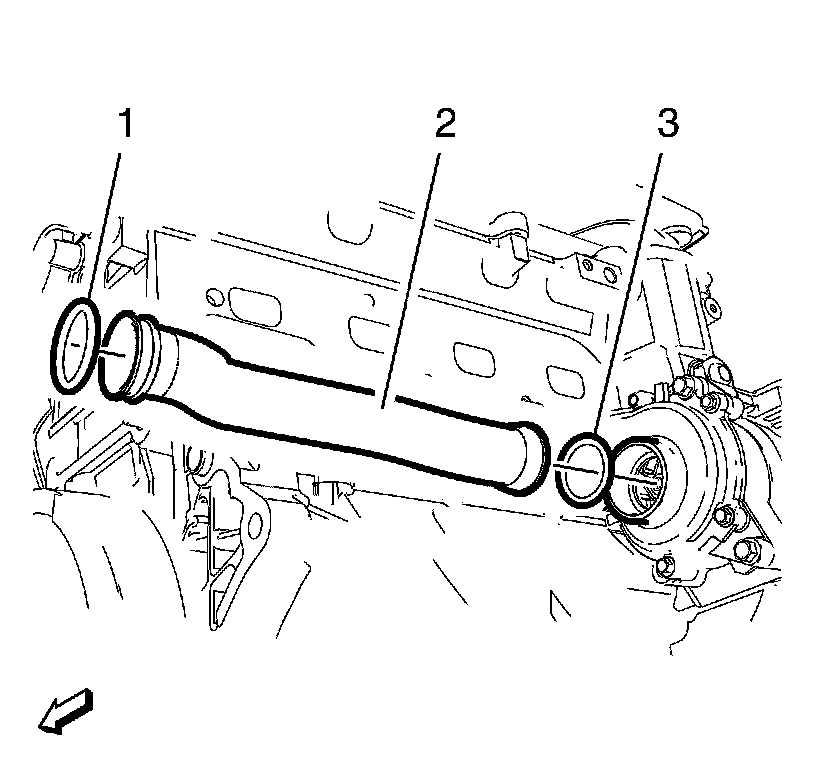

2. Remove the radiator outlet pipe (2) with the seal rings (1, 3).

Installation Procedure





1. Install the radiator outlet pipe (2) with the NEW seal rings (1, 3).

2. Install the engine coolant thermostat housing. Refer to Engine Coolant Thermostat Housing Replacement (2.4L LEA) Service and RepairEngine Coolant Thermostat Housing Replacement (2.0L LHU) Service and Repair.
