Module Power, Ground, Data Communication And Controls
WARNING: This page is about a different car, the 2013 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

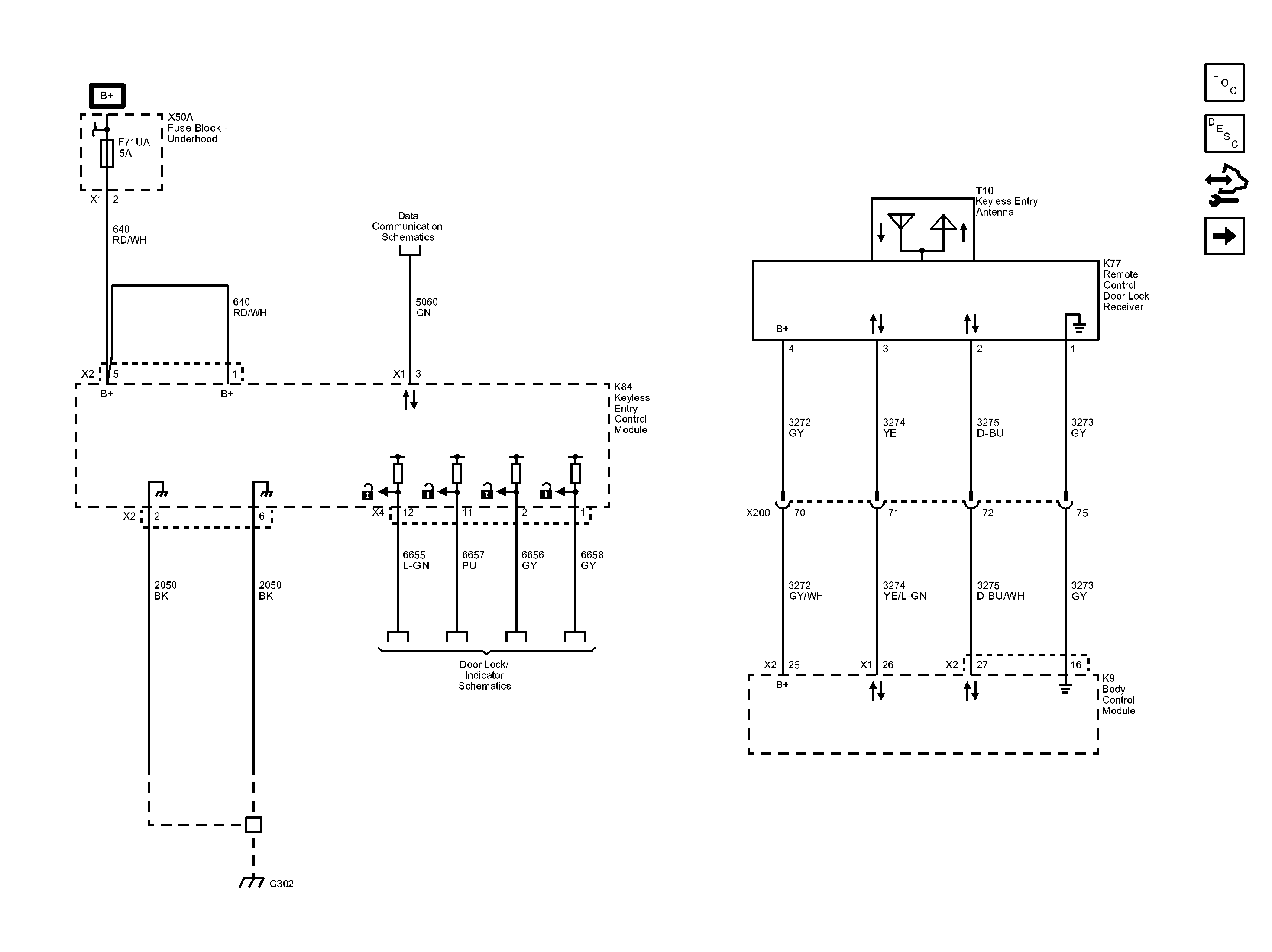

Fig 1: Module Power, Ground, Data Communication, And Controls Wiring Schematic
