Module Power, Ground, Data Communication, and Controls

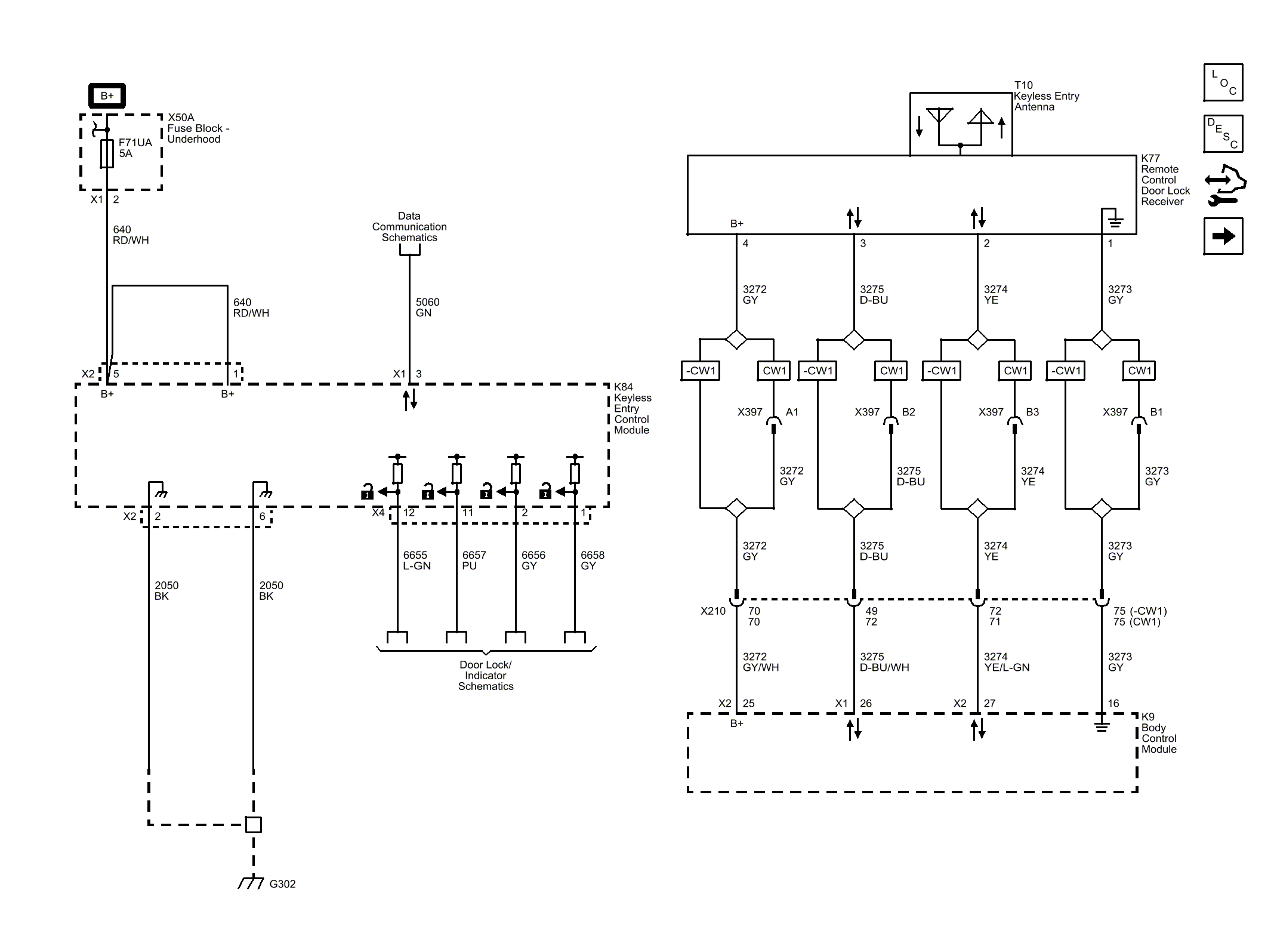

Fig 1: Module Power, Ground, Data Communication, and Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
