Electronic Suspension Control Module Replacement

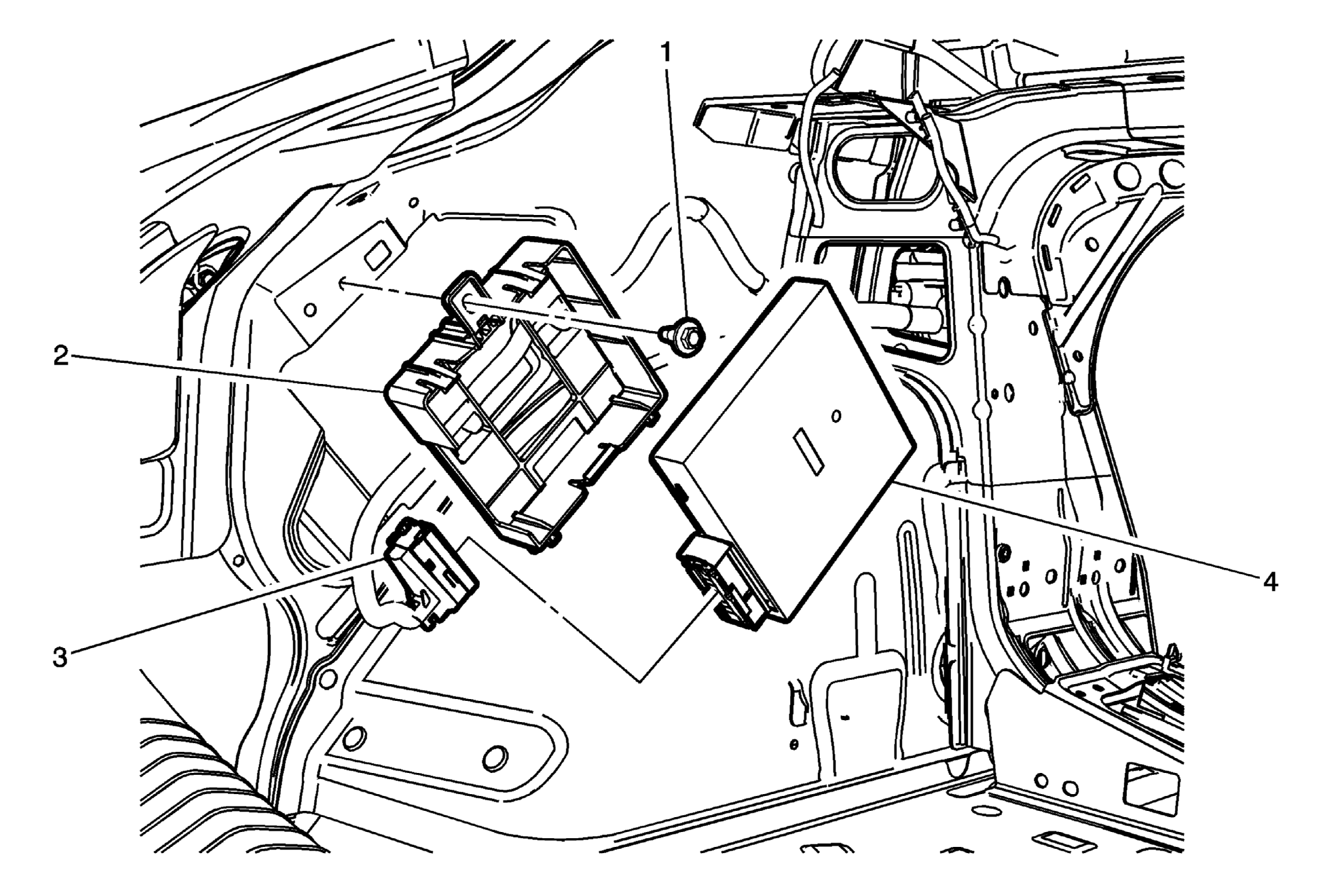

Fig 1: Electronic Suspension Control Module Components

Courtesy of GENERAL MOTORS COMPANY

Electronic Suspension Control Module Replacement

Callout	Component Name
Preliminary Procedure  Remove the left side luggage compartment trim. Refer to Rear Compartment Side Trim Panel Replacement .
1	Electronic Suspension Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 (80 lb in)
2	Electronic Suspension Control Module Bracket
3	Electronic Suspension Control Module Electrical Harness Connector
4	Electronic Suspension Control Module Procedure  For programming and setup information, refer to Control Module References .
