Keyless Entry Wiring Schematics

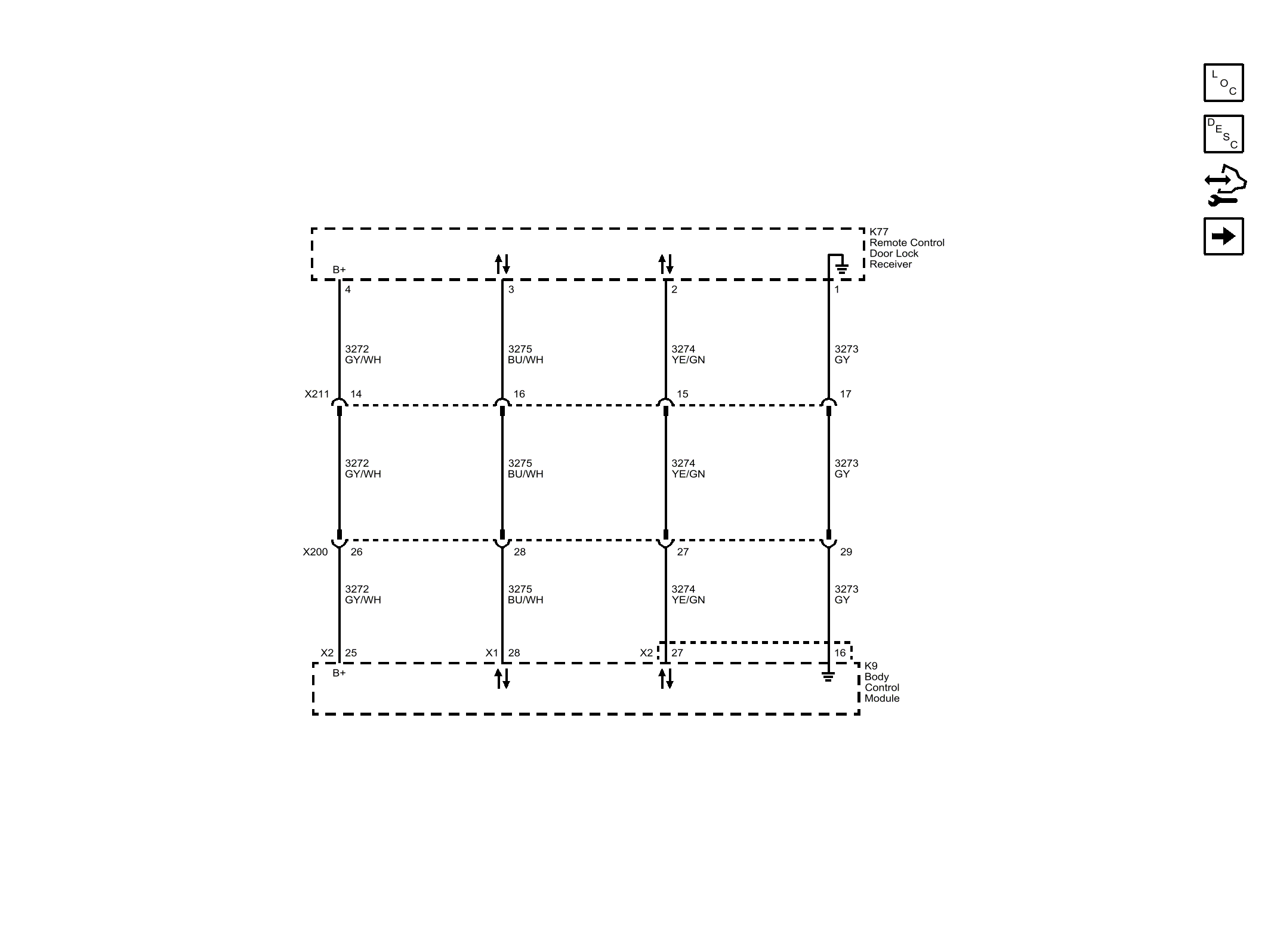

Fig 1: Keyless Entry Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
