Serial Data Communication Enable Wiring Schematics

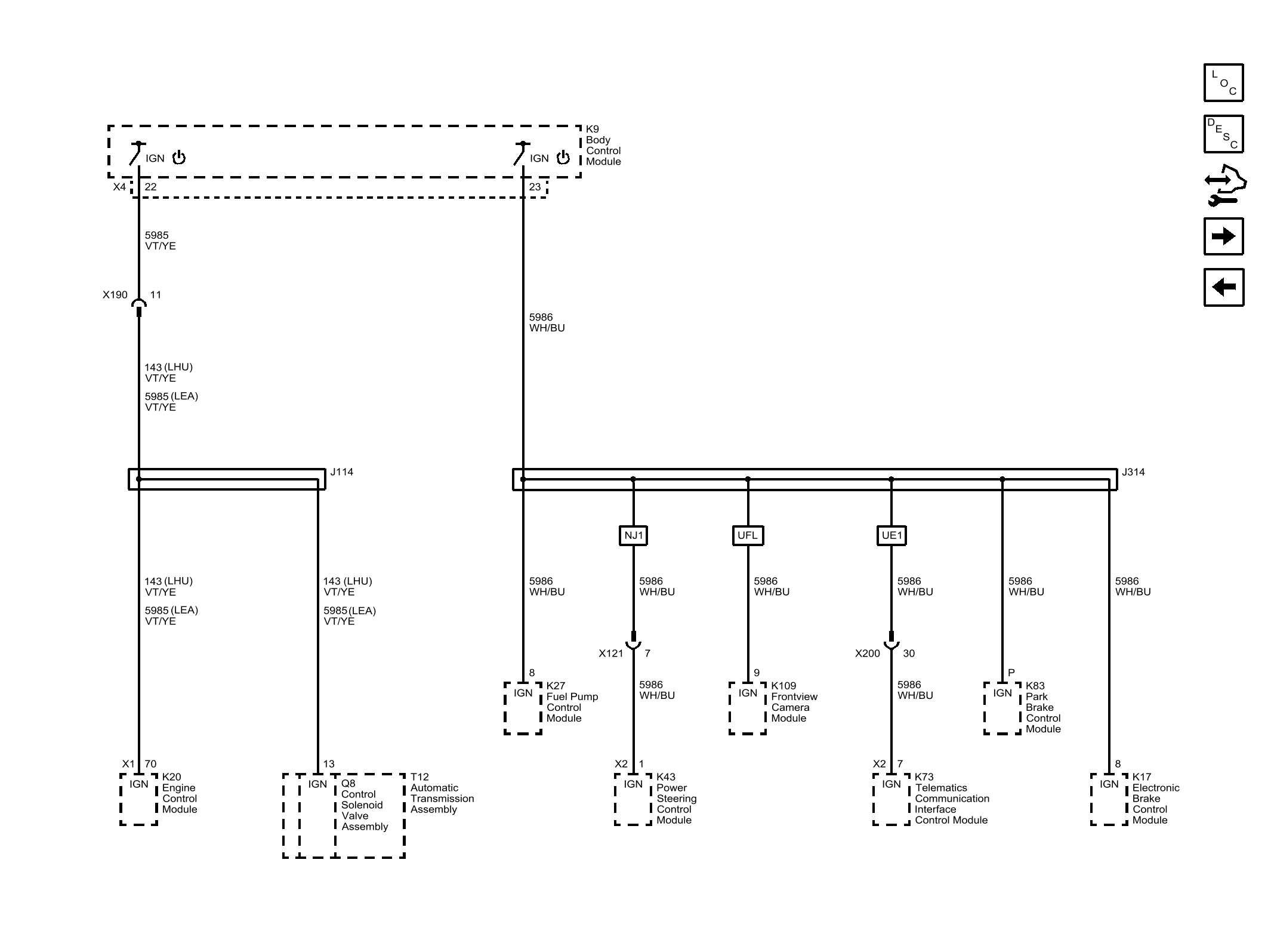

Fig 1: Serial Data Communication Enable Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
