Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

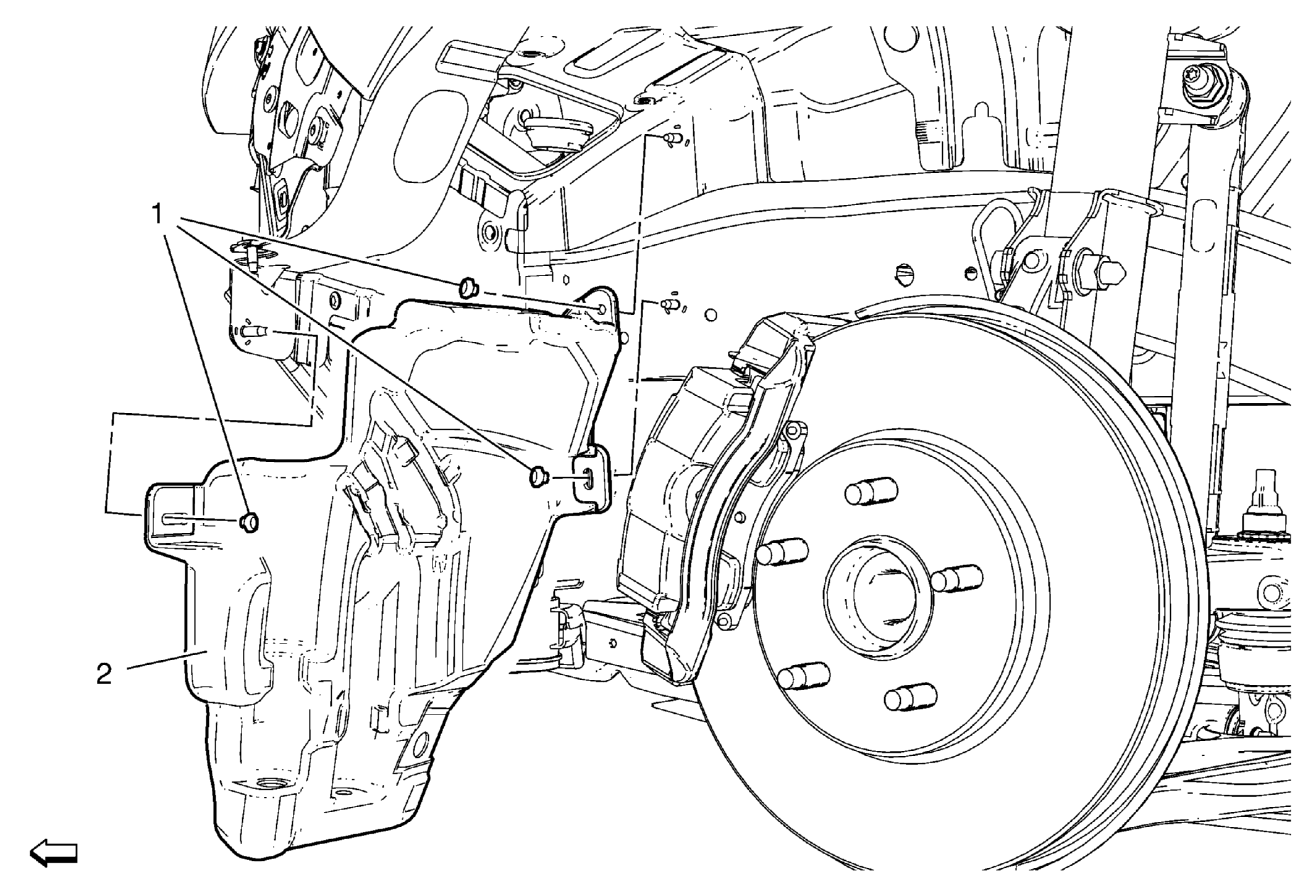

Fig 1: Windshield Washer Solvent Container And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the windshield washer pump. Refer to Windshield Washer Pump Replacement .
1	Windshield Washer Solvent Container Nut (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Windshield Washer Solvent Container

Callout

Component Name

Preliminary Procedure

Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Remove the windshield washer pump. Refer to Windshield Washer Pump Replacement .

Windshield Washer Solvent Container Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Windshield Washer Solvent Container
