Driver or Passenger Seat Side Inflatable Restraint Module Replacement
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Driver or Passenger Seat Side Inflatable Restraint Module Replacement

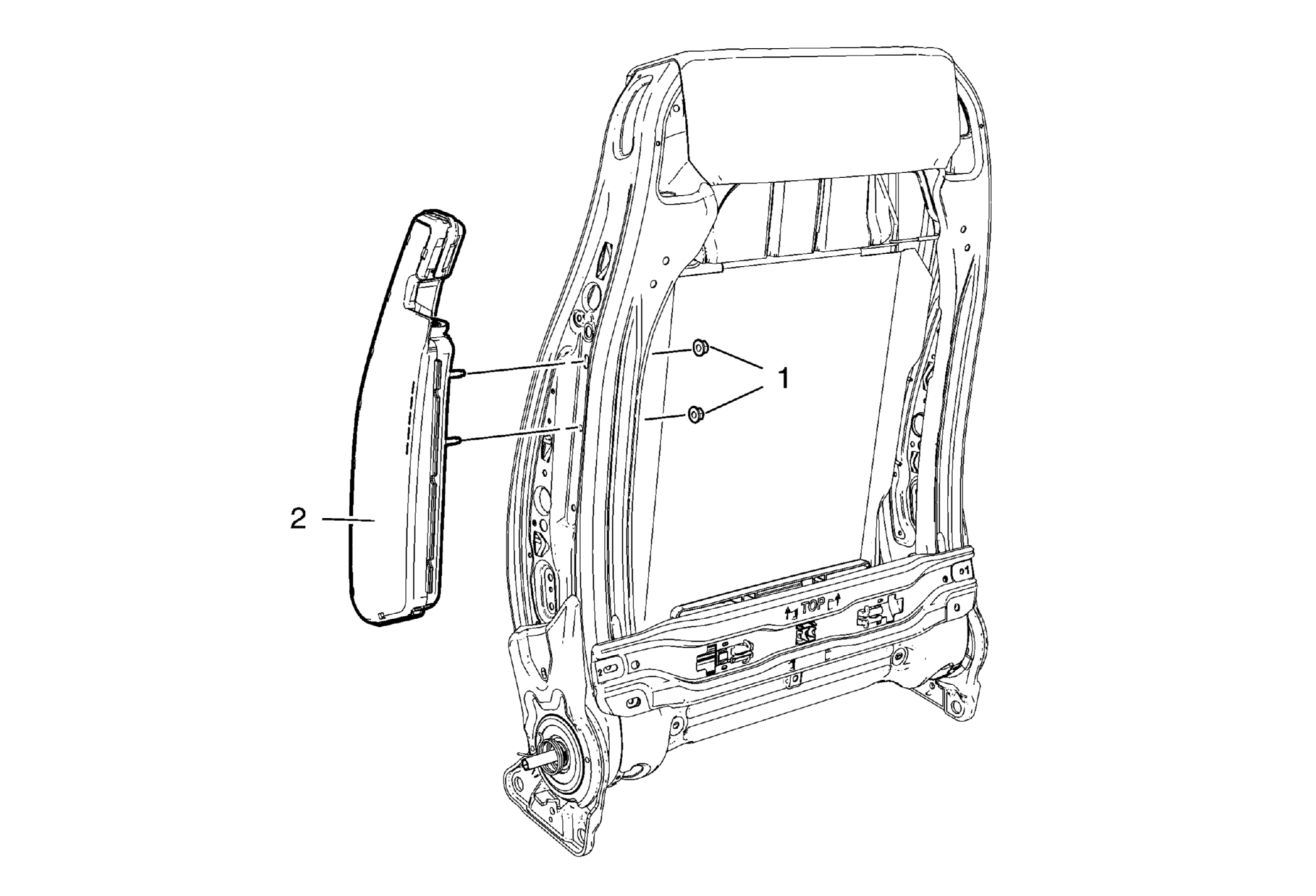

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedures Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement
.Refer to SIR Warning . |
|
| 1 | Inflatable Restraint Front Seat Side Module Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3.75 N.m (33 lb in) |
| 2 | Front Seat Side Inflatable Restraint Module Procedure Disconnect the electrical connector. |
