Outside Rearview Mirror Glass Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

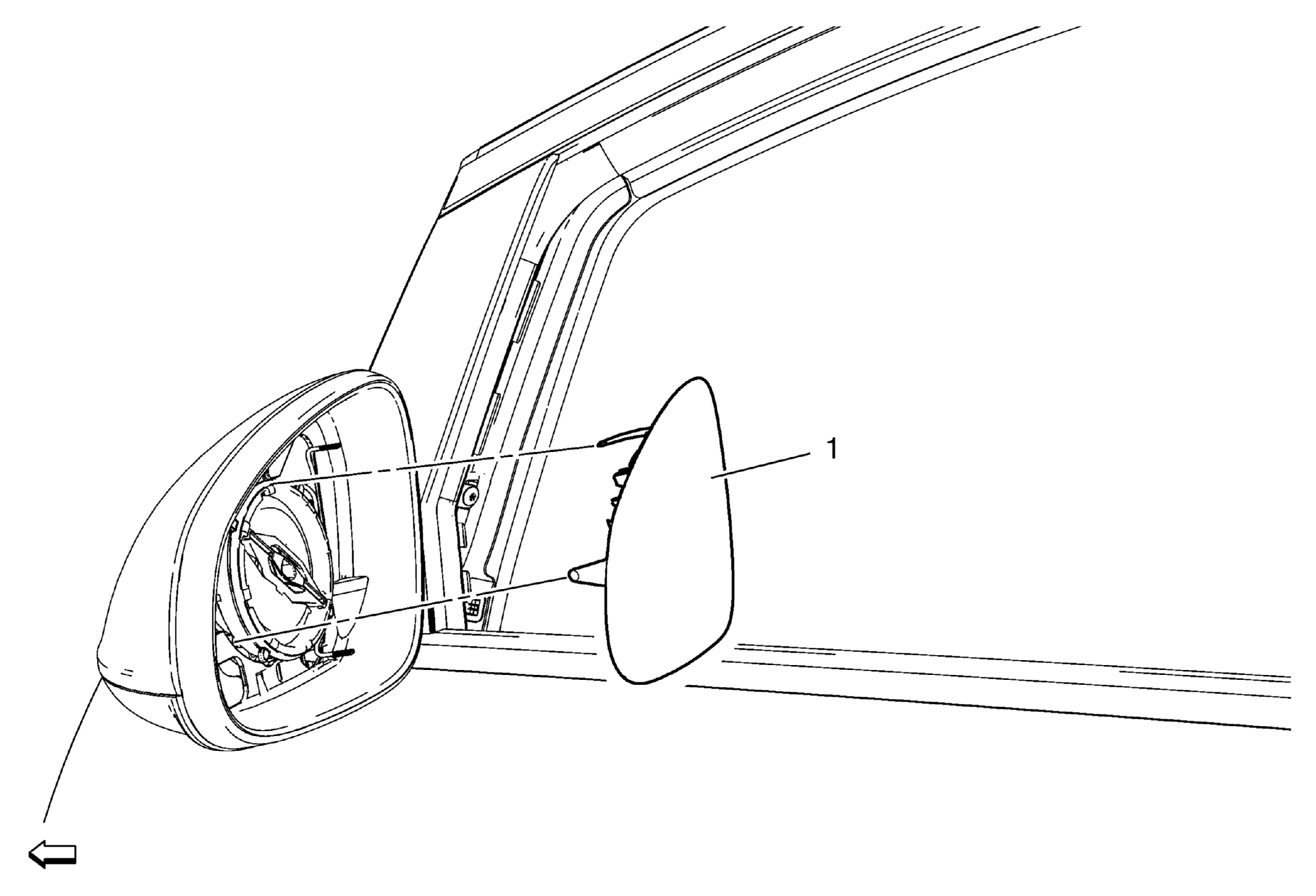

Fig 1: Outside Rearview Mirror Glass
GM2190549Courtesy of GENERAL MOTORS COMPANY
Outside Rearview Mirror Glass Replacement

Callout Component Name
1 Outside Rearview Mirror Glass
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Procedure

  1. Release the mirror glass backing from the mirror housing by pulling outward.
  2. Disconnect the power wire harness electrical connector.
