Brake Fluid Level Indicator Switch Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

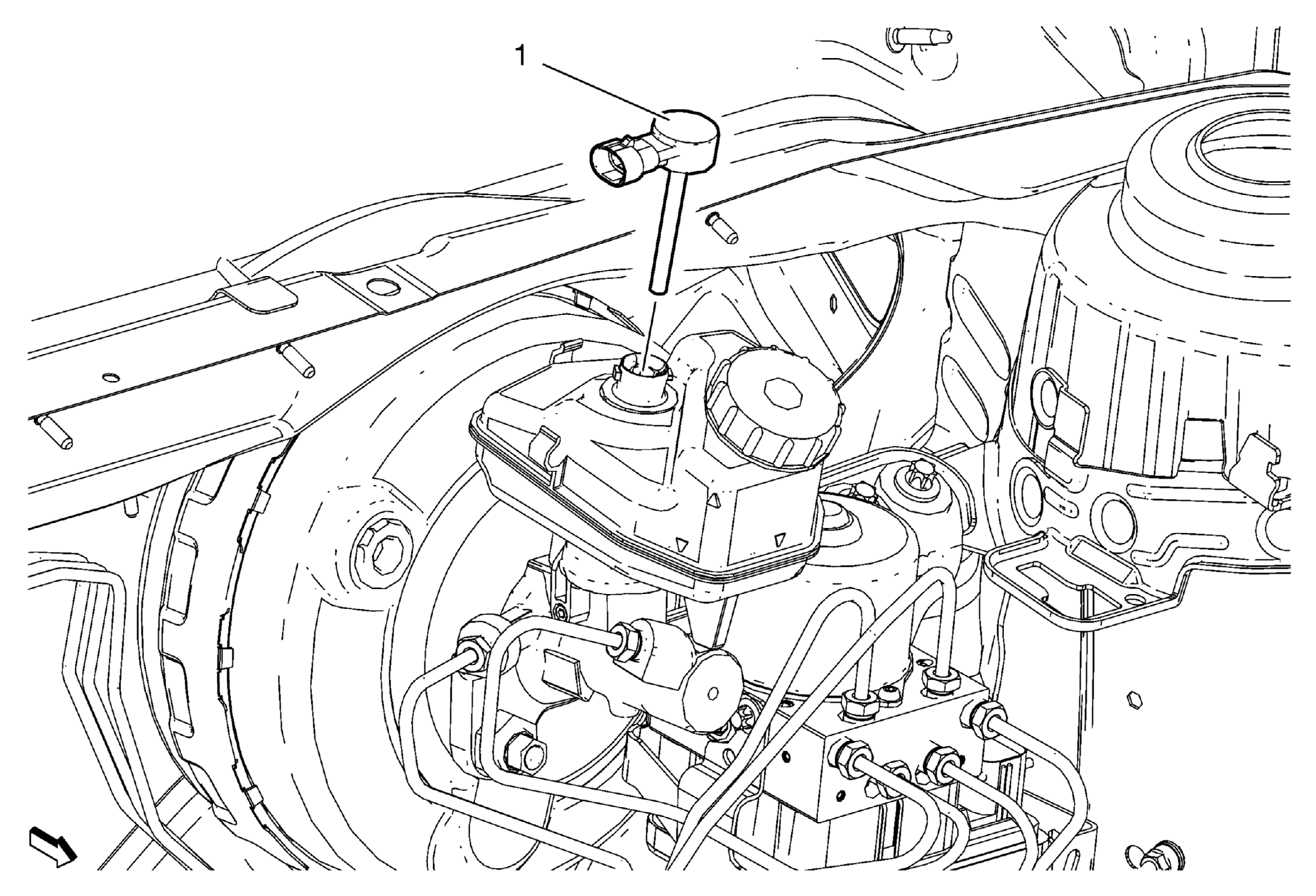

Fig 1: Brake Fluid Level Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedures Remove dash upper extension panel opening cover. Refer to Dash Upper Extension Panel Opening Cover Replacement . Remove and discard the brake fluid from the master cylinder reservoir.
1	Brake Fluid Level Indicator Switch Procedure Disconnect electrical connector. Twist indicator switch clockwise.

Callout

Component Name

WARNING:

Refer to Brake Fluid Irritant Warning .

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

Preliminary Procedures

Remove dash upper extension panel opening cover. Refer to Dash Upper Extension Panel Opening Cover Replacement .
Remove and discard the brake fluid from the master cylinder reservoir.

Brake Fluid Level Indicator Switch

Procedure

Disconnect electrical connector.
Twist indicator switch clockwise.
