Installation Procedure
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

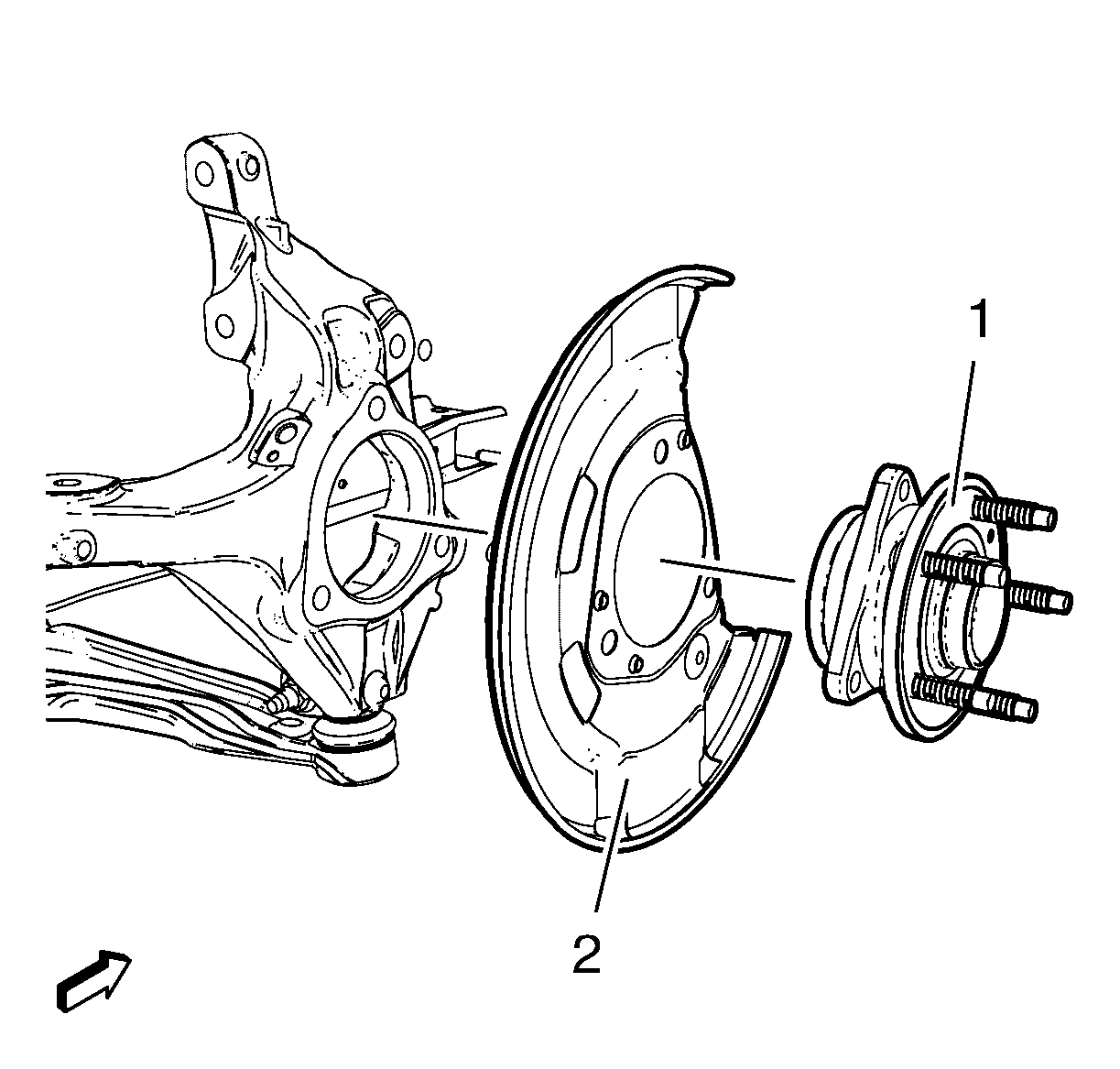

- Position the front brake shield (2) and wheel bearing/hub assembly (1) in the steering knuckle.

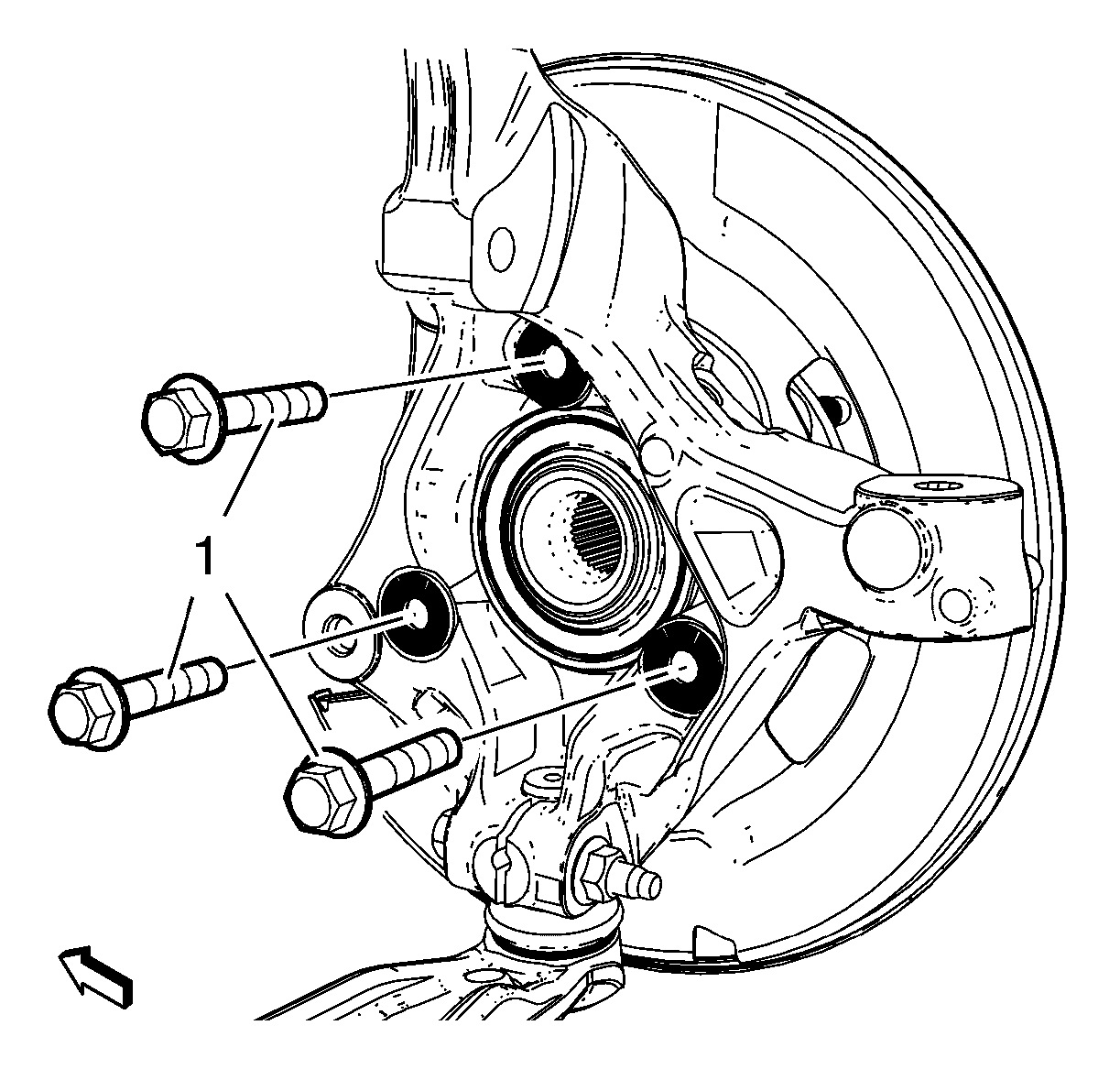

- Tighten the bearing/hub bolts (1) a first pass to 90 N.m (66 lb ft).
- Tighten the NEW bearing/hub bolts (1) a final pass to an additional 60 - 75 degrees, using the EN-45059 meter.
- Install the wheel speed sensor wiring harness to the steering knuckle.

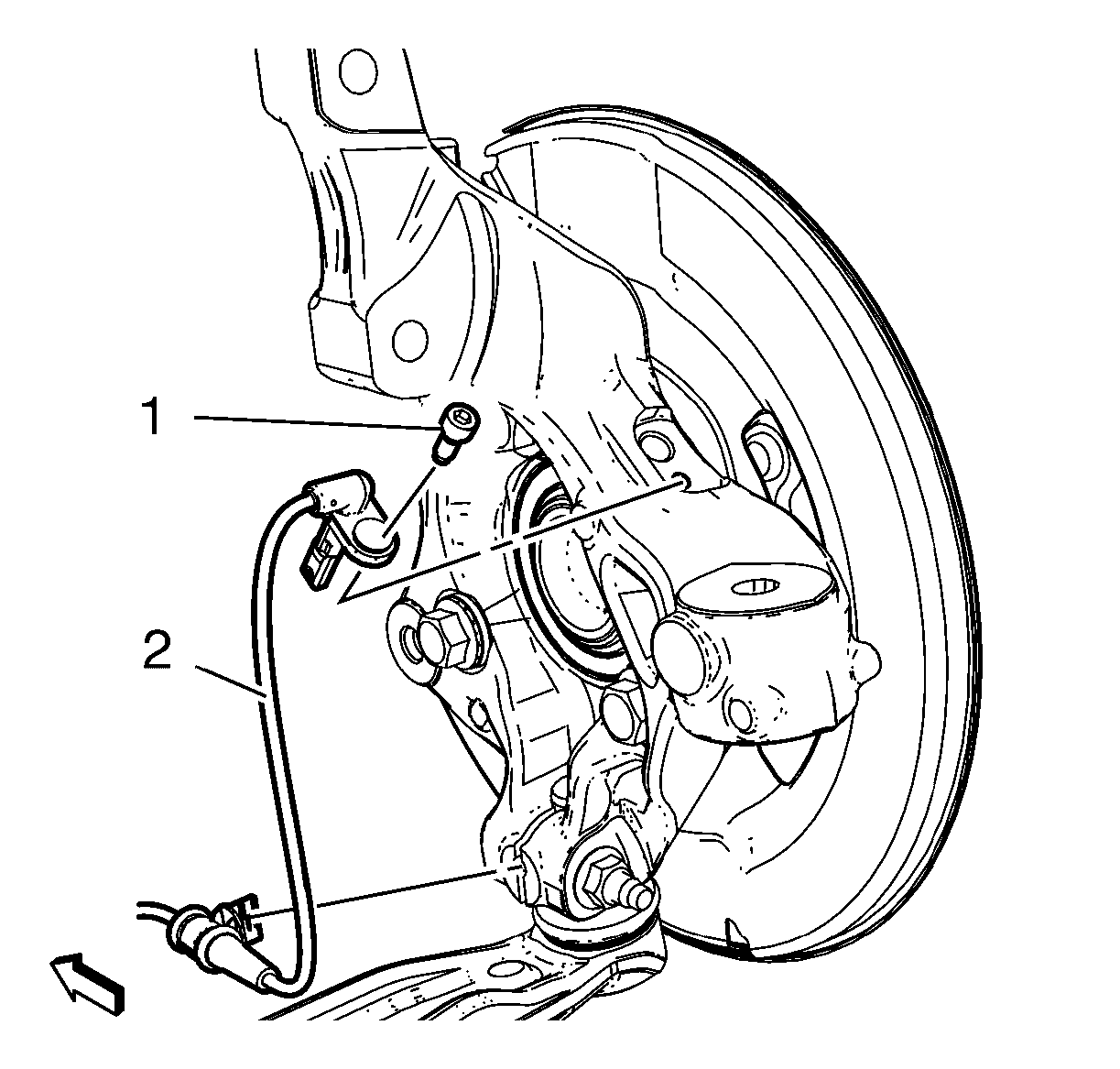

- Install the wheel speed sensor (2).
- Install the wheel speed sensor bolt (1) and tighten to 6 N.m (53 lb in).
- Install the brake rotor. Refer to Front Brake Rotor Replacement .
- Install the NEW wheel drive shaft retaining nut and washer. Refer to Front Wheel Drive Shaft Replacement - Right Side , or Front Wheel Drive Shaft Replacement - Left Side .
- Remove the support and lower the vehicle.
CAUTION:
This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.
CAUTION:
Refer to Fastener Caution .
WARNING:
Refer to Torque-to-Yield Fastener Warning .
