Garage Door Opener

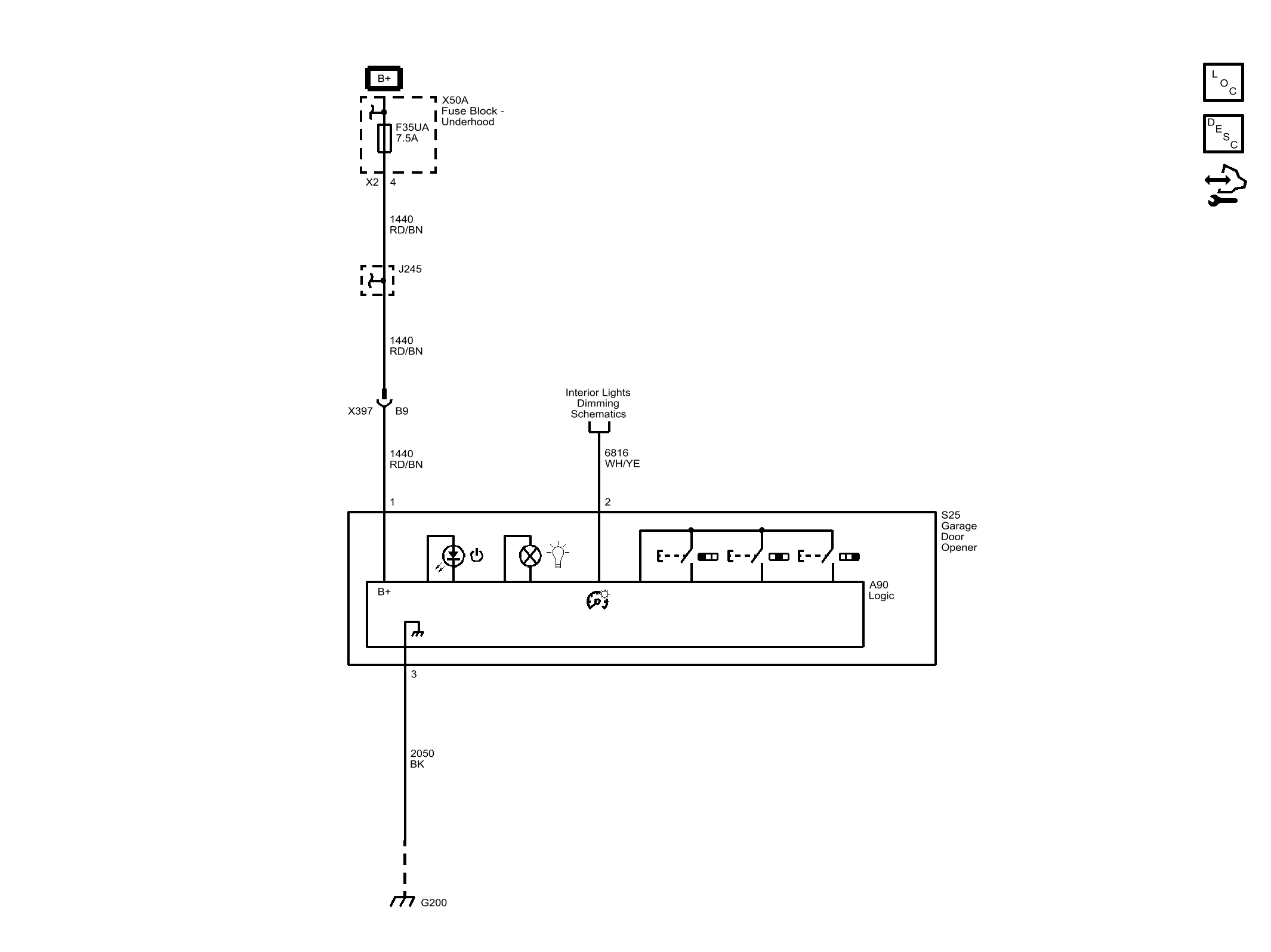

Fig 1: Garage Door Opener
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
