Rear Side Door Window Switch Replacement

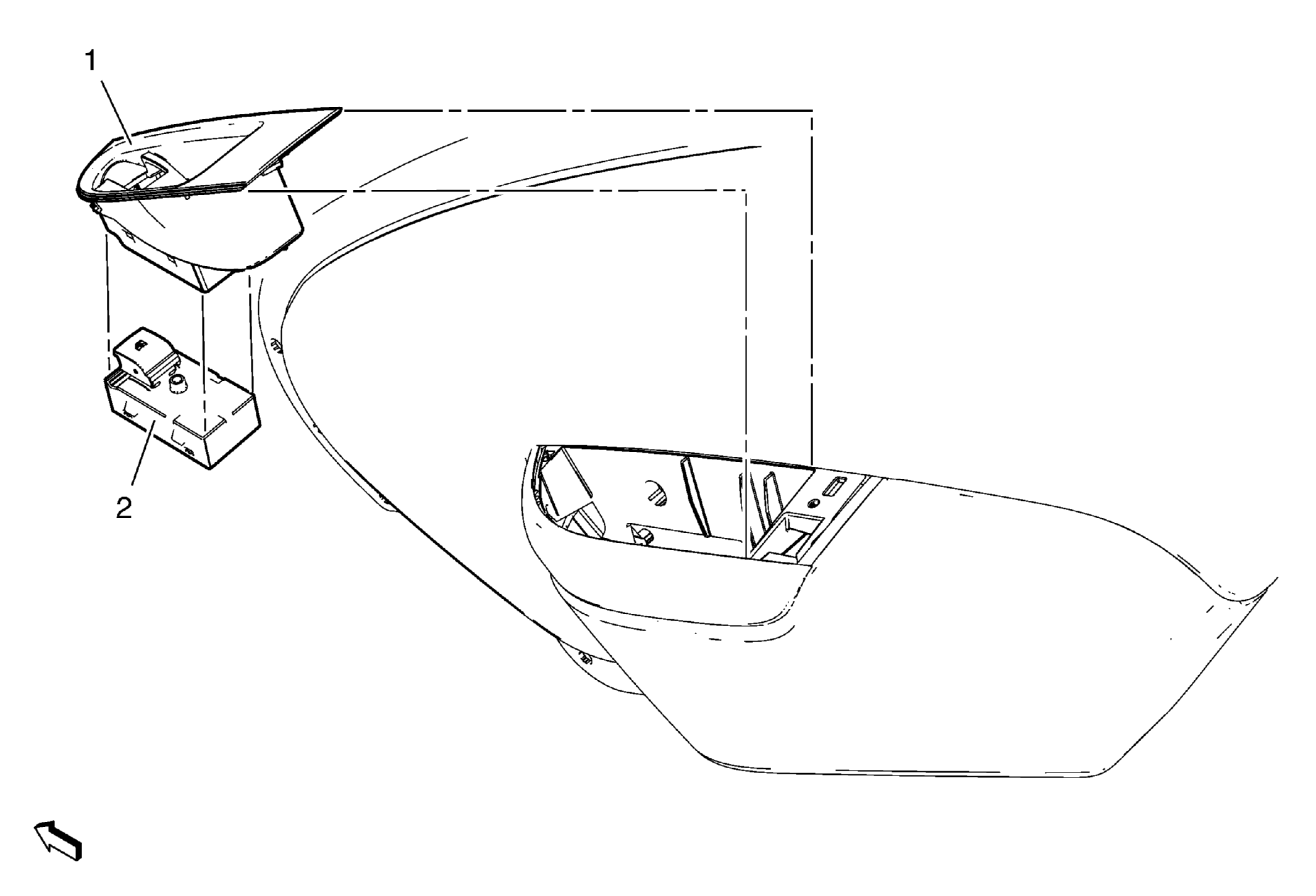

Fig 1: Rear Side Door Window Switch & Cover
GM2189757Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Window Switch Opening Cover
Procedure
Unclip rear side door window switch opening cover (Qty: 4).
2 Rear Side Door Window Switch Assembly

Procedure

  1. Unclip rear side door window switch (Qty: 4).
  2. Disconnect electrical connector.
