Moveable Window Wiring Schematics: Driver

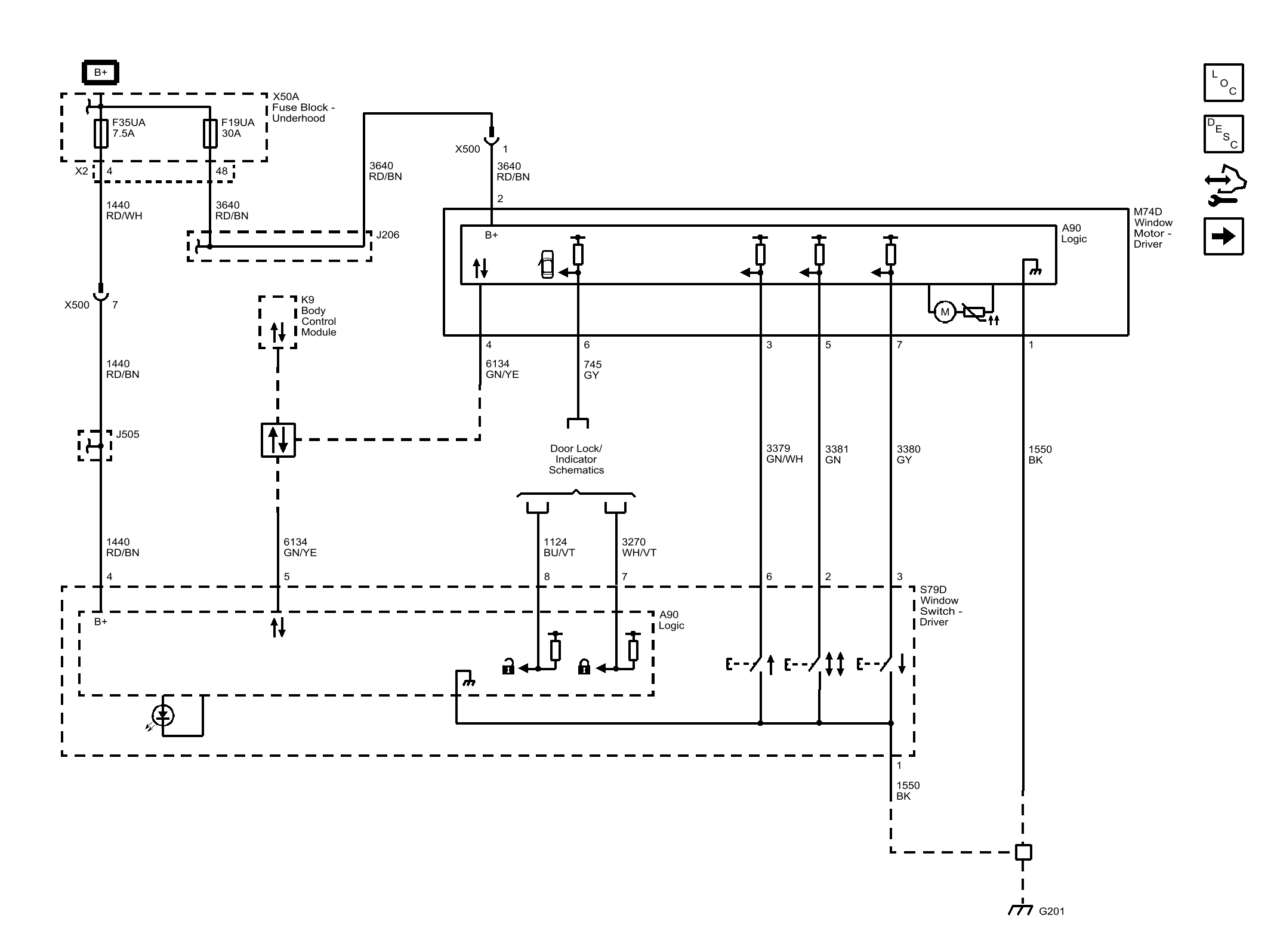

Fig 1: Driver
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
