Engine Shield Replacement

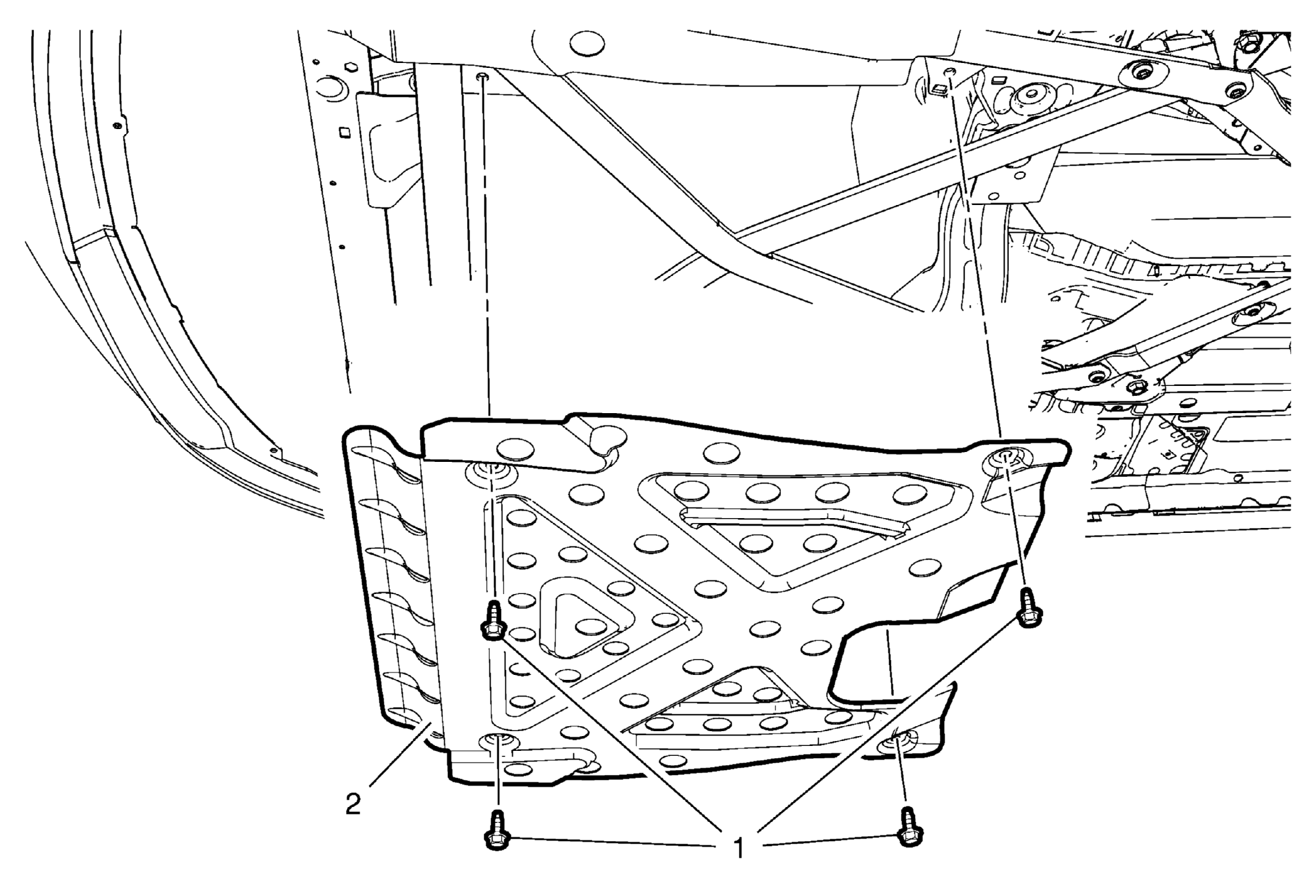

Fig 1: Engine Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Shield Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Engine Shield
