Installation Procedure

  1. Assemble the turbocharger. Refer to Turbocharger Assemble .

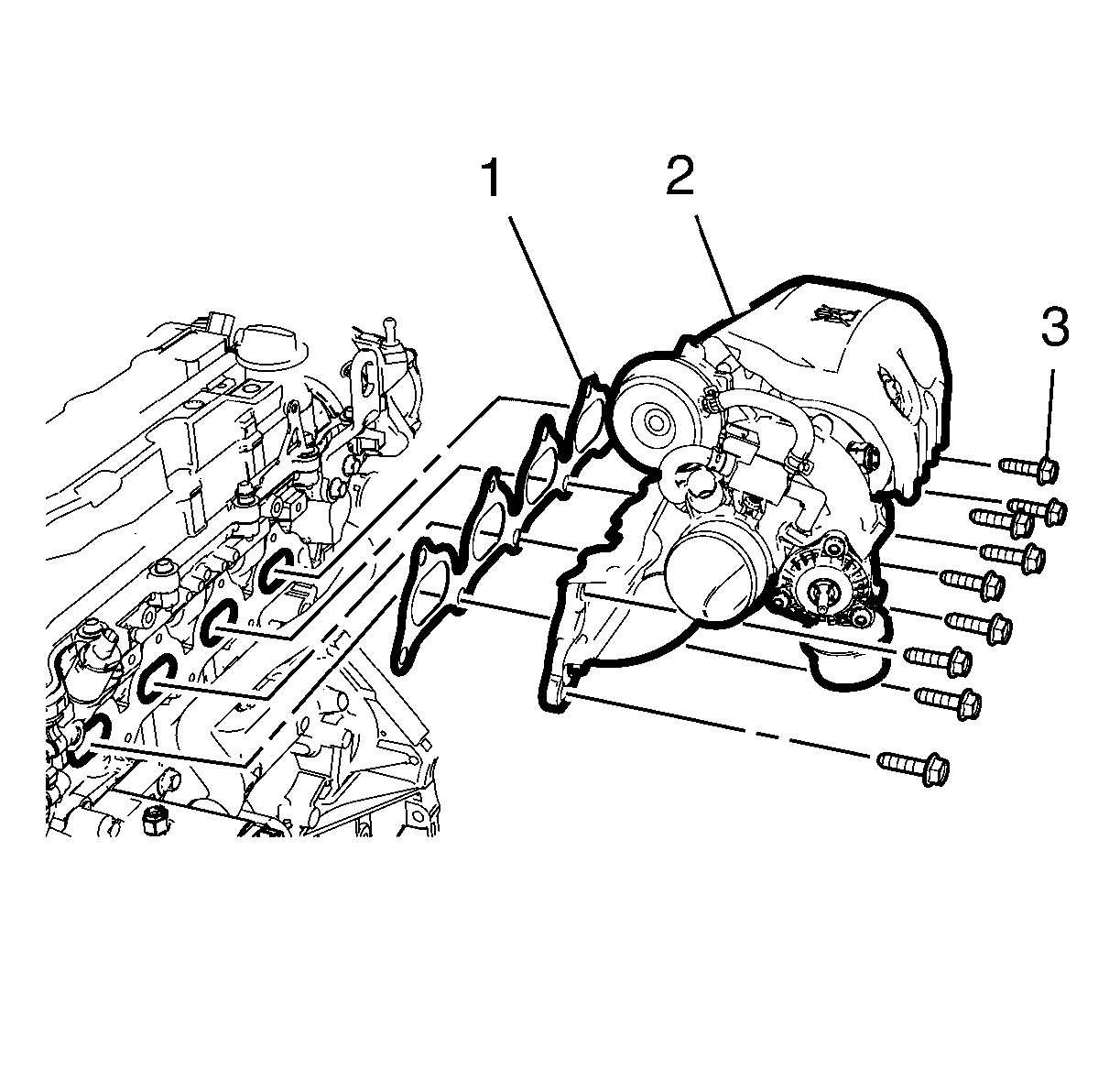

    2. Fig 1: Exhaust Manifold And Turbocharger Assembly
    GM2906674Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW exhaust manifold gasket (1).
  3. Install the turbocharger with exhaust manifold (2) and exhaust manifold heat shield.
  4. Loosely install the 9 Exhaust manifold bolts (3).

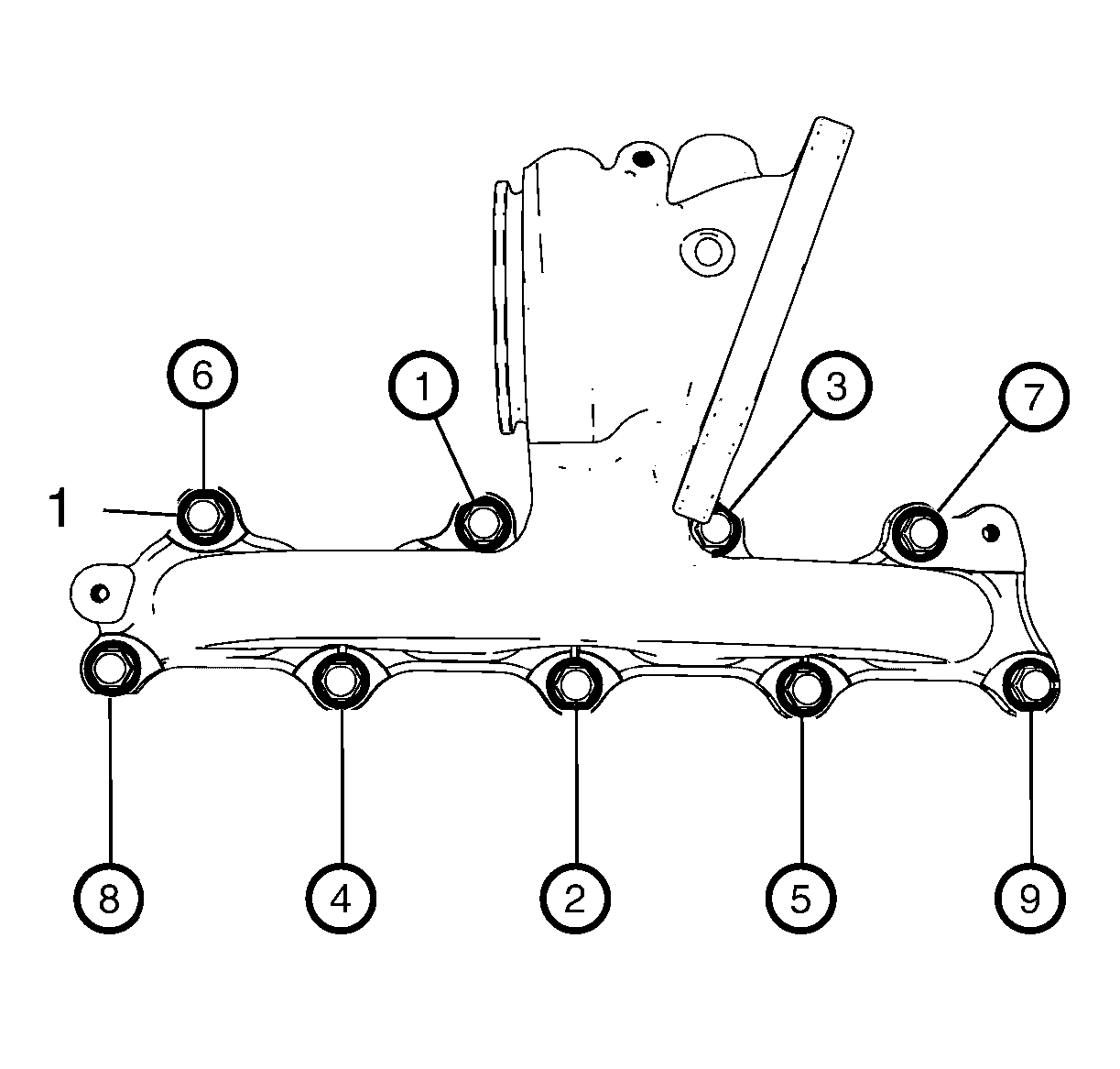

    5. Fig 2: Exhaust Manifold Bolt Tightening sequence
    GM2948999Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Tighten the 9 exhaust manifold bolts (1) to 20 N.m (15 lb ft) in the sequence as shown.
  6. Connect the turbocharger wastegate regulator solenoid valve wiring harness plug.

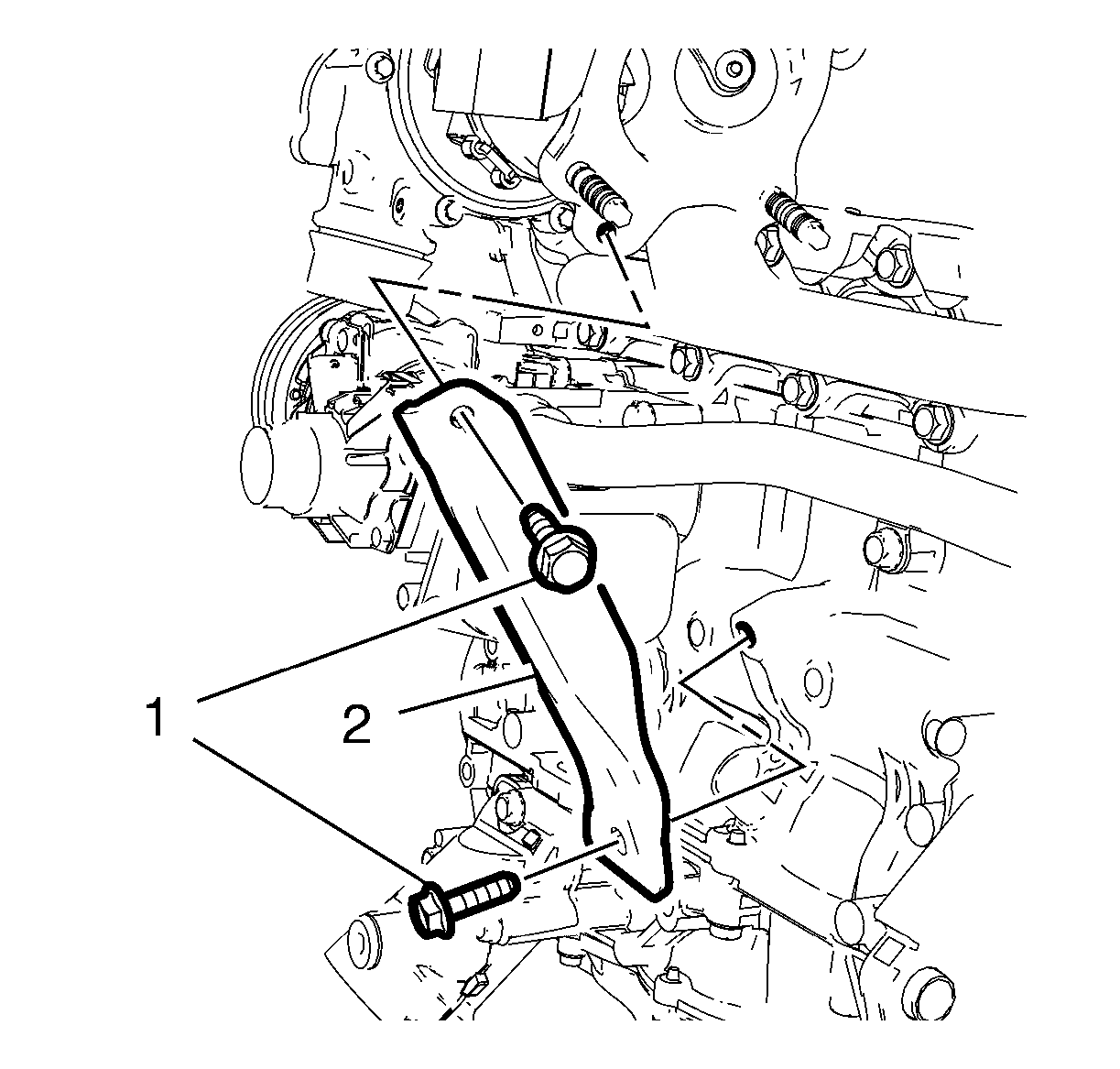

    7. Fig 3: Turbocharger Brace
    GM2906673Courtesy of GENERAL MOTORS COMPANY
  7. Install the turbocharger brace (2).
  8. Install the 2 turbocharger brace bolts (1) and tighten to 25 N.m (18 lb ft).
  9. Install the turbocharger coolant return pipe. Refer to Turbocharger Coolant Return Pipe Replacement .
  10. Install the turbocharger coolant feed pipe. Refer to Turbocharger Coolant Feed Pipe Replacement .
  11. Install the turbocharger oil return pipe. Refer to Turbocharger Oil Return Pipe Replacement .
  12. Install the turbocharger oil feed pipe. Refer to Turbocharger Oil Feed Pipe Replacement .
  13. Install the charge air bypass valve hose to the turbocharger. Refer to Charge Air Bypass Valve Hose Replacement .

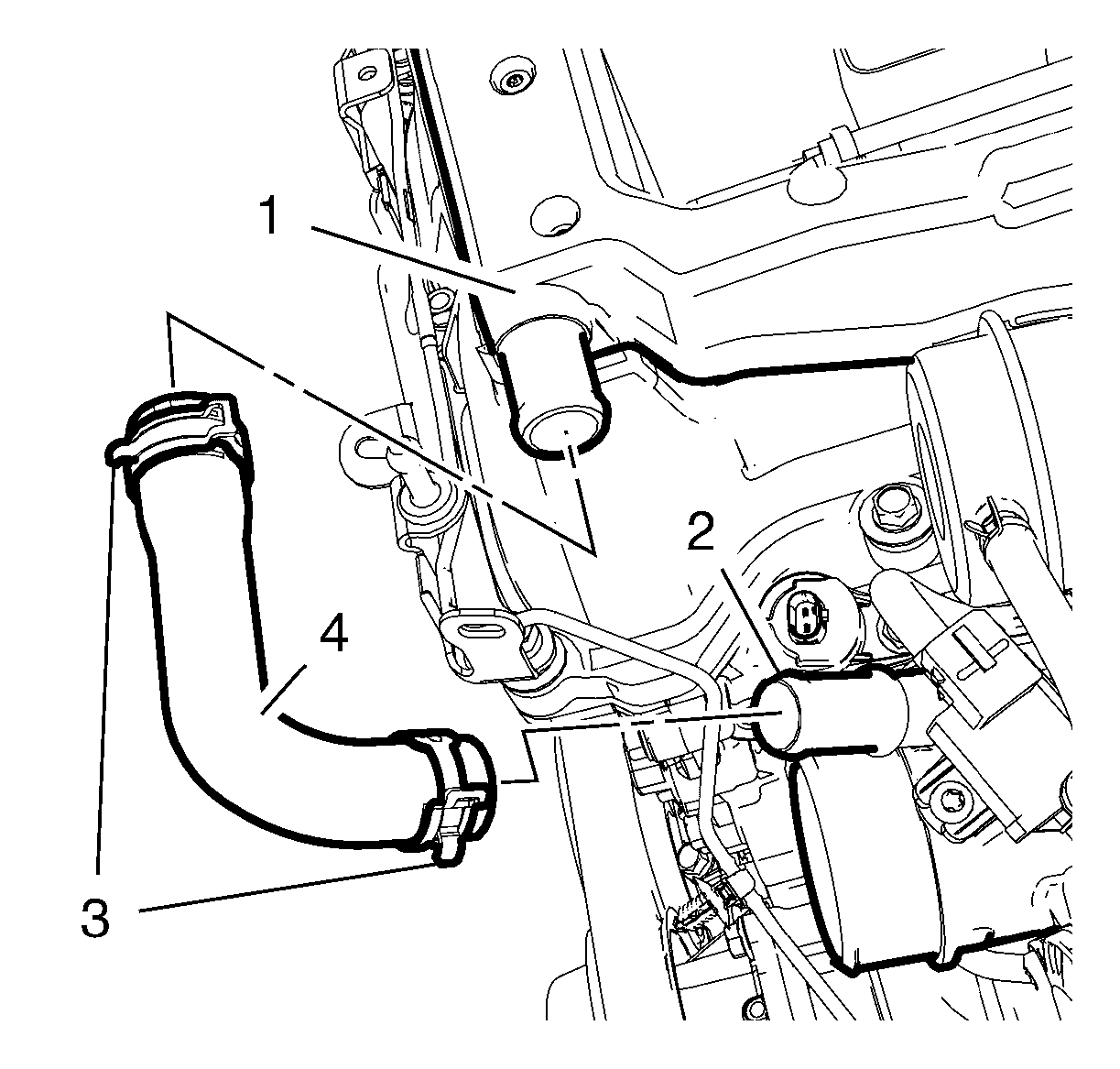

    14. Fig 4: Positive Crankcase Ventilation Hose At Turbocharger
    GM2906656Courtesy of GENERAL MOTORS COMPANY
  14. Install the positive crankcase ventilation vacuum hose (4) to the turbocharger (2).
  15. Install the clamp (3) - turbocharger side.

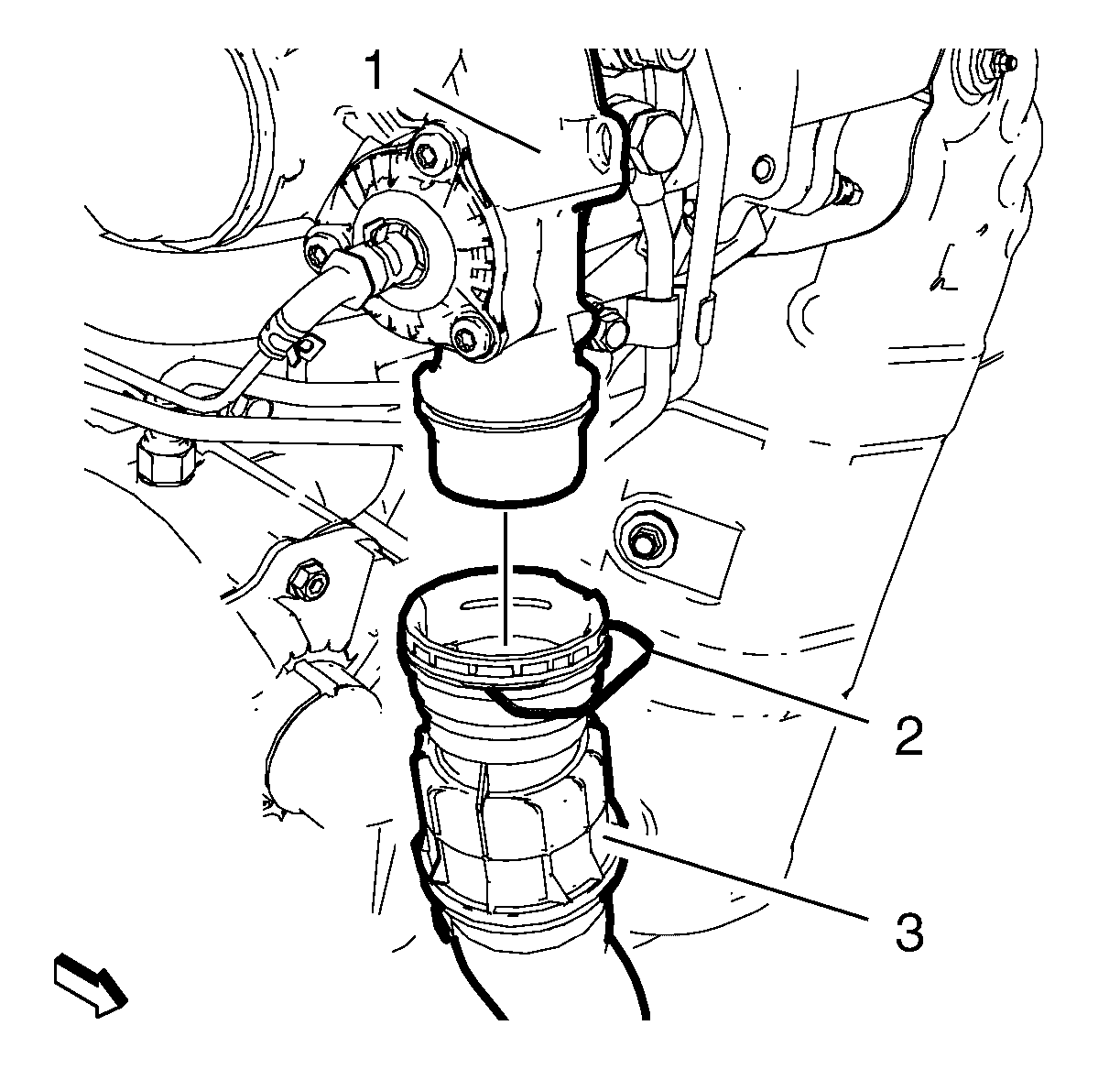

    16. Fig 5: Turbocharger
    GM2968099Courtesy of GENERAL MOTORS COMPANY
  16. Install the charge air cooler inlet hose (3) to the turbocharger (1).
  17. Clip in the charge air cooler inlet hose retainer clamp (2).
  18. Install the warm up three-way catalytic converter. Refer to Warm Up Three-Way Catalytic Converter Replacement .
  19. Install the exhaust front pipe. Refer to Exhaust Front Pipe Replacement .
  20. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  21. Install the engine sight shield. Refer to Engine Sight Shield Replacement .
