Disassemble Procedure

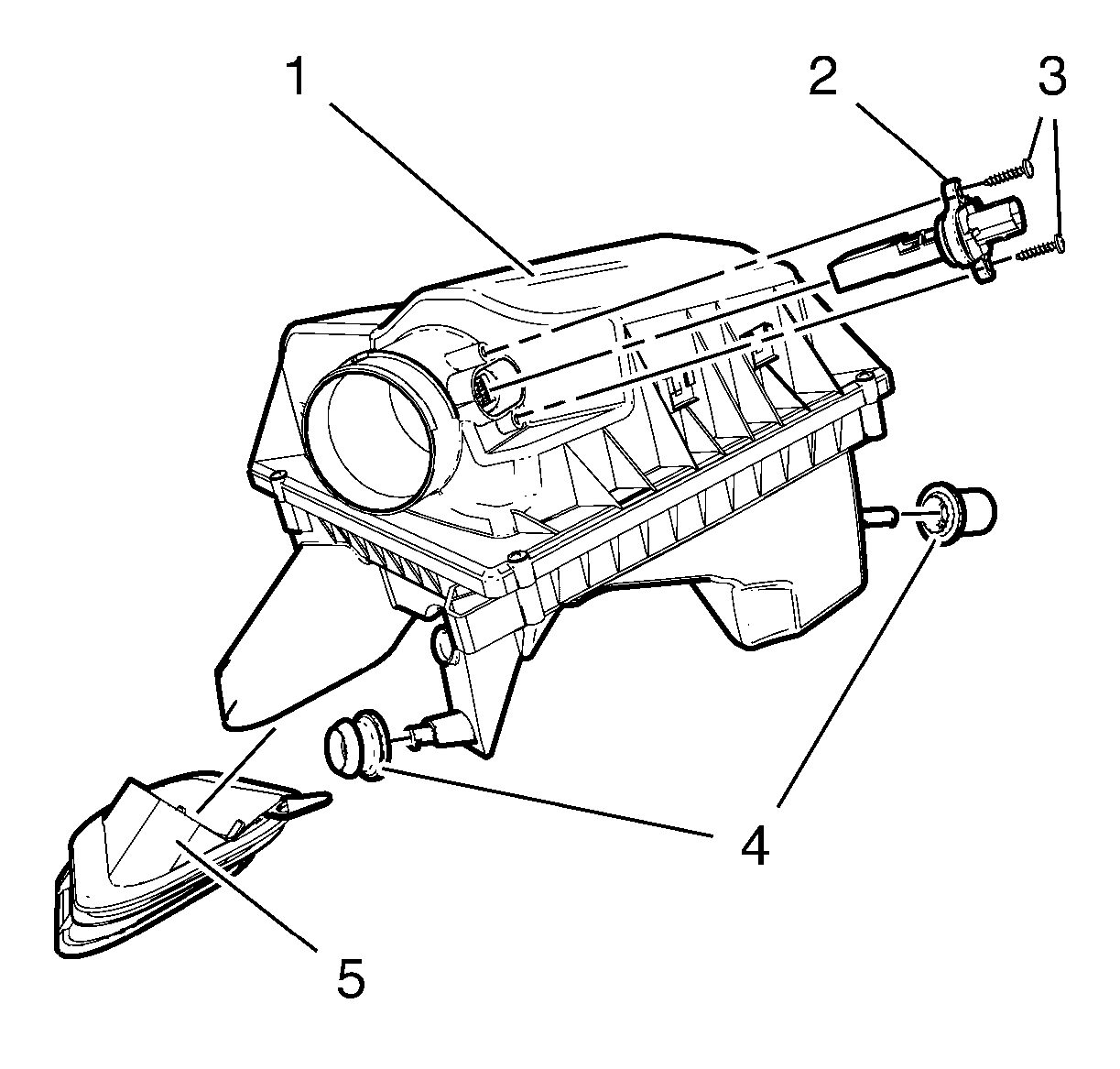

    Fig 1: Air Cleaner Housing And Air Cleaner Insulator
    GM2191536Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 2 mass air flow sensor bolts (3).
  2. Remove the mass air flow sensor (2) from the air cleaner housing (1).
  3. Remove the 2 air cleaner housing insulator (4).
  4. Remove the air cleaner insulator (5).

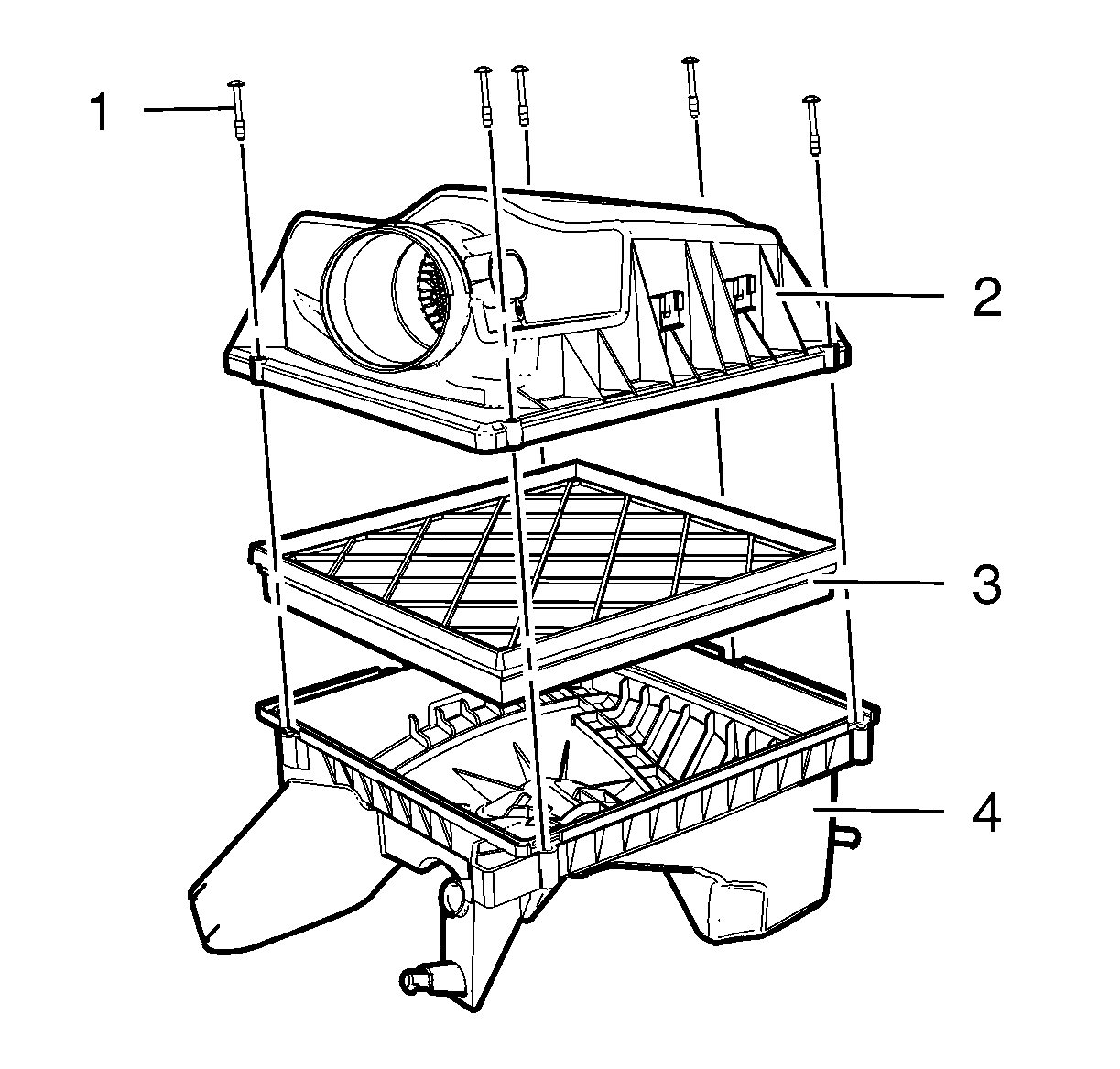

    5. Fig 2: Air Cleaner Element
    GM2191545Courtesy of GENERAL MOTORS COMPANY
  5. Remove the 5 air cleaner housing bolts (1).
  6. Remove the air cleaner upper housing (2) from the air cleaner lower housing (4).
  7. Remove the air cleaner element (3).

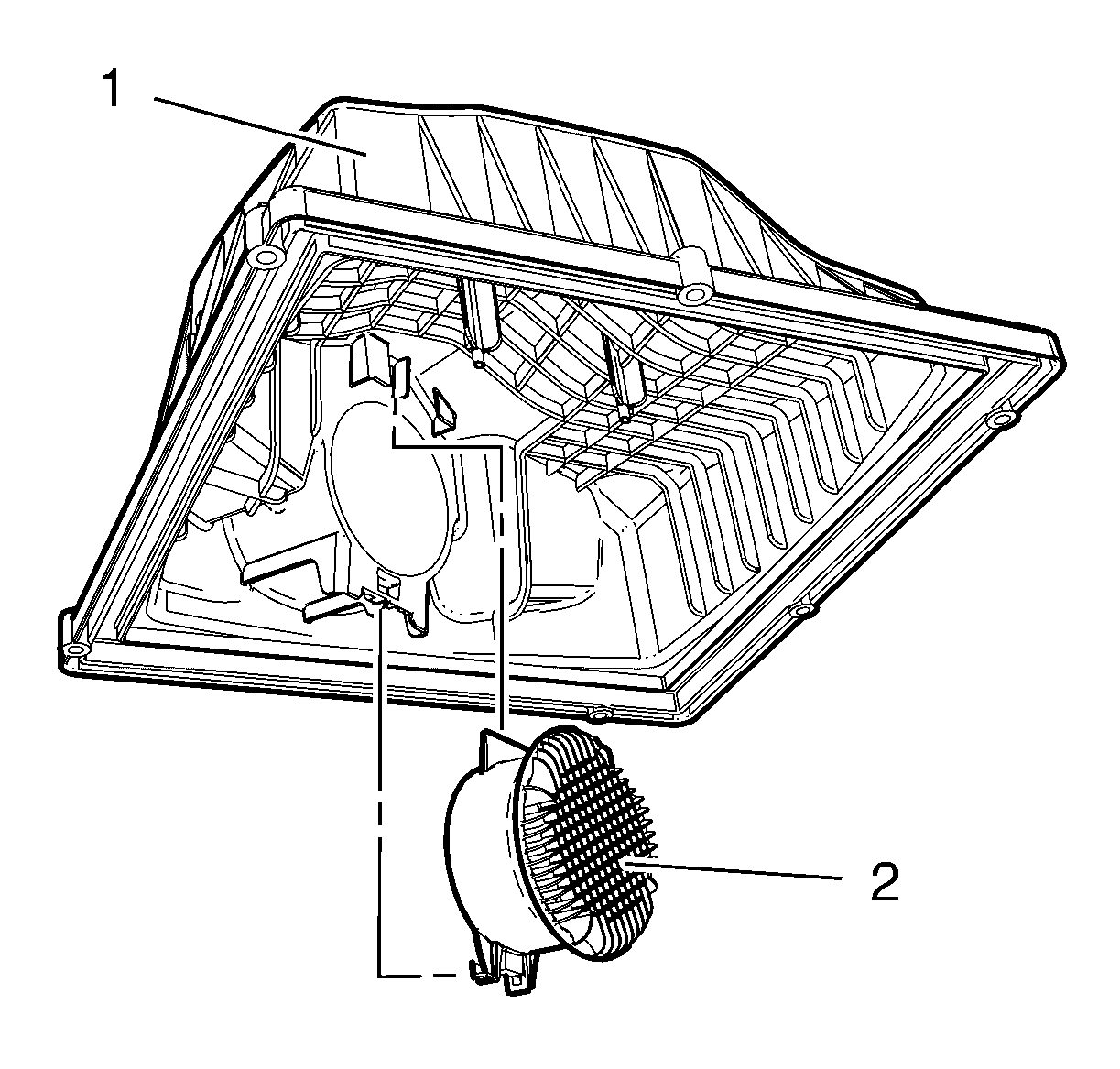

    8. Fig 3: Air Cleaner Upper Housing
    GM2191546Courtesy of GENERAL MOTORS COMPANY
  8. Remove the air cleaner outlet baffle (2) from air cleaner upper housing (1).
