Air Cleaner Outlet Duct Replacement

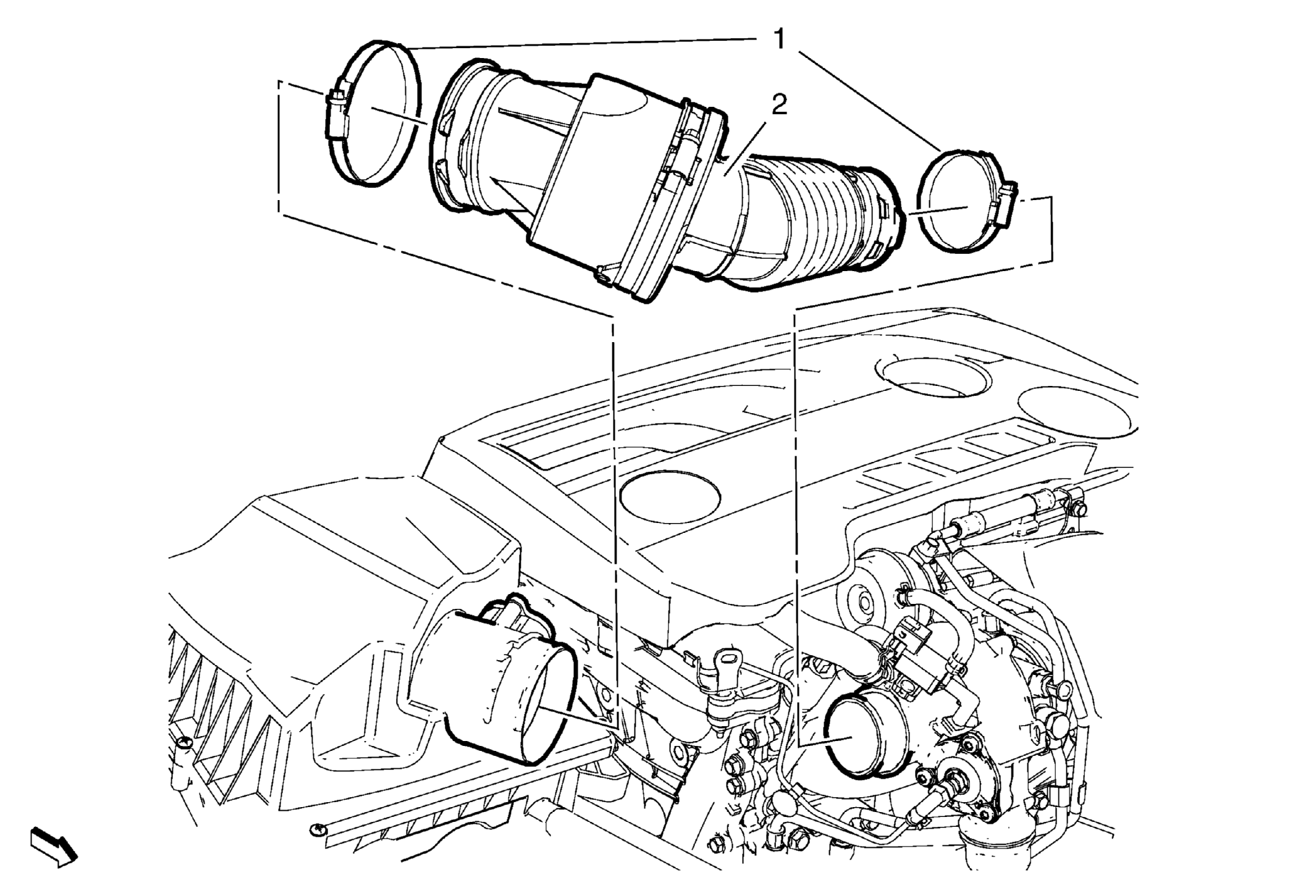

Fig 1: Air Cleaner Outlet Duct
GM3011729Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Outlet Duct Clamps (Qty: 2)
CAUTION:

Refer to Fastener Caution .

NOTE:

Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2 Air Cleaner Outlet Duct
