Engine Oil Pressure Sensor Replacement

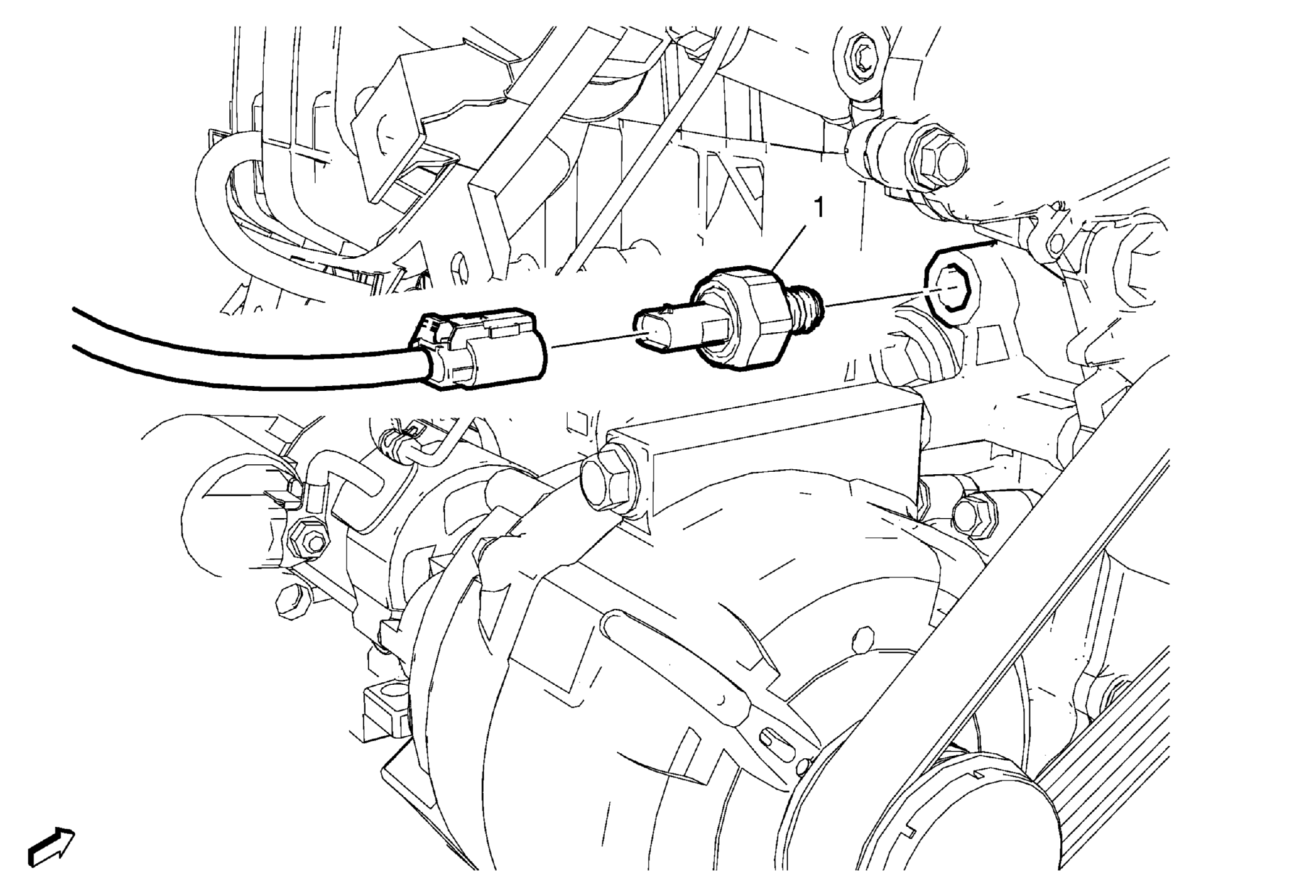

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement . Engine Sight Shield - Remove - Engine Sight Shield Replacement . Disconnect the electrical connector.
1	Engine Oil Pressure Sensor CAUTION: This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur. CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft) Procedure Clean the threaded hole. Connect the electrical connector. Engine Sight Shield - Install - Engine Sight Shield Replacement . Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement .

Callout

Component Name

Preliminary Procedures

Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement .
Engine Sight Shield - Remove - Engine Sight Shield Replacement .
Disconnect the electrical connector.

Engine Oil Pressure Sensor

CAUTION:

This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.

CAUTION:

Refer to Fastener Caution .

Tighten
35 N.m (26 lb ft)

Procedure

Clean the threaded hole.
Connect the electrical connector.
Engine Sight Shield - Install - Engine Sight Shield Replacement .
Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement .
