Installation Procedure

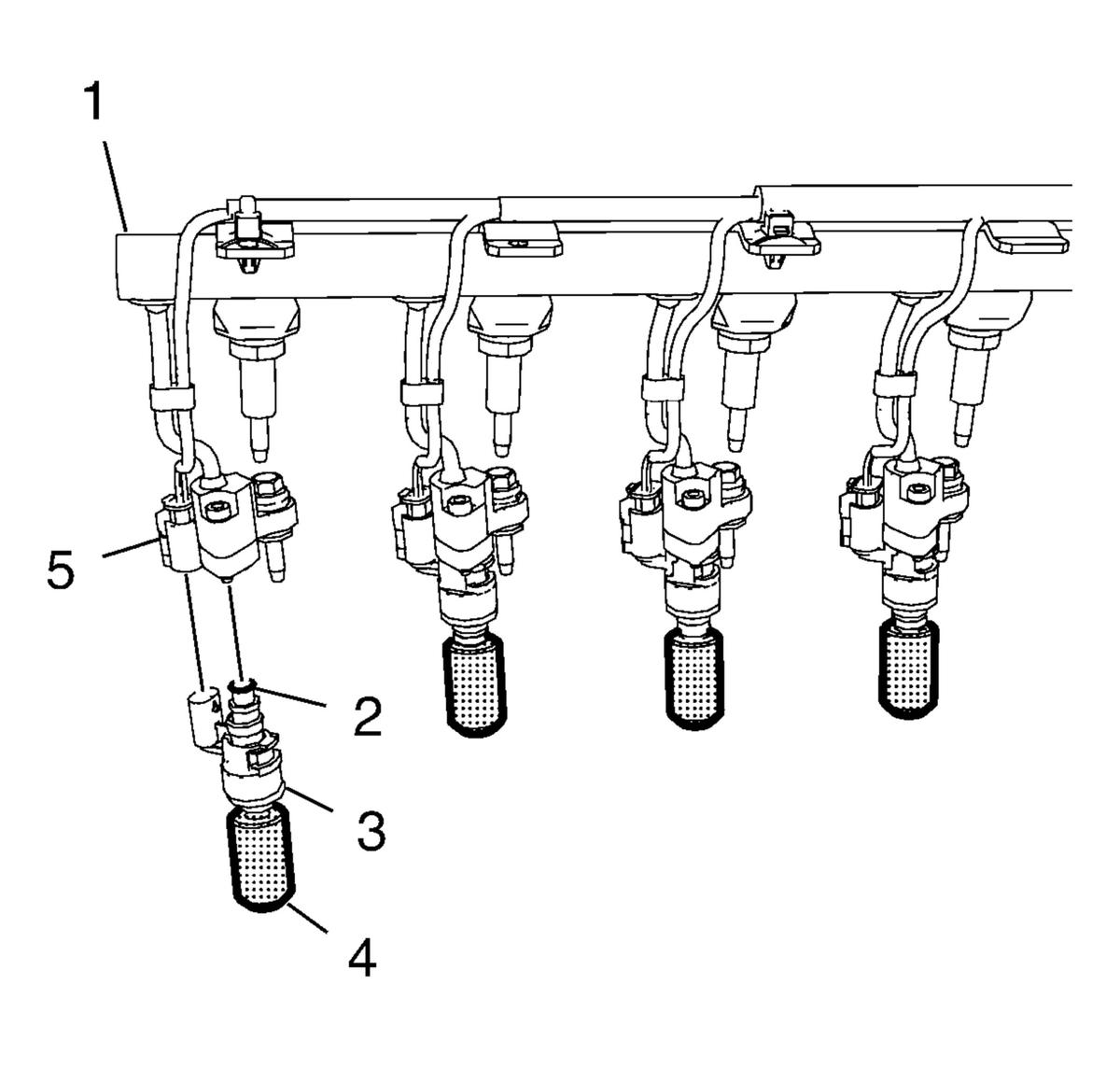

    Fig 1: Fuel Injection Fuel Rail
    GM3324318Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The EN-51146-2-5  calibrations tools must be installed to the other injectors, also.

  1. Install the EN-51146-2-5  calibrations tools (1) to the fuel injectors (3).
  2. Coat the fuel injector seal (2) with a bit NEW engine oil.
  3. Install NEW fuel injector (3) to the fuel injection fuel rail (1).
    4. NOTE:

    DO NOT reuse the old bolt.

  4. Apply thread lock agent to NEW fuel injector bolt.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the NEW fuel injector bolts to the fuel injector (3) and tighten to 5 N.m (44 lb in).
  6. Connect the regarding fuel injector wiring harness plug (5).
  7. Install the fuel injector rail assembly. Refer to Fuel Injection Fuel Rail Assembly Removal and Installation .
