Removal Procedure
WARNING:
Refer to Gasoline/Gasoline Vapors Warning .
WARNING:
Refer to Safety Goggles and Fuel Warning .
CAUTION:
When working on the fuel rail and fuel injectors, always maintain a clean work surface. Failure to maintain a clean work surface can result in contaminant on the injector seals and cause leaks.
- Remove the fuel injector rail assembly. Refer to Fuel Injection Fuel Rail Assembly Removal and Installation .

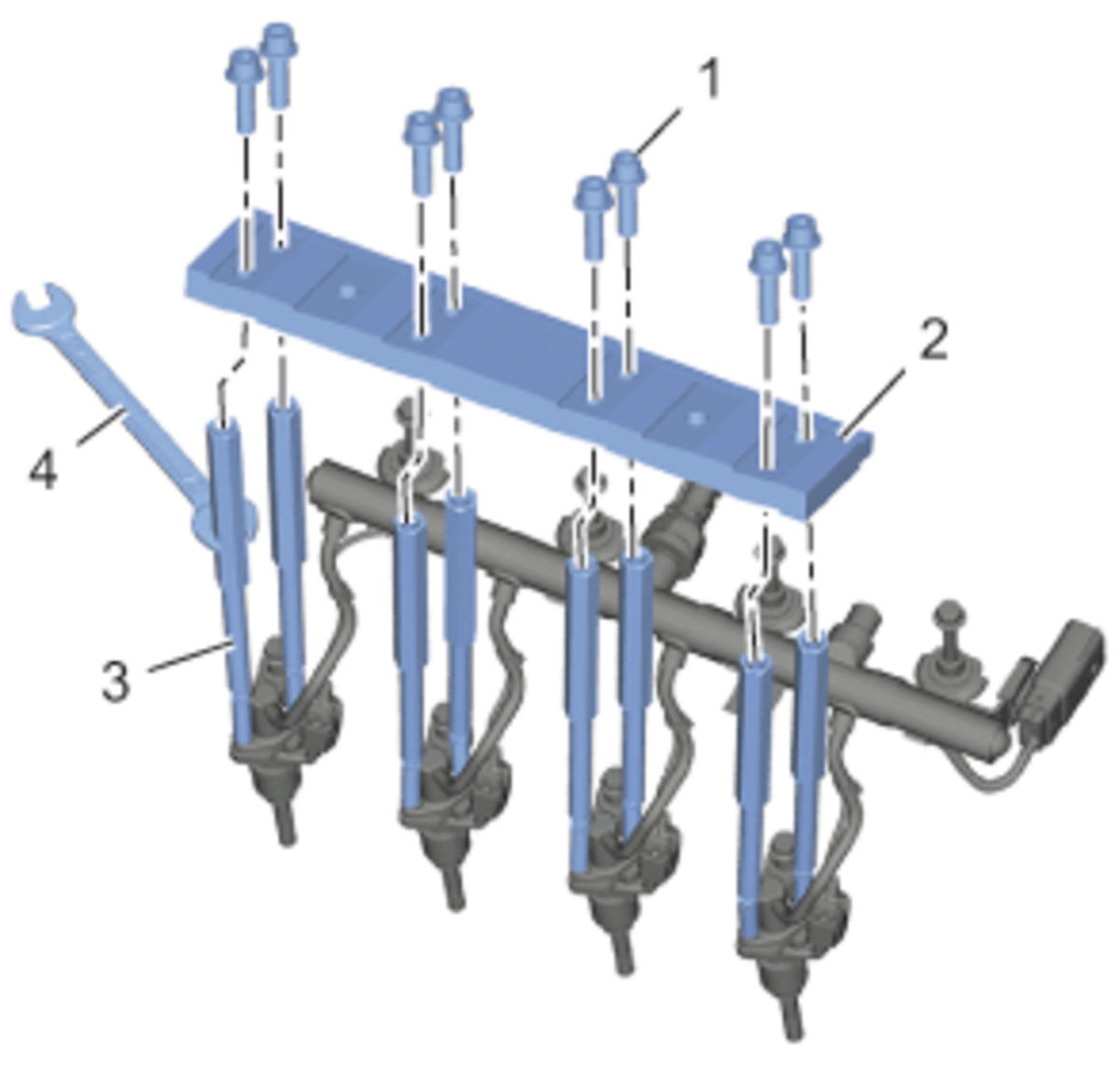

- Remove the 8 plate bolts (1) and remove EN-51146-1-2 plate (2), counterhold with a wrench (4) at the EN-51146-1-1 supports (3).
- Remove the regarding EN-51146-1-1 supports (3).

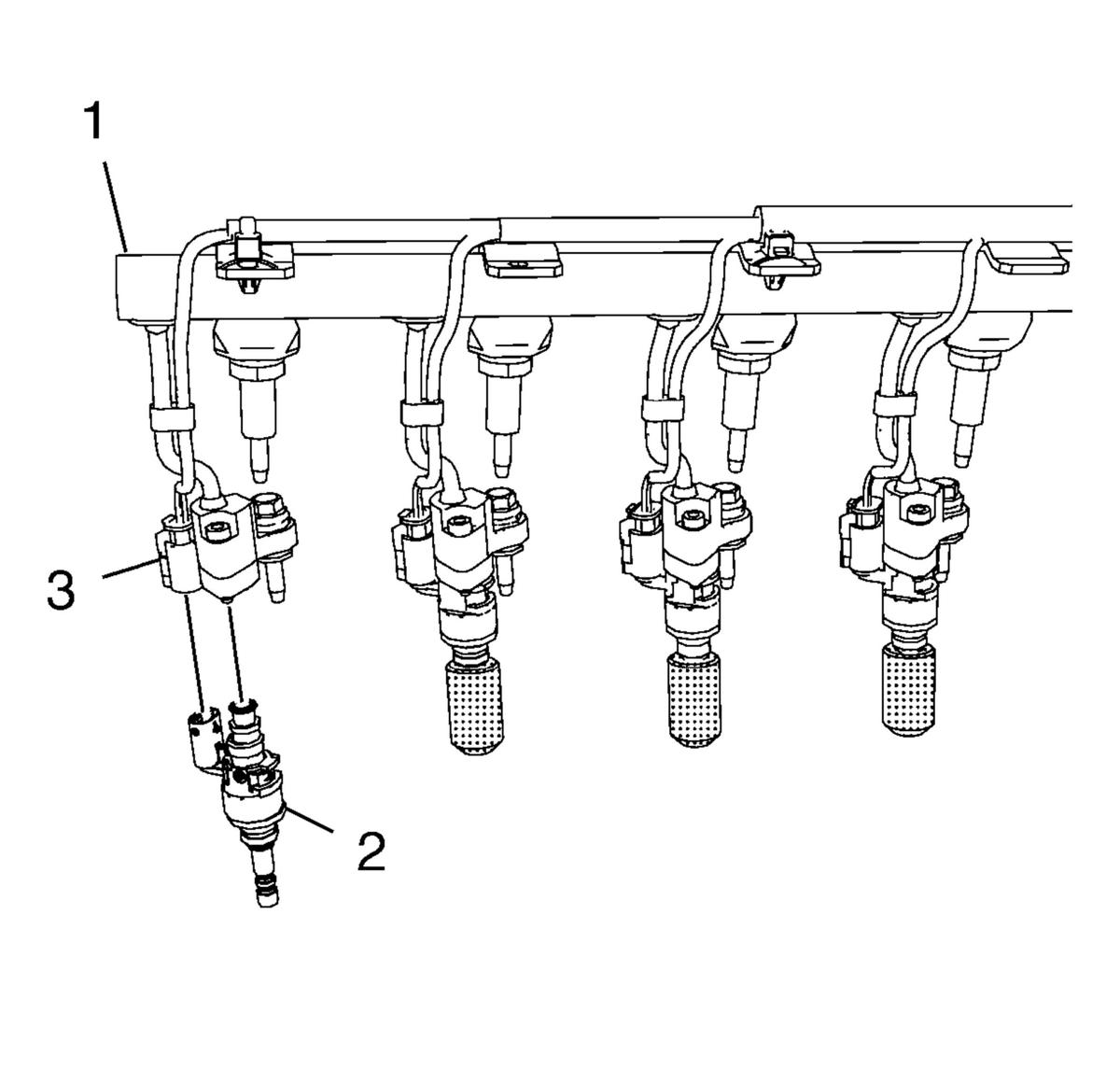

- Disconnect the regarding fuel injector wiring harness plugs (2).
- Remove the regarding fuel injectors (3) from fuel injection fuel rail (1).
NOTE:
The EN-51146-2-5 calibrations tools must be installed.
NOTE:
Remove only the EN-51146-1-1 supports (3) of the fuel injector or fuel injectors, which will be replaced. The EN-51146-1-1 supports must be installed at the injectors, which will be re-used. Failure to follow this caution could cause leaks or malfunction after installation.
