Mass Airflow Sensor Replacement

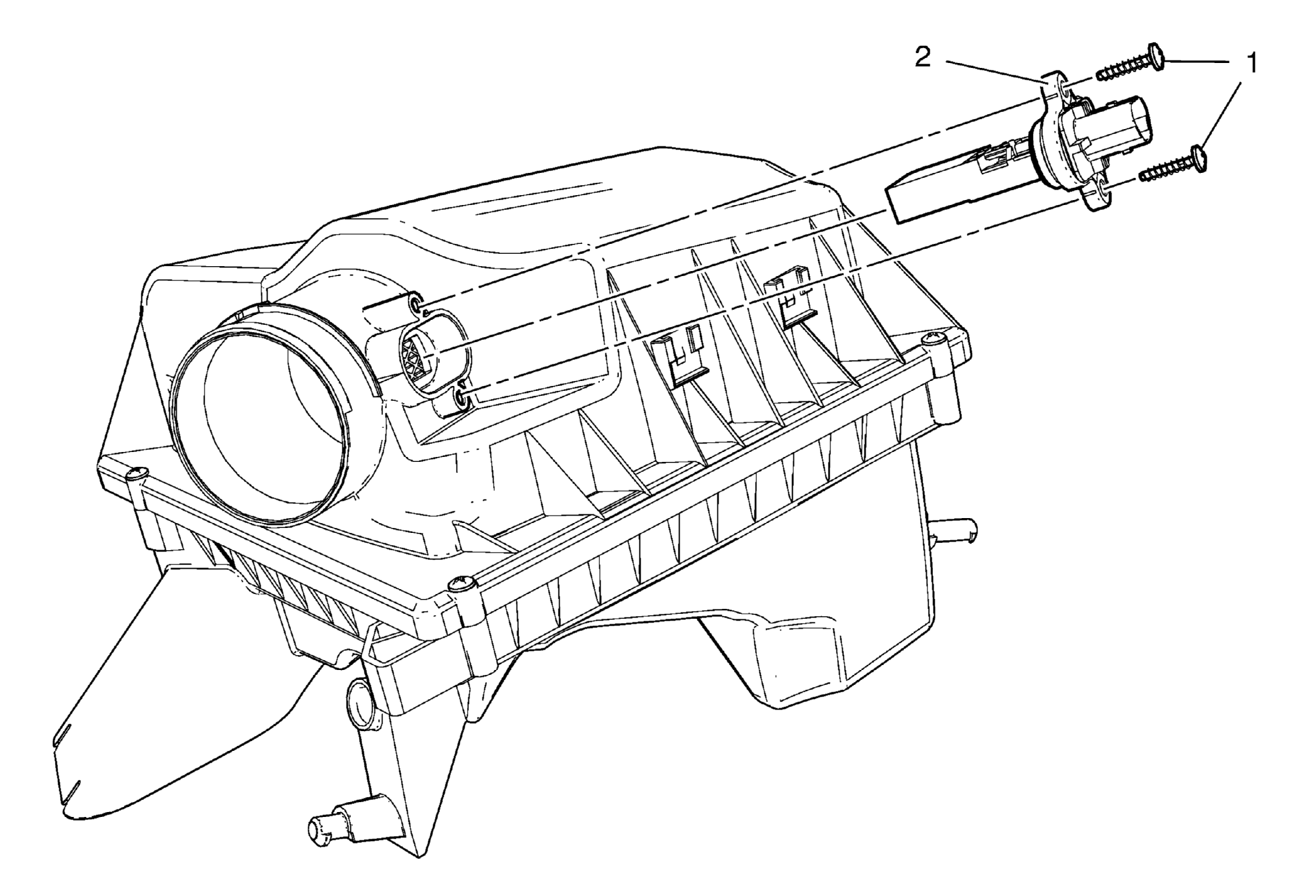

Fig 1: Mass Airflow Sensor
GM2191607Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Primelary Procedure
Disconnect the mass air flow sensor wiring harness connector.
1 Mass Air Flow Sensor Bolts (Qty :2)
CAUTION:

Refer to Fastener Caution .
2 Mass Air Flow Sensor
