Turbocharger Air Pressure Sensor Replacement

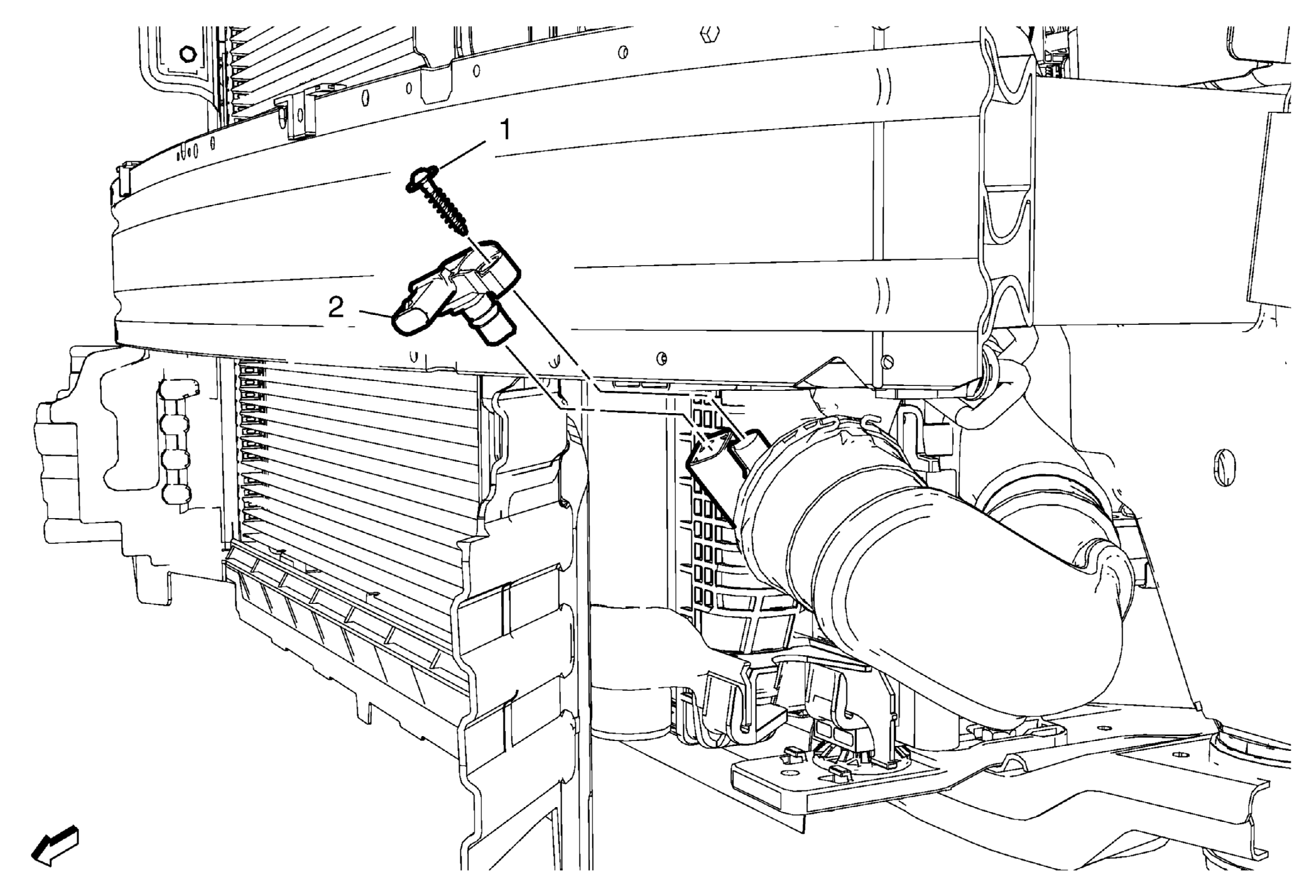

Fig 1: Turbocharger Air Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper. Refer to Front Bumper Fascia Replacement . Disconnect the electrical connection.
1	Turbocharger Air Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Turbocharger Air Pressure Sensor

Callout

Component Name

Preliminary Procedures

Turbocharger Air Pressure Sensor Bolt

CAUTION:

Tighten
6 N.m (53 lb in)

Turbocharger Air Pressure Sensor
