Data Communication Wiring Schematics
>>
High Speed CAN (1 of 3)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
High Speed CAN (1 of 3)

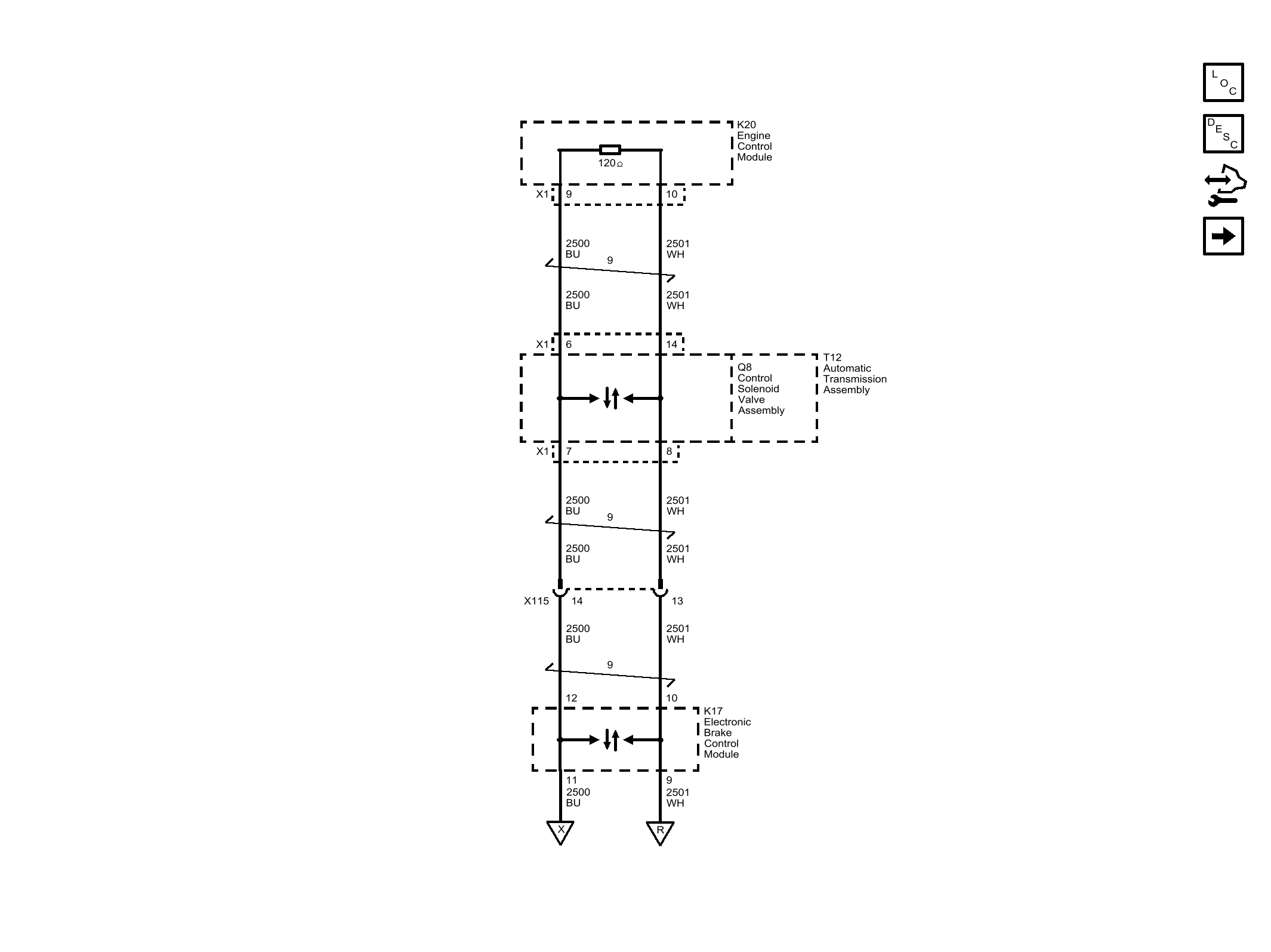

Fig 1: High Speed CAN (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
