Mode Control Cam Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

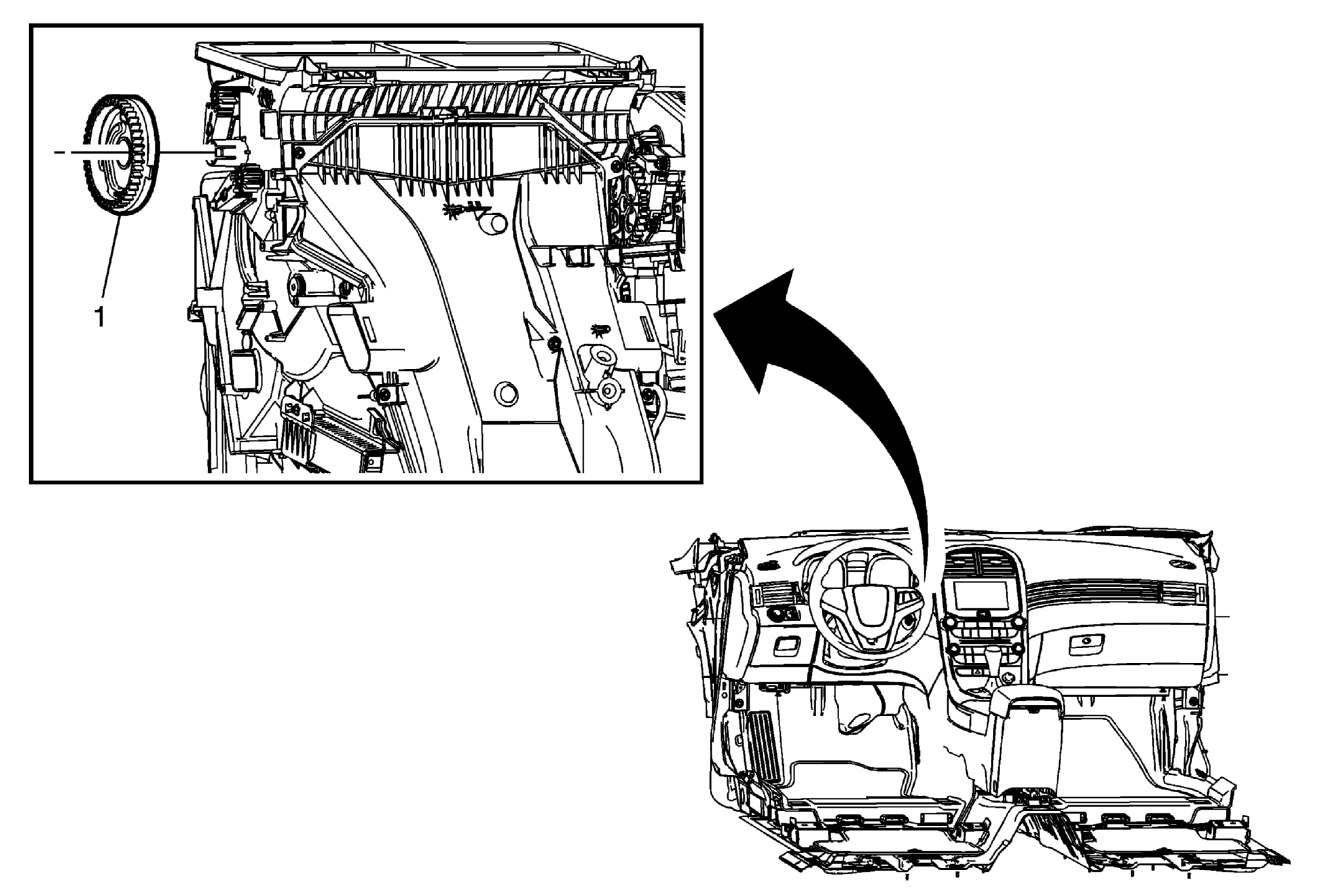

Fig 1: Mode Control Cam

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel tie bar assembly. Refer to Instrument Panel Tie Bar Replacement . Remove the mode valve actuator gear. Refer to Mode Valve Actuator Gear Replacement .
1	Mode Control Cam Procedure Release the tab in the center and pull off the control cam. NOTE: The mode control cam can only be fitted in one position.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel tie bar assembly. Refer to Instrument Panel Tie Bar Replacement .
Remove the mode valve actuator gear. Refer to Mode Valve Actuator Gear Replacement .

Mode Control Cam
Procedure
Release the tab in the center and pull off the control cam.

NOTE: The mode control cam can only be fitted in one position.
